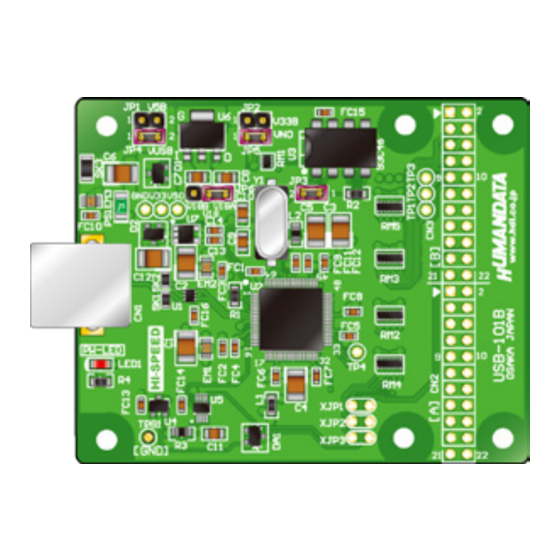

- Page 1 FT2232H Evaluation Board USB-101 User’s Manual HuMANDATA LTD.
-
Page 2: Table Of Contents
Table of Contents Revision History ....................1 Introduction ....................1 1. Specifications ..................... 2 2. Overview ......................3 2.1. Name of Parts .......................3 2.2. User Interface .......................4 2.3. Power Configuration ....................5 2.4. EEPROM Jumper (JP3) ..................5 2.5. Device Driver ......................5 3. - Page 3 HuMANDATA will revise the diagram. When a problem can be solved only by replacing components or modifying the product, HuMANDATA will take back the product to replace it with a properly functioning product.
-
Page 4: Revision History
Aug. 4, 2009 Initial release Introduction Thank you for buying our product USB-101. This is an evaluation board equipped with a FTDI FT2232H, power, reset, and crystal circuit and an EEPROM for device configuration. It can provide you with very convenient and easy-to-use environment. -
Page 5: Specifications
25 [g] typ. 22-pin through-hole x 2 User I/O Connectors dia. 0.9 [mm], 100[mil]/2.54 [mm] pitch DIL 44-pin header Accessories EEPROM : AT93C46D-PU (Blank) x 1 RoHS Compliance * There may be cases when compatible parts are used. USB-101 v1.0... -
Page 6: Overview
2. Overview 2.1. Name of Parts Power Circuit EEPROM (Socket) User Interface USB connector Type-B FT2232HL Power LED Reset Circuit Component Side USB-101 v1.0... -
Page 7: User Interface
BDBUS 7 / RI BCBUS2 / RD# BCBUS3 / WR BCBUS1 / TXE# BCBUS0 / RXF# POWEN# BCBUS4 / SI_WU RSTO# MRESET# VCCIO VCCIO RSTO# : USB-101 power-on reset signal output pin MRESET# : External reset signal input pin USB-101 v1.0... -
Page 8: Power Configuration
When used without the EEPROM (or the EEPROM is blank) the FT2232 defaults to dual asynchronous serial port device. 2.5. Device Driver The device driver is not attached. Please download and install the latest one from FTDI’s web site. http://www.ftdichip.com/ USB-101 v1.0... -
Page 9: Additional Documentation And User Support
3. Additional Documentation and User Support The following documents and other supports are available at http://www.hdl.co.jp/en/spc/USB/usb-101/ Circuit Schematic Dimensional drawing PCB drawing Net List … and more. USB-101 v1.0... - Page 10 FT2232H Evaluation Board USB-101 User’s Manual Ver. 1.0 ..........Aug. 4, 2009 HuMANDATA LTD. Address: 1-2-10-2F, Nakahozumi, Ibaraki Osaka, Japan ZIP 567-0034 Tel: 81-(0)72-620-2002 (Japanese) Fax: 81-(0)72-620-2003 (Japanese/English) URL: http://www.hdl.co.jp/en/ (Global) http://www.hdl.co.jp/ (Japan)
