- Page 1 FT4232H Evaluation Board USB-102 User’s Manual Ver. 1.1 HuMANDATA LTD.
-
Page 2: Table Of Contents
Table of Contents Revision History ....................1 Introduction ....................1 1. Specifications ..................... 2 2. Overview ......................3 2.1. Name of Parts .......................3 2.2. User Interface .......................4 2.3. Power Configuration ....................5 2.4. EEPROM Jumper (JP3) ..................5 2.5. Device Driver ......................5 3. - Page 3 HuMANDATA will revise the diagram. When a problem can be solved only by replacing components or modifying the product, HuMANDATA will take back the product to replace it with a properly functioning product.
-
Page 4: Revision History
Aug. 30, 2019 Correct: typos “2.2. User Interface” Introduction Thank you for buying our product USB-102. This is an evaluation board equipped with a FTDI FT4232H, power, reset, and crystal circuit and an EEPROM for device configuration. It can provide you with very convenient and easy-to-use environment. -
Page 5: Specifications
25 [g] typ. 16-pin through-hole x4 User I/O Connectors dia. 0.9 [mm], 100[mil]/2.54 [mm] pitch 2 DIL 32-pin header Accessories EEPROM : AT93C46D-PU (Blank) x 1 RoHS Compliance * There may be cases when compatible parts are used. USB-102 v1.1... -
Page 6: Overview

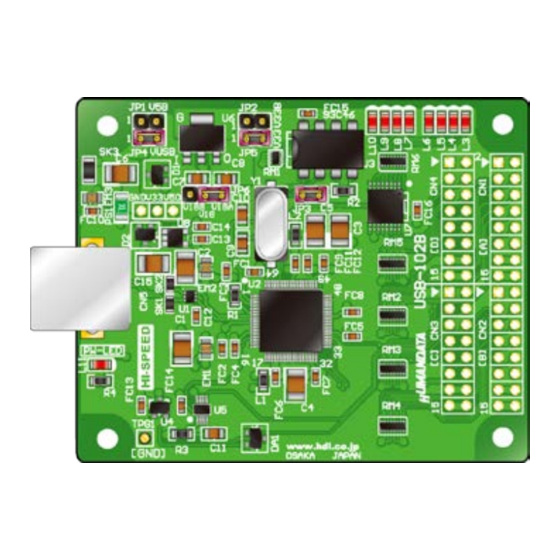

2. Overview 2.1. Name of Parts Power Circuit Tx/Rx status indicate LEDs EEPROM USB connector (Socket) Type-B User Interface Power LED FT4232HL Reset Circuit Component Side USB-102 v1.1... -
Page 7: User Interface
ADBUS5 / DSR ADBUS6 / DCD ADBUS7 / RI NRSTO# MRESET# VCCIO VCCIO RSTO# : USB-102 power-on reset signal output pin MRESET# : External reset signal input pin CN2 [Channel B] Signal Name Signal Name BDBUS0 / TXD BDBUS1 / RXD... -
Page 8: Power Configuration
When used without the EEPROM (or the EEPROM is blank) the FT4232 defaults to four asynchronous serial port device. 2.5. Device Driver The device driver is not attached. Please download and install the latest one from FTDI’s web site. https://www.ftdichip.com/ USB-102 v1.1... -
Page 9: Additional Documentation And User Support
3. Additional Documentation and User Support The following documents and other supports are available at https://www.hdl.co.jp/en/spc/USB/usb-102/ Circuit Schematic Outline drawing PCB drawing Net List … and more. USB-102 v1.1... - Page 10 FT4232H Evaluation Board USB-102 User’s Manual Ver. 1.1 ........... Aug. 30, 2019 HuMANDATA LTD. Address: 1-2-10-2F, Nakahozumi, Ibaraki Osaka, Japan ZIP 567-0034 Tel: 81-72-620-2002 (Japanese) Fax: 81-72-620-2003 (Japanese/English) URL: https://www2.hdl.co.jp/en/ (Global) https://www.hdl.co.jp/ (Japan)
