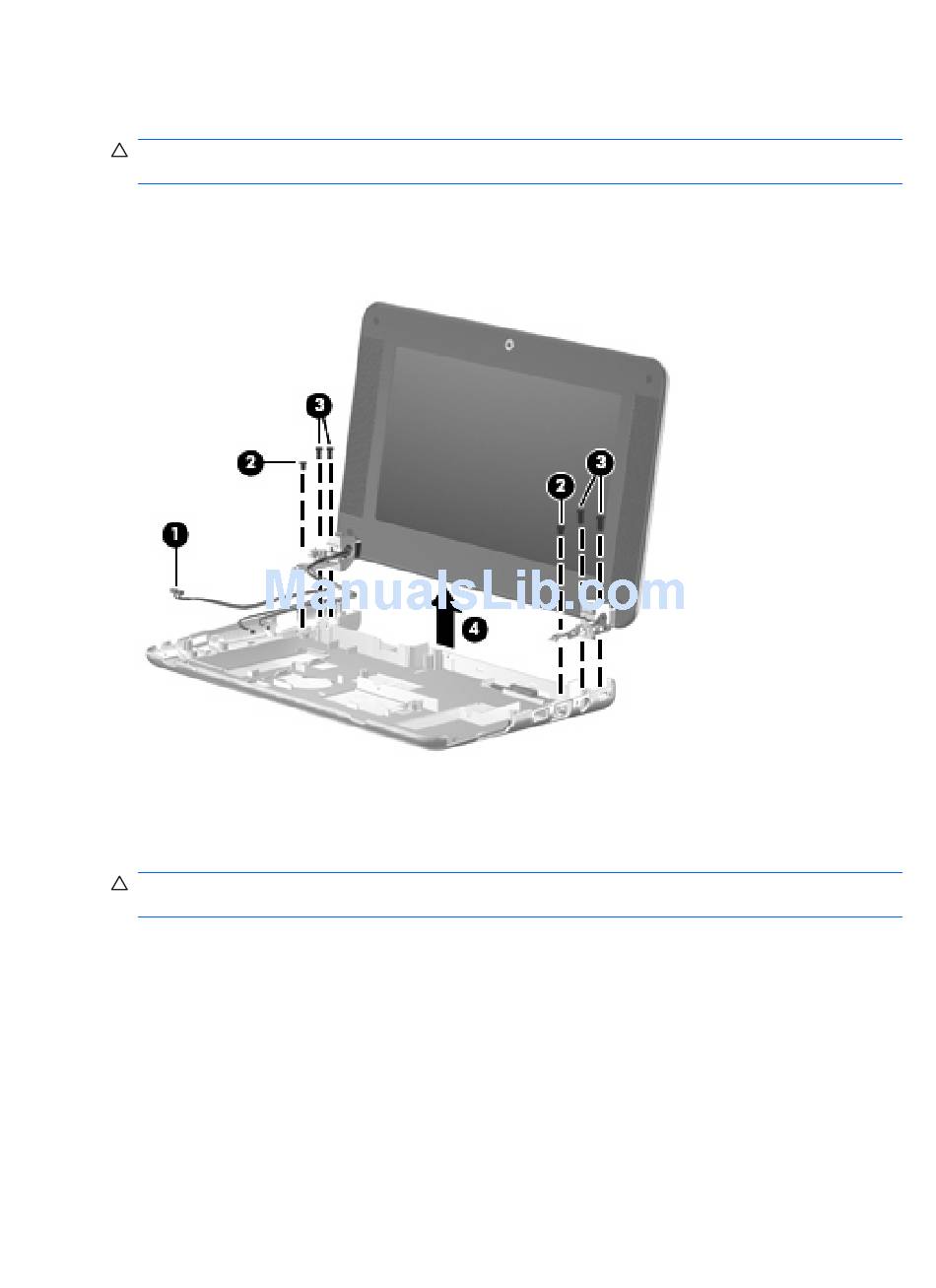

To remove the display assembly for model 2133:
1.
Remove the wireless antenna cables (1) from the clips and routing channels built into the base
enclosure.
CAUTION:
To prevent damage to the display assembly, support it before removing the screws.
2.
Remove the two T8M2.5×5.0 screws (2) and the four Torx8 T8M2.5×10.0 screws (3) that secure
the display assembly to the computer.
3.
Lift the display assembly (4) straight up and remove it.
To remove the display assembly for model 2140:
1.
Remove the wireless antenna cables (1) from the clips and routing channels built into the base
enclosure.
CAUTION:
To prevent damage to the display assembly, support it before removing the screws.
2.
Remove the four silver Phillips PM3.0×3.0 screws (2), the silver Phillips PM 4.5×8.0 screw (3), and
the black Phillips PM 2.0×8.0 screw (4) that secures the display assembly to the computer.
72
Chapter 4 Removal and replacement procedures
The display assembly will be unsupported when the following screws are removed.
The display assembly will be unsupported when the following screws are removed.
