Remove the keyboard:
1.

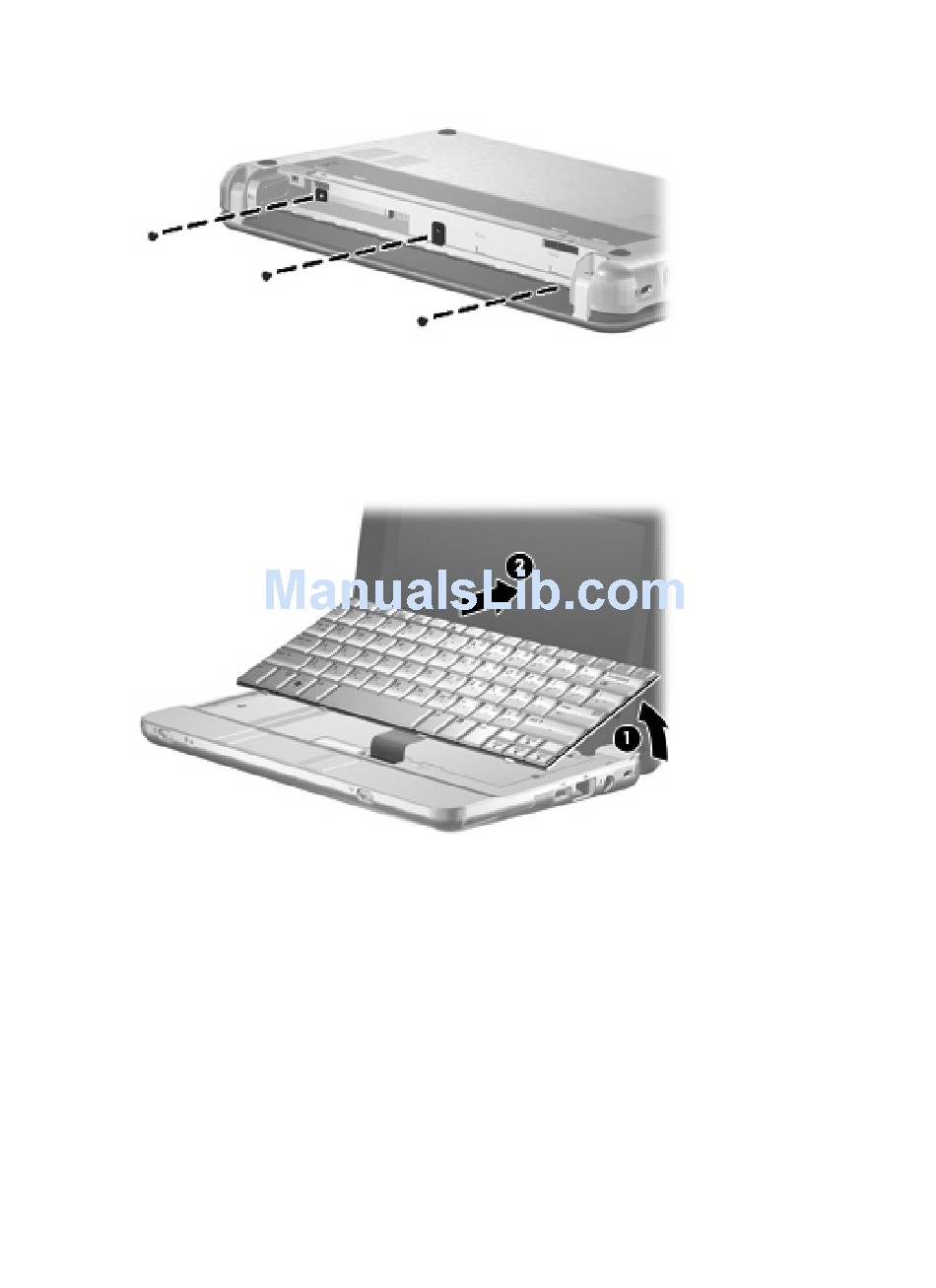

Remove the three Phillips PM2.0×3.0 screws that secure the keyboard to the computer.
2.
Turn the computer display-side up, with the front toward you.
3.
Open the computer as far as possible.
4.
Lift the rear edge of the keyboard (1) until it rests at an angle, and then slide it back (2) until it rests
on the display assembly.
46
Chapter 4 Removal and replacement procedures
