Audio board (Model 2133 only)

NOTE: The audio board is available only for model 2133. Audio is integrated into the model 2140
system board.
Description
Audio board for use only in computer models with WXGA displays
Audio board
Before removing the audio board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
5. Remove the following components:
a. Keyboard (see
b. Hard drive or solid-state drive (see
c. Top cover (see

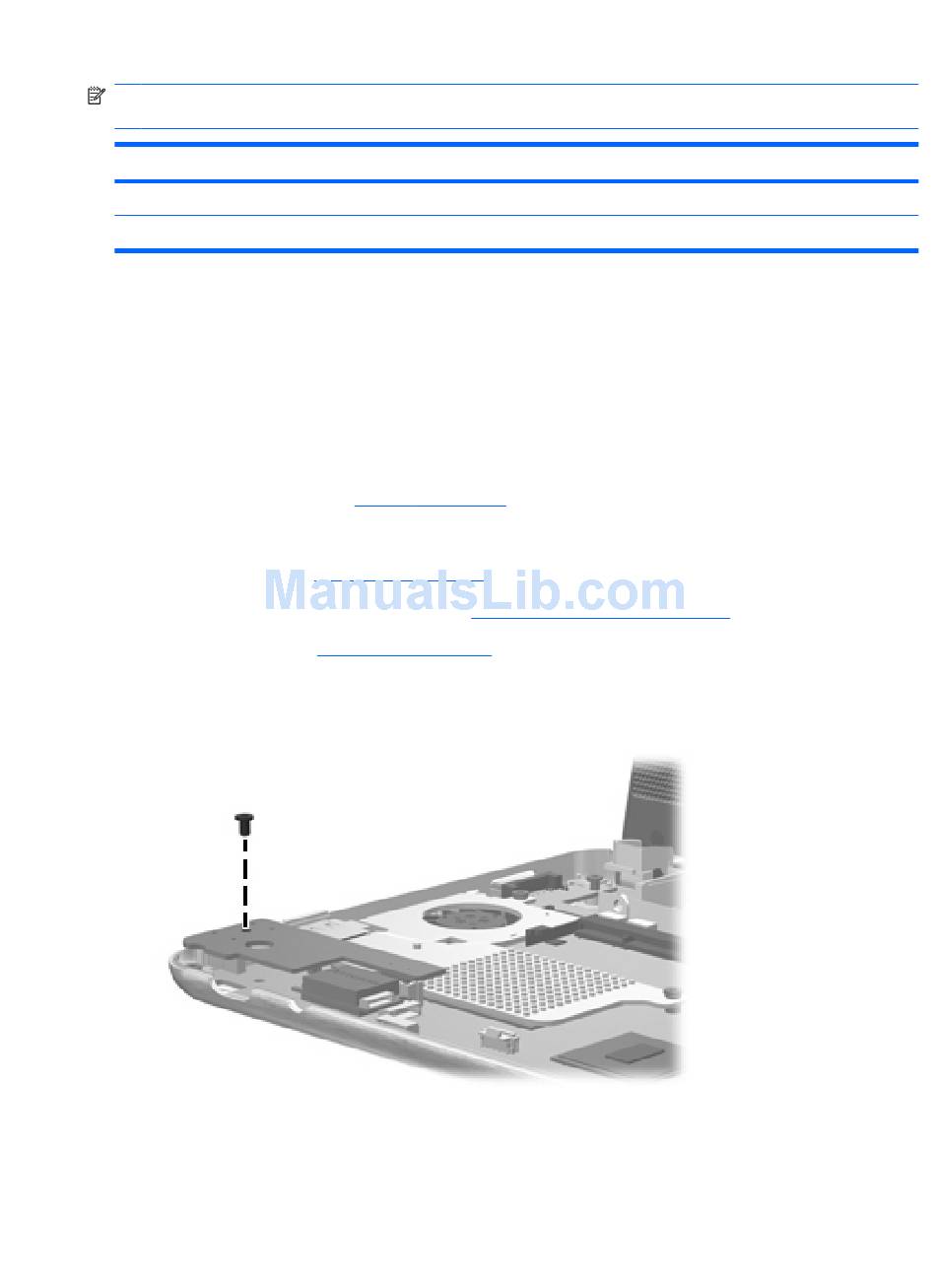

Remove the audio board:
1. Remove the Torx8 T8M2.0×6.0 screw that secures the audio board to the computer.
2. Lift the audio board (1) to disconnect the audio board connector (2) from the system board.
Battery on page 44).
Keyboard on page 45)
Mass storage device on page
Top cover on page 52)
Spare part number
482274-001
505907-001
49)
Component replacement procedures 55
