4.

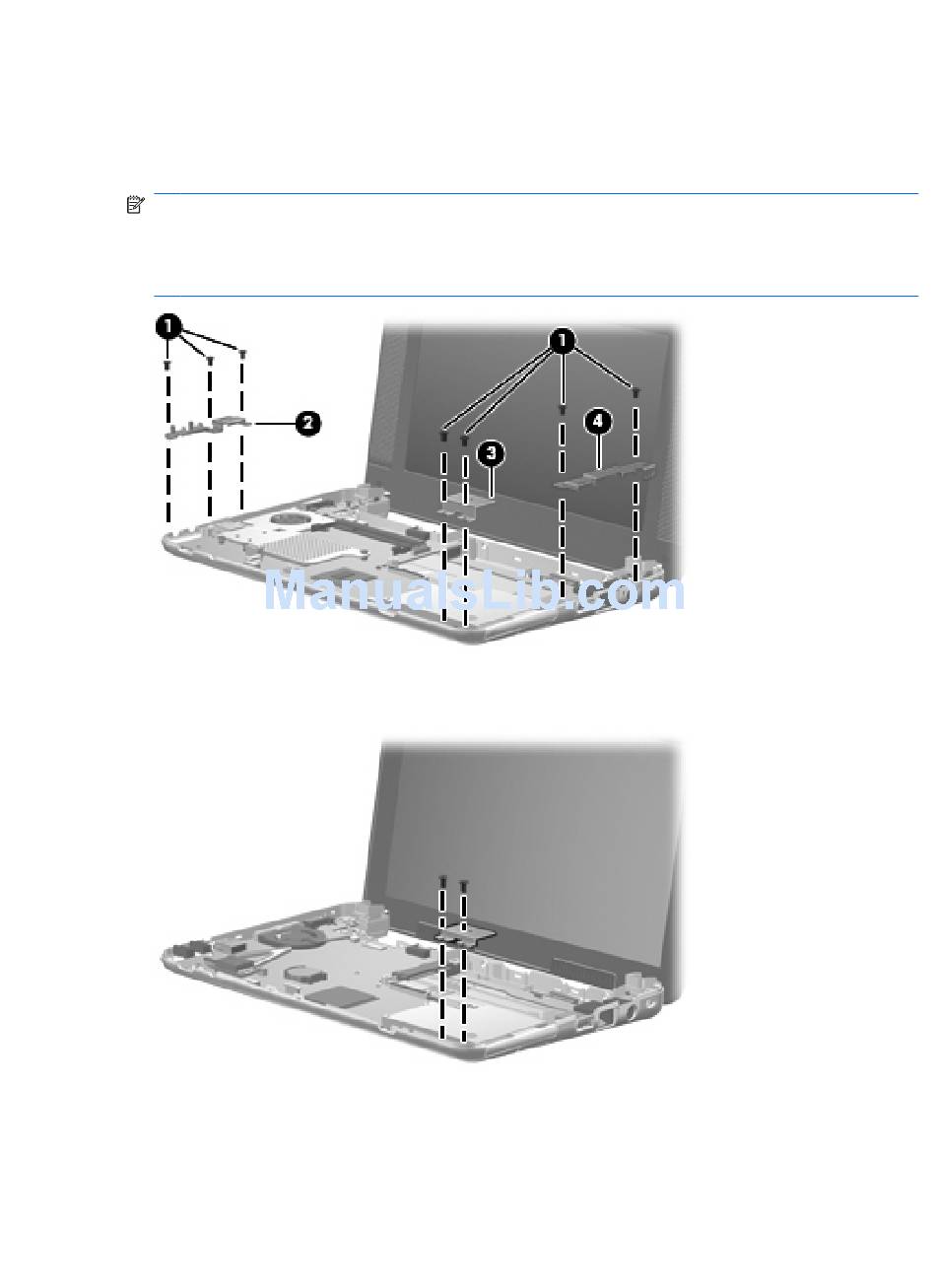

Remove the following brackets:
(2) (Model 2133 only) Audio/USB connector bracket
(3) (Model 2133 and 2140) ExpressCard assembly bracket
(4) (Model 2133 only) USB/RJ-45 connector bracket
NOTE:
For model 2133 only, the audio/USB connector bracket, ExpressCard assembly bracket,
and USB/RJ-45 connector bracket are included in the Bracket Kit, spare part number 482266-001.
NOTE:
For model 2140, the ExpressCard assembly bracket is included in the Plastics Kit, spare
part number 511751-001.
5.
If you have model 2133, go to step 6. For model 2140, remove the two Torx8 T8M2.0×6.0 screws
that secure the system board and the ExpressCard assembly bracket to the base enclosure.
6.
Flex the right side of the base enclosure (1) until the USB connector and RJ-45 jack (2) are clear
of the base enclosure.
Component replacement procedures
61
