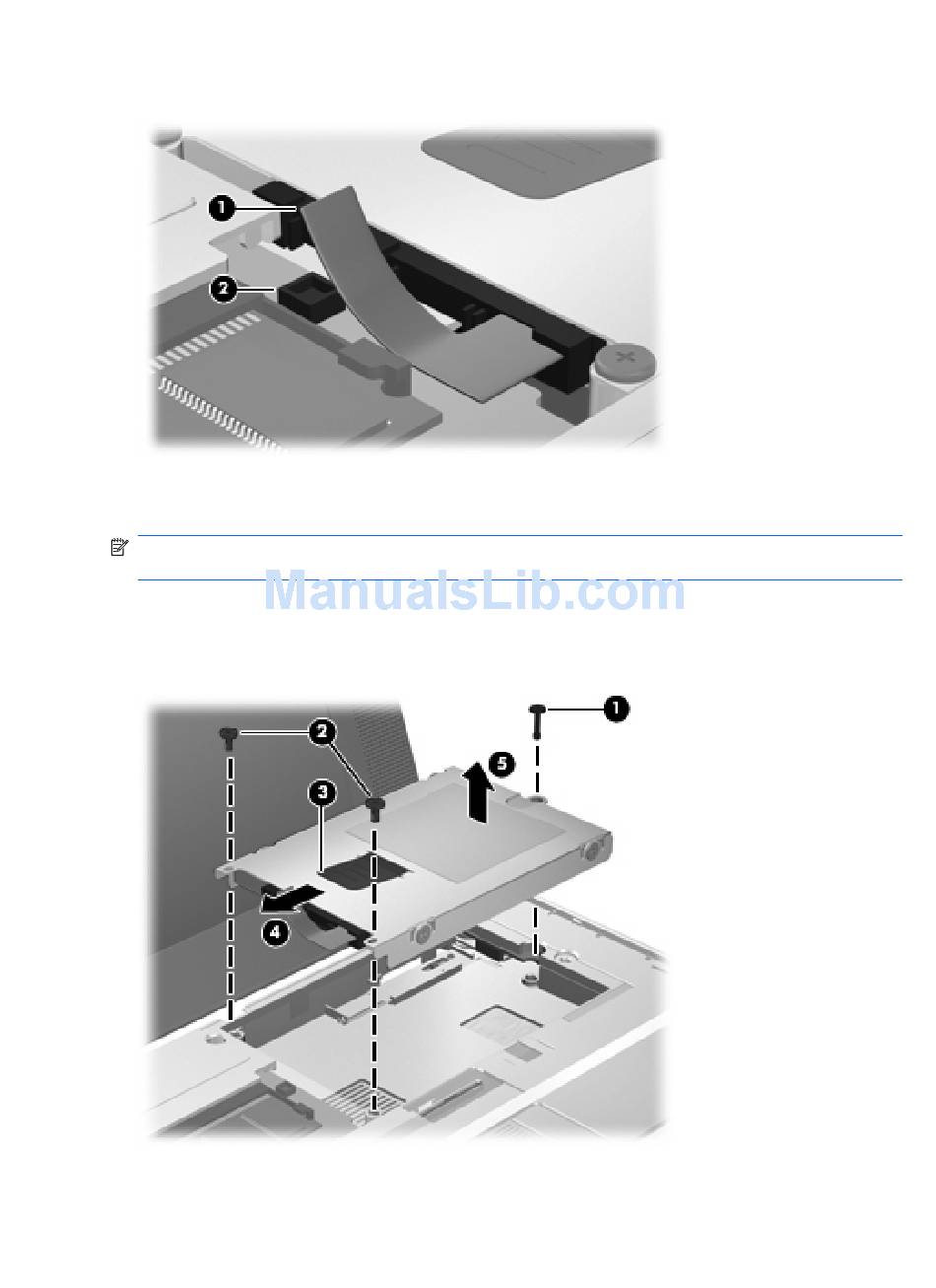

If you have model 2133, remove the hard drive or solid-state drive:
1.
Disconnect the drive cable (1) from the connector on the system board (2).
2.
Remove the Phillips PM2.0×5.0 screw (1) and the two PM2.0×5.0 screws (2) that secure the drive
to the computer.
NOTE:
drives.
3.
Grasp the Mylar tab (3) on the drive and slide the drive (4) to the left to release it from the drive
bay.
4.
Remove the drive (5) from the drive bay.
50
Chapter 4 Removal and replacement procedures
The screw highlighted by callout (1) is captive in hard drives, non-captive in solid state
