Samcon ExCam miniTube IP User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®
ExCam
miniTube IP
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ExCam miniTube IP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Samcon ExCam miniTube IP

Summary of Contents for Samcon ExCam miniTube IP

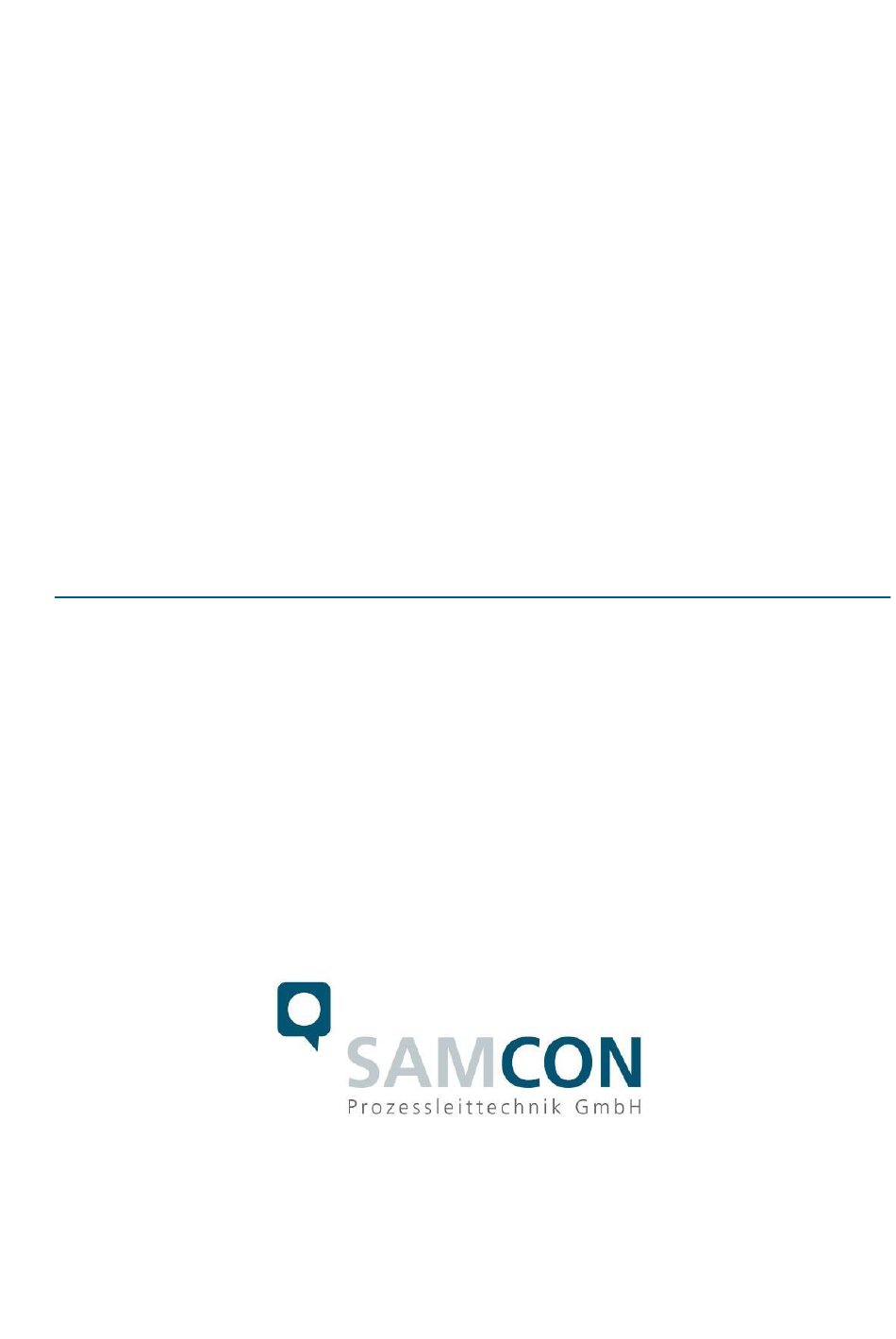

  • Page 1 ® ExCam miniTube IP User Manual...

  • Page 2: Table Of Contents

    Table of contents Introduction ......................4 Technical data ......................4 Explosion protection .................... 4 Illustration of the model key ................. 5 Electrical parameters of the camera ..............6 Connection cable Ex-d - Ex-e (SKD02-T/ASKD02-T) .......... 6 Video-technical characteristics ................7 Other technical data ....................
  • Page 3 Figure 2-2 Sectional view of ASKD02-T ................7 Table 2-2 Other technical data ..................7 Table 4-1 Mounting accessories ..................10 Figure 5-1 ExCam miniTube IP Potential equalization ............ 11 Table 5-1 Potential equalization ..................12 Figure 5-2 Ex-d Cable gland and cable ................12 Figure 5-3 ExCam miniTube IP T08-VA1.2.K1.BOR-N.N-xxx.x-T ........

  • Page 4: Introduction

    Introduction The ExCam miniTube IP is a compact, powerful IP camera with motorized varifocal lens. It is certified by ATEX, IECEx and more. The camera has a high-definition television reso- lution (1920x1080) and is equipped with a 1/2.8“ CMOS sensor for great image quality and incomparable light sensitivity.

  • Page 5: Illustration Of The Model Key

    N.N - 005.A- 22070530 Table 2-1 Model key Explanations: ExCam miniTube IP = Functional camera description of the ExCam Series (technical data/ specification of the individual camera module) T08 = SAMCON Production- Type 08 VA1.2.K1.BOR = T07 ex d housing (stainless steel 1.4404) with small diameter Ø...

  • Page 6: Electrical Parameters Of The Camera

    4 x D after relocation Data line: 4 x 2 x AWG23/1 CAT.6 Properties: PUR halogen-free, flame-retardant, UV-re- sistant, chemical resistance, shielded Quick link: https://www.samcon.eu/fileadmin/documents/en/60-Assembling%26mounting/SKD02-T_Datasheet.pdf Figure 2-1 Sectional view of SKD02-T Doc.-ID: 240307-PT08BA-ES-ExCam miniTube IP_en_rev.00.docx, Page 6 of 32...

  • Page 7: Video-Technical Characteristics

    PUR halogen-free, flame-retardant, UV-re- sistant, chemical resistance, shielded (see www.samcon.eu Quicklink: https://www.samcon.eu/fileadmin/documents/en/60- Assembling%26mounting/ASKD02-T_Datasheet.pdf Figure 2-2 Sectional view of ASKD02-T Video-technical characteristics We use the eneo Module Network Camera in a pressure-resistant enclosure. For details, ® please refer to the Product Documentation, video-technical data of eneo https://eneo-security.com/en/ism-72m2713w0a.html...

  • Page 8: Safety Instructions

    Please absolutely observe the installation instruction’s safety di- rections of the T08 ExCam series! Quick link: https://www.samcon.eu/fileadmin/documents/en/22-Ex-Network-Cameras/ExCam-Series-T08-EX-Installation-Manual-2020.pdf It is absolutely mandatory to adhere to the national safety regulations and regula- tions for prevention of accidents, as well as to the safety instructions given below...

  • Page 9: Installation

    Installation For commissioning and operating the camera, the relevant national regulations, as well as the generally accepted rules of technology shall prevail. Before mounting the camera, thor- oughly check it for any transport damage, especially on the housing and cable. Installation, electrical connection and the first start must only be carried out by qualified specialists.
  • Page 10 Drawings for drill hole patterns and further information can be viewed on our product page: Quick link: https://www.samcon.eu/en/products/network/excam-minitube-ip/ Optional mounting accessories WALL MOUNT WMB-VA0.x/1.x Wall bracket Wall bracket for cameras of the T08-VA1.x-Series WMB-... Suitable for hanging the cameras on walls.

  • Page 11: Electrical Connection

    NOT authorised to do electrical connection procedures inside the pressure-resistant enclosure. Potential equalization Figure 5-1 ExCam miniTube IP Potential equalization Potential equalization/grounding of the camera housing is absolutely necessary, in order to avoid static charges and thus the formation of sparks. For this purpose, a screw terminal is provided at the rear side, at the bottom (right) (see Figure 5-1).

  • Page 12: Connection Work At The Device (Terminal Box) And Fuses

    Typical power consumption: 3.0 W The figures 5.3 and 5.4 illustrate the potential cable terminations of the ExCam miniTube IP. Possible terminations are: terminal box or plug. Figure 5-3 ExCam miniTube IP T08-VA1.2.K1.BOR-N.N-xxx.x-T Doc.-ID: 240307-PT08BA-ES-ExCam miniTube IP_en_rev.00.docx, Page 12 of 32...
  • Page 13 Adhere to attached separate User Manual for the Ex-e terminal box. Video Tutorial: Observe our video tutorial: “SAMCON 01 Wiring the cable SKDP03-T to the junction box ExTB-3” https://go.samcon.eu/v01 Figure 5-5 Video Tutorial ExTB-3 Doc.-ID: 240307-PT08BA-ES-ExCam miniTube IP_en_rev.00.docx, Page 13 of 32...
  • Page 14 The pin assignment of the SKD02-T is executed in accordance with the standard EIA/TIA- 568B as follows: Camera (Ex-d) Colour Terminal Cross-sec- Comment (T568B) SKD02-T ExTB-2 tional sur- face (IEC60757) WH / OG 0.26 mm Solid conductor 0.26 mm Solid conductor WH / GN 0.26 mm Solid conductor...
  • Page 15 SKD02-T SKD02-T ExCam miniTube IP Figure 5-6 Sample circuit of terminal box ExTB-2 Figure 5.7 – Connection to the terminal box Doc.-ID: 240307-PT08BA-ES-ExCam miniTube IP_en_rev.00.docx, Page 15 of 32...

  • Page 16: External Connection And Protection

    Bring the twisted pair composite up to about 10 mm close to the termi- nals, in order to ensure interference immunity. Attention! Use only terminals approved by SAMCON. Attention! Finally, check your network installation with a Class-D Link Test. External connection and protection There are several options of routing the ExTB-2 terminal box to a safe area: 5.3.1...

  • Page 17: Routing Via Exconnection Rail (Optional Accessories)

    Attention! Cables and wires must comply with the requirements of the IEC 60079- 0/1/7 & 14. Attention! The supply line must have a sufficient cross-section. The cable protec- tion must comply with national and international regulations. 5.3.2 Routing via ExConnection Rail (optional accessories) Figure 5-9 ExTB-2 ->...

  • Page 18: Appropriate Cables & Cable Entries

    Perhaps our video will help you: "Cables for flameproof devices in potentially explosive atmospheres" http://go.samcon.eu/video-cable-ex Figure 5-10 Ex-d cable selection Particularly for installations requiring a suitable barrier gland, make sure that you handle them correctly and observe the rules and notes given in the respective mounting and as- sembly instructions.

  • Page 19: Fusing

    We show the essential procedures in the following video tutorial: Video Tutorial: Please note our video tutorial: “SAMCON 02 Mounting and installing Ex-d barrier glands to ExConnection Rails” https://go.samcon.eu/v02 Figure 5-11 Barrier gland 5.3.4 Fusing PoE power supply requires no fuses. The power supply fusing depends on the cable cross- section and length.

  • Page 20: Plug Assignments (Rj45)

    5.3.5 Plug assignments (RJ45) The data transfer of the ExCam miniTube IP uses a 100 Mbit/s Ethernet connection (100BASE-TX). If the cable termination uses a plug, the latter should be plugged into the RJ45 PoE slot of the network device (PSE). Prior to connecting it to the camera, the net- work device (PSE) can already be supplied with power, hence there is no „power ON“...

  • Page 21: Tests Prior To Switching On Voltage

    5.3.6 Tests prior to switching on voltage Attention! Prior to starting the device, perform all tests as indicated by the national regulations. Furthermore, check the correct function and installation of the device in accordance with this User Manual and other applicable regulations.

  • Page 22: Working Inside The Camera Housing (Ex-D)

    Pay attention not to damage the housing seals. Keep them clean! If the ExCam miniTube IP is equipped with a weather protection roof this has to be removed prior to starting your work! To do so, loosen the 4x12mm button head screws M4*0.7 at the front and rear sides of the bracket holders (Figure 6-1).
  • Page 23 Figure 6-1 Removing the weather protection roof To open the stainless-steel housing (T07 VA1.2.x.x) of ExCam miniTube IP, loosen the eight cylinder-head hexagon screws (DIN 912/ ISO 4762) together with their spring rings (DIN 127A) on the rear side of the cable and power supply flange (see Figure 6-2). Caution: do not touch the screw threads with your skin or clothes! On the threads, there is LOC- TITE®...

  • Page 24: Hardware Reset

    Pay attention not to damage the housing seals. Keep them clean! Hardware Reset To set all the parameters of the ExCam miniTube IP (including the IP address) to default values, you should run a hardware reset. The parameters can be reset via the web interface or manually. If the camera placed in the network can no longer be reached or its state is uncontrollable, the reset should be per- formed manually.

  • Page 25: Closing Of The Pressure-Resistant Housing

    Reset Button Figure 6-3 Structure of the camera Closing of the pressure-resistant housing For closing the housing, proceed in reverse order as when opening. Use exclusively origi- nal screws included in the supply. The cable and power-supply flange (K1) is fixed by 8 cylinder-head screws M4*0.7 (ISO metric right-turning) with 12 mm thread length (DIN 912/ ISO 4762, grade 6g).
  • Page 26 cylinder head or over-stretching the threads, and thus to impairment of the pressure re- sistance or ignition protection class Cylinder-head bolts for explosion-proof connection of the camera body with the flange component must always be tightened at a 3 Nm torque - crosswise and evenly! Use Loctite.

  • Page 27: Network Access And Visualization

    The eneo Site Manager automatically detects cameras present in the network and displays their IP addresses in a device list. The ExCam miniTube IP has the designation “ISM-72M2713W0A”. If necessary, you can also assign a static IP address to the camera. To do this, select the camera in the list, right-click to open the context menu and then the network settings.
  • Page 28 234669_en_short_man.pdf (eneo-security.com) 234669_en_man.pdf (eneo-security.com) When delivered the ExCam miniTube IP is set to the applicable network frequency. PAL = 50Hz (Europe) / NTSC = 60Hz (USA) Doc.-ID: 240307-PT08BA-ES-ExCam miniTube IP_en_rev.00.docx, Page 28 of 32...

  • Page 29: Visualization, Rtsp Video Stream

    Visualization, RTSP video stream The camera's video stream can be visualized via the following addresses: RTSP rtsp://<user>:<password>@<ip>:554/1/stream1 rtsp://<user>:<password>@<ip>:554/1/stream2 rtsp://<user>:<password>@<ip>:554/1/stream3 Example: rtsp://admin:admin@192.168.1.10:554/1/stream1 JPG (Stream 3) http://<ip>/cgi-bin/snapshot.jpg MJPG (Stream 3) http://<ip>/cgi-bin/jpegpush.cgi ONFIV, VMS-Integration The camera can be integrated into your video management system (VMS) via ONVIF Pro- file S and Profile T.

  • Page 30: Maintenance / Modification

    (e.g., proper condition of the casing, seals and cable entry points). If maintenance measures are necessary they have to be initiated and/or executed. Repairs may only be carried out with original parts of SAMCON Prozessleittechnik GmbH. Damaged pressure-resistant housings have to be replaced completely. In case of doubt, send the part in question back to SAMCON Prozessleittechnik GmbH.
  • Page 31 If you wish additional technical information, please contact us at: support@samcon.eu Doc.-ID: 240307-PT08BA-ES-ExCam miniTube IP_en_rev.00.docx, Page 31 of 32...
  • Page 32 Schillerstrasse 17, 35102 Lohra-Altenvers, Germany www.samcon.eu, info@samcon.eu Phone: +49 6426 9231-0, fax: - 31...
