9. Appendix – Additional Operational Examples

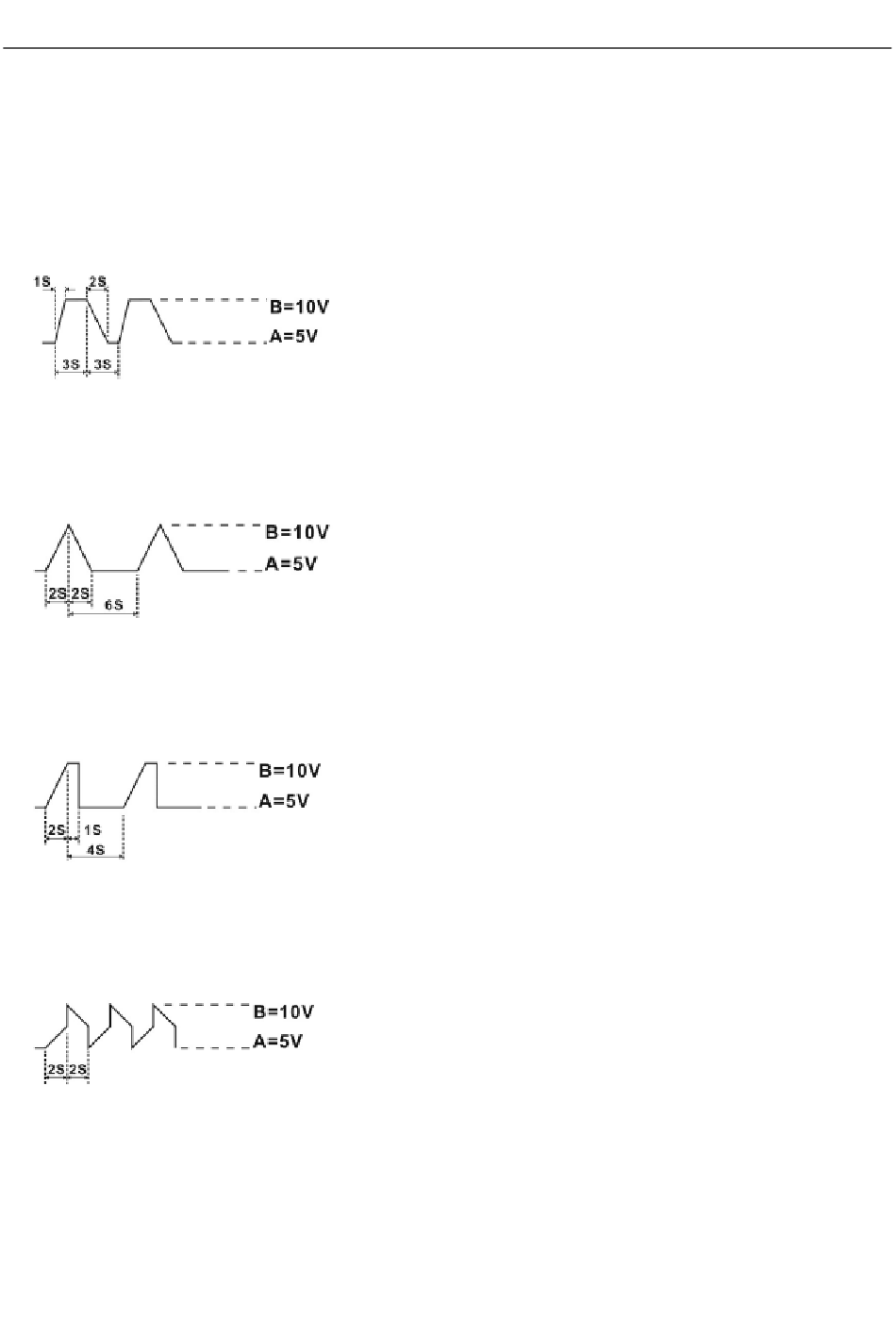

Examples of Func A/B/C and Wave Form Generator Features
These examples are continued from Examples 1 and 2 in Section 6.2 earlier in this guide.
Example 3 ‐ Irregular waveform
Set A= 5V, B= 10 V
Set Δt a‐b = 1 second, Set Δt b‐a = 2 seconds
Set Func. A = 3 seconds, Set Func.B = 3 seconds
Example 4 ‐ Irregular waveform
Set A= 5V, B= 10 V
Set Δt a‐b = 2 second, Set Δt b‐a = 2 seconds
Set Func. A = 2 seconds, Set Func.B = 6 seconds
Example 5 ‐ Irregular waveform
Set A= 5V, B= 10 V
Set Δt a‐b = 2 second, Set Δt b‐a = 0 seconds
Set Func. A = 4 seconds, Set Func.B = 3 seconds
Example 6 ‐ Irregular waveform
Set A = 5V, B = 10 V
Set Δt a‐b = 4 second, Set Δt b‐a = 4 seconds
Set Func. A = 2 seconds, Set Func .B = 2 seconds
