POWER ON THE SYSTEM

After preparing the hardware and installing the software, the EVAL-
ADPD6000Z is ready to power on.
POWER ON–CABLE CONNECTION
Connect the USB to Type-C cable from the PC to J5 on the
EVAL-VSMUCZ to power on the EVAL-VSMUCZ automatically. The
two indicator lights on the EVAL-VSMUCZ (DS1 and DS4) turn on.
If the S1 switch labeled in Figure 13
charged by the PC. Figure 13

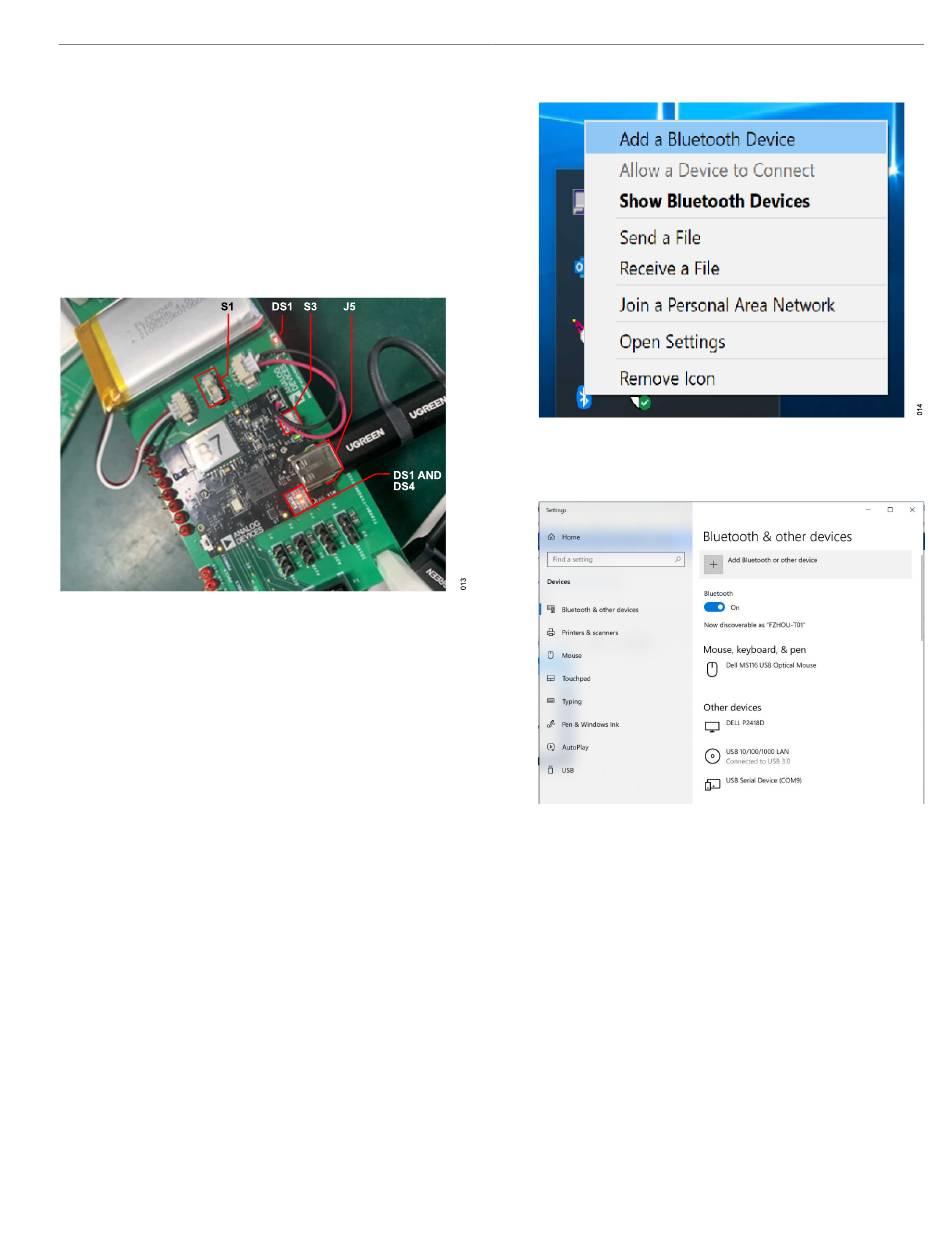

Figure 13. Cable Connection
POWER ON–BLUETOOTH CONNECTION
Take the following steps to power on the system without the USB
cable:
1. On the EVAL-VSMUCZ, set the S1 switch labeled in
to on. The standalone DS1 indicator LED labeled in
turns on.
2. Press (for about two seconds) the S3 button on the EVAL-
VSMUCZ to power on the system. The two indicator lights on
the EVAL-VSMUCZ (DS1 and DS4) turn on.

ADD DEVICE VIA BLUETOOTH

Take the following steps to add the EVAL-VSMUCZ via Bluetooth
(these steps are shown using Windows
1. Click the Bluetooth Devices icon in the system tray and select
Add a Bluetooth Device (see
analog.com
is set to on, the battery is
shows the cable connection.
Figure 13
Figure 13
®
10):
Figure 14).
EVAL-ADPD6000
Figure 14. Add a Bluetooth Device
2. The Settings window opens (see
& other devices, click Add Bluetooth or other device.
Figure 15. Add Bluetooth Device from Settings Window
3. The Add a device window opens (see
Bluetooth.
Figure 15). Under Bluetooth
Figure 16). Select
