PREPARATION AND SETUP

EVAL-ADPD6000Z COMPONENTS

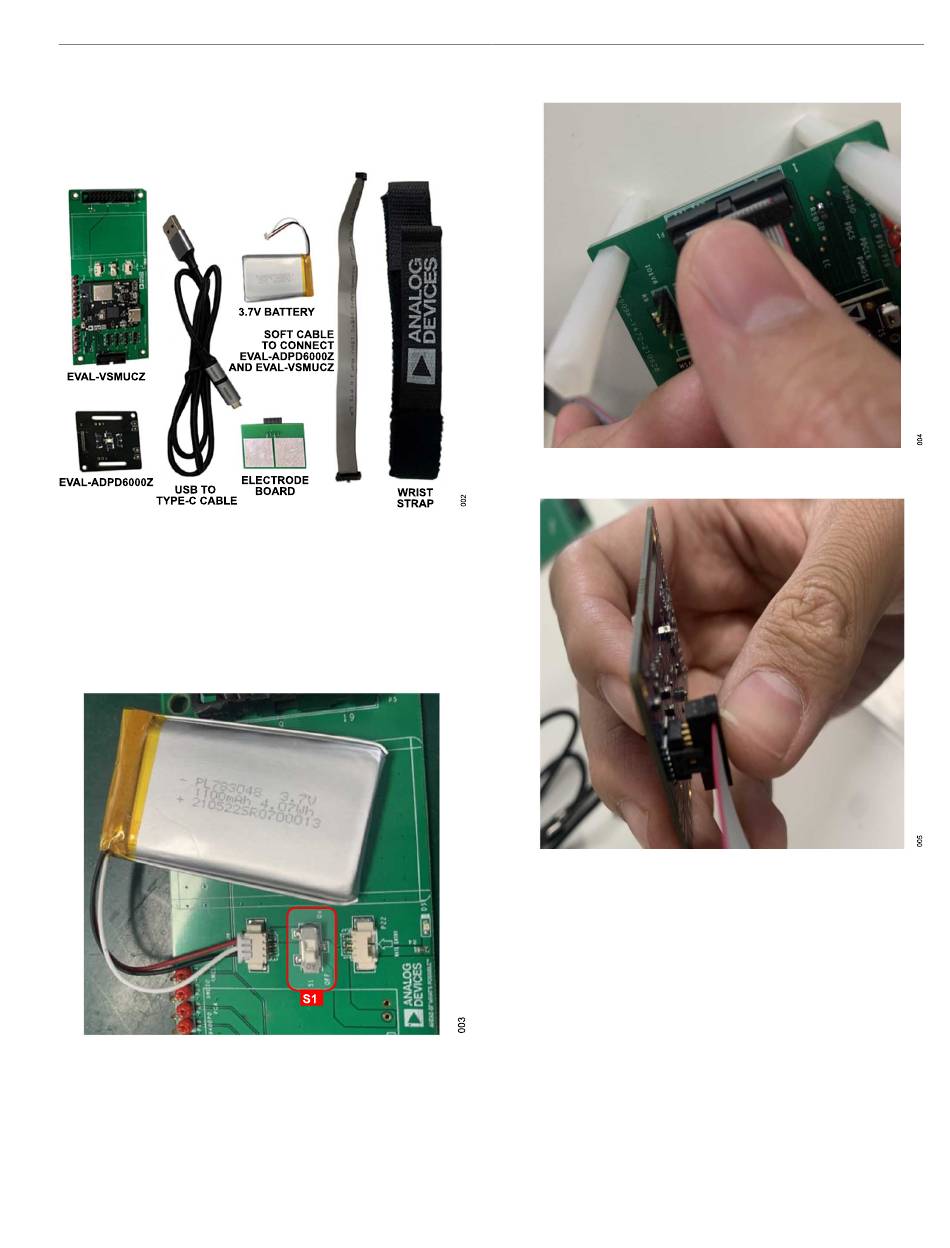

Figure 2 shows the components needed for evaluation.
Figure 2. EVAL-ADPD6000Z Demonstration Kit Components

PCB CONNECTION

Take the following steps to establish the printed circuit board (PCB)
connection:
1. Connect the battery to the connector on the EVAL-VSMUCZ
(see Figure 3. Ensure that the S1 switch is off.
Figure 3. Battery Connected to EVAL-VSMUCZ
2. Connect the EVAL-VSMUCZ to the EVAL-ADPD6000Z (see
Figure 4 and Figure 5). Ensure the EVAL-VSMUCZ and EVAL-
ADPD6000Z have the same number of pins, and that the pin
numbers match.
analog.com
EVAL-ADPD6000
Figure 4. EVAL-VSMUCZ Connection
Figure 5. EVAL-ADPD6000 Connection
3. For ECG or BIA measurement, connect the EVAL-ADPD6000Z
to the electrodes on the electrode board as follows:
For ECG measurement, connect P3 to Electrode 1, P4 to
►
Electrode 2, and P6 to Electrode 3. Leave Electrode 4
unconnected (see Figure
For BIA measurement, connect P3 to Electrode 1, P4 to
►
Electrode 2, P6 to Electrode 3, and P5 to Electrode 4 (see
Figure 7).
Note that the BIA connection can also be used for ECG meas-
urement.
6).
