User Guide

VSM CLIENT

FIND THE DEVICE ON VSM CLIENT

Take the following steps to find the device on the VSM Client
software:
1. After installing VSM Client, power on the EVAL-ADPD6000Z
and launch VSM Client.
2. Click Click to connect in the start interface of VSM Client (see
Figure 20).

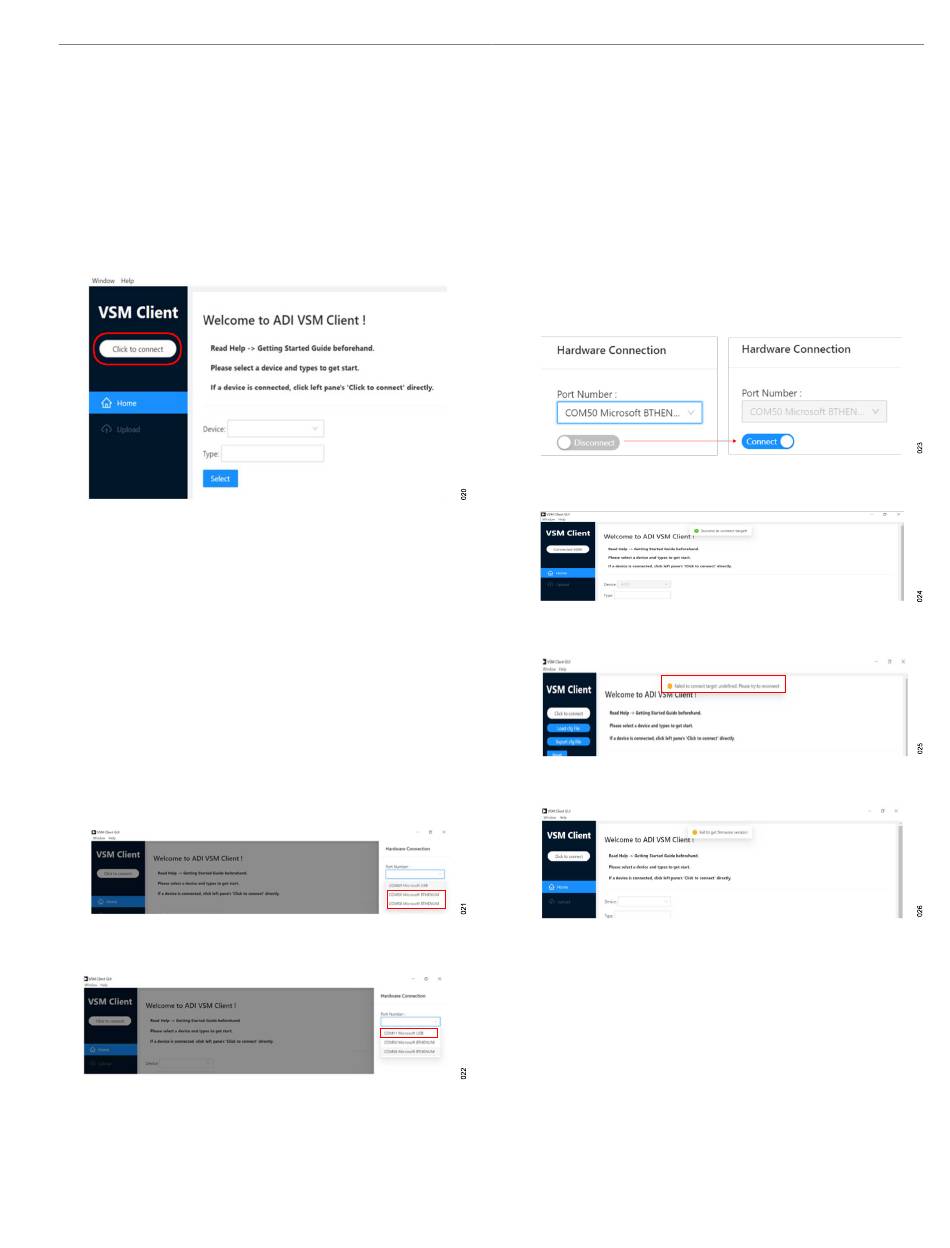

Figure 20. Start Interface of VSM Client
3. In the Hardware Connection pane, select the communication
(COM) port according to the connection method, as follows:
If using a Bluetooth connection, two ports are available. In
►
the example shown in Figure
Microsoft BTHENUM and COM58 Microsoft BTHENUM.
Select one of the two ports. If the following steps cannot
be completed successfully with the selected port, select a
different port.
If using a cable connection, only one port is available (see
►
Figure 22). In the example shown in
COM11 Microsoft USB.
The COM serial port numbers shown are examples only. Refer
to the Device Manager for the COM serial port numbers.
Figure 21. Bluetooth Connection COM Ports
Figure 22. Cable Connection COM Port
4. Toggle the connection switch to Connect (see
When connected, a Success to connect target! pop-up ap-
pears at the top of the VSM Client window (see
analog.com
21, these ports are COM50
Figure 22, the port is
Figure 23).
Figure 24), and
EVAL-ADPD6000
the Click to connect button changes to display Connected
6000. To disconnect the device, toggle the connection switch to
Disconnect. The following pop-up messages can appear if the
connection is unsuccessful:
Failed to connect target: undefined. Please try to recon-
►
nect. If this pop-up appears (see
COM port and reconnect.
Fail to get firmware version!. If this pop-up appears (see
►
Figure 26), the firmware version may not match the software
version. Update the firmware in the kit. For details on updat-
ing the firmware, see the EVAL-ADPD6000Z product page.
Figure 23. Toggle Connection Switch
Figure 24. Connection Successful
Figure 25. Failed to Connect Target Error
Figure 26. Failed to Get Firmware Version Error
5. From the Type dropdown menu, select one of three functions:
ECG, PPG, or BIOZ (see Figure
configuration interface.
Figure 25), select another
27). Click Select to enter the
Rev. 0 | 8 of 20
