Analog Devices EVAL-ADPD6000 User Manual page 12

User Guide
VSM CLIENT

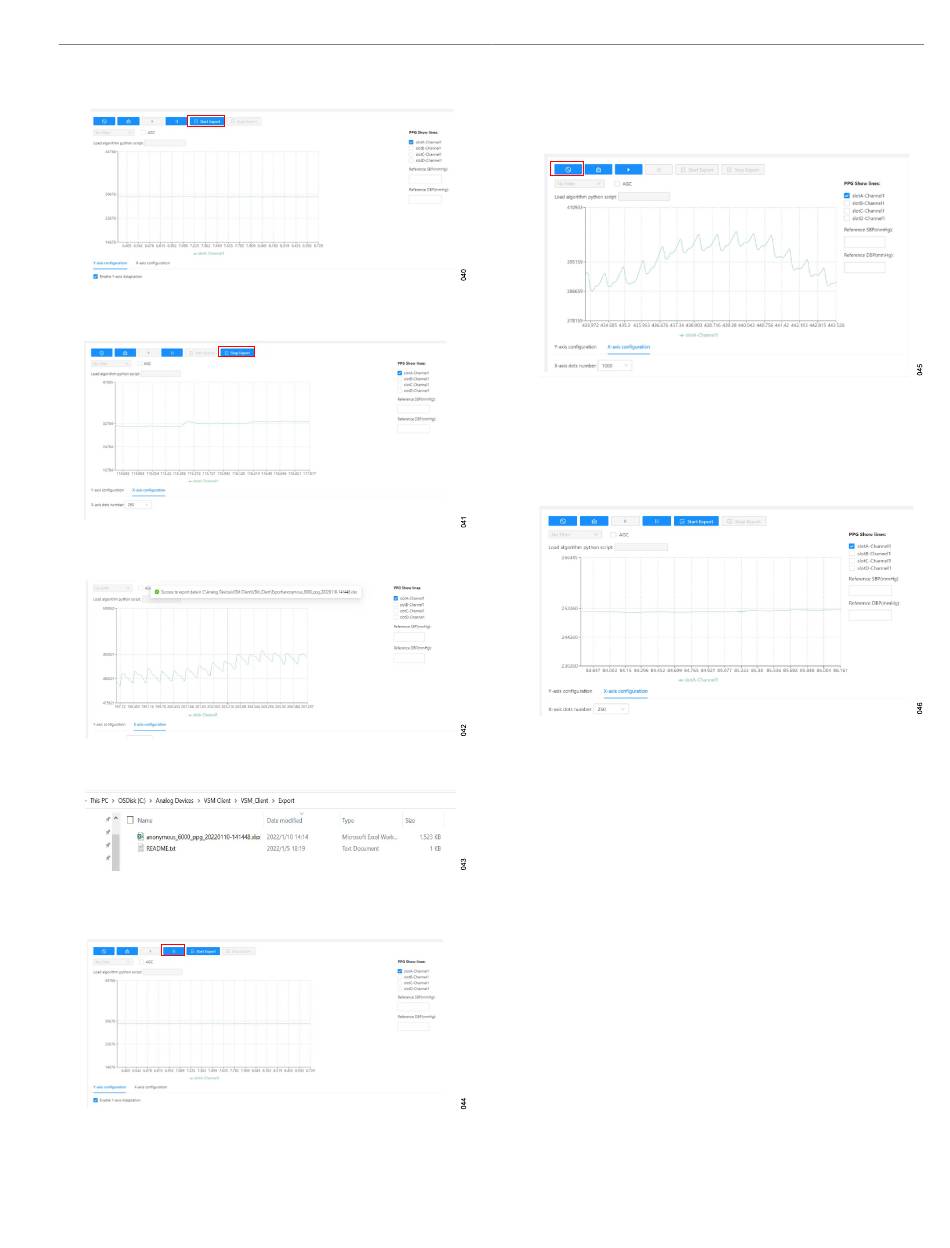

Figure 40. Start Export
Figure 41. Stop Export
Figure 42. Export Successful
Figure 43. Export Folder
6. Click the pause button to stop receiving data (see
Figure 44. Stop Receiving Data
analog.com
7. Click the Stop Data Plot button to clear the plot (see
45).
8. On the EVAL-ADPD6000Z, place a white reflective card before
the LED and PD pair to get a dc waveform (see
can be used to measure the performance of the system, such
as SNR, noise, and ambient light rejection (ALR).
Figure 44).
EVAL-ADPD6000
Figure 45. Clear Plot Data
Figure
Figure 46. DC Waveform
Rev. 0 | 12 of 20
Figure
46) that
