CONFIGURE THE DEVICE

Take the following steps to configure the device:
1. Click Load cfg File in the configuration interface of VSM Client
to load a basic configuration file (see
current configuration file, click Export cfg File to save the script
in the configuration file folder (see
loaded .dcfg file, click Reset before continuing.

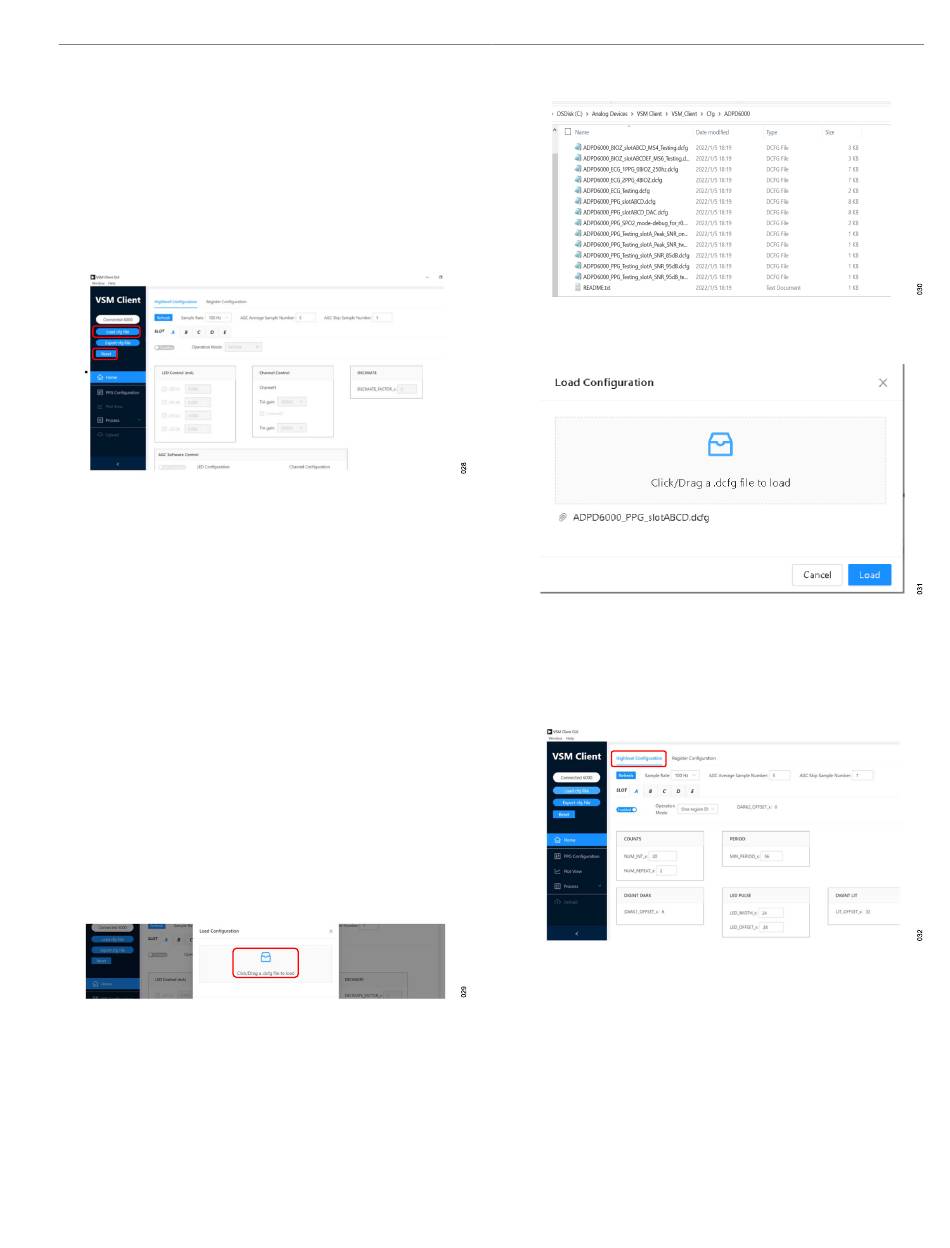

Figure 28. Configuration Interface
2. Click Click/Drag a .dcfg file to load to open the .dcfg file in
the Load Configuration window (see
to the application or measurement conditions, the user can
choose the following initial configurations from the C:\Analog
Devices\VSM Client\VSM_Client\Cfg\ADPD6000 location:
ADPD6000_BIOZ_slotABCDEF_MS6_Testing: BIA magni-
►
tude and phase measurement
ADPD6000_ECG_Testing: ECG channel signal measure-
►
ment
ADPD6000_PPG_Testing_slotA_Peak_SNR_one_led: PPG
►
peak signal-to-noise (SNR) test using LED1A
ADPD6000_PPG_Testing_slotA_Peak_SNR_two_led: PPG
►
peak SNR test using LED1A and LED2A
ADPD6000_PPG_Testing_slotA_SNR_85dB: PPG 85 dB
►
SNR test using LED2A
ADPD6000_PPG_Testing_slotA_SNR_95dB: PPG 95dB
►
SNR test using LED1A
The configuration files in the configuration file folder may differ
from those shown in Figure
Figure 29. Choose Configuration File
analog.com
Figure 28). To export the
Figure 30). To change the
Figure 29). According
30.
EVAL-ADPD6000
Figure 30. Configuration File Folder
3. Click Load (see Figure 31) to load the configuration file.
Figure 31. Load Configuration
4. After loading the configuration file, the Highlevel Configura-
tion tab shows the current device data (see
tab shows the most used controls, which can be configured. To
reset the data, click Reset.
Figure 32. Highlevel Configuration Tab
5. To read or write an individual register, click the Register Con-
figuration tab. To check a register, enter the address in the
Register Address field and click Read (see
change a register, enter the value in the Register Value field
and click Write (see Figure
for the detailed values of the registers.
Figure 32). This
Figure 33). To
34). See the ADPD6000 data sheet
