NTI UNIMUX 2-PORT USB KVM SWITCH

Connect to a CPU

1.
Using a USB-AB-x-MM cable connect the USB type A device port of a USB CPU to the USB type B port labeled "CPU 1" on
the UNIMUX-USBV-2.
2.
Using a VEXT-xx-MM connect the video port of the same USB CPU connected in step 5 to the female 15HD port labeled
3.
"VIDEO 1" on the UNIMUX-USBV-2 . Be sure to tighten the two screws on the cable connector to the UNIMUX-USBV-2
securely.
4.
Repeat steps 5 and 6 for connecting a second USB CPU to the ports labeled "CPU 2" and "VIDEO 2" . See Fig. 2.

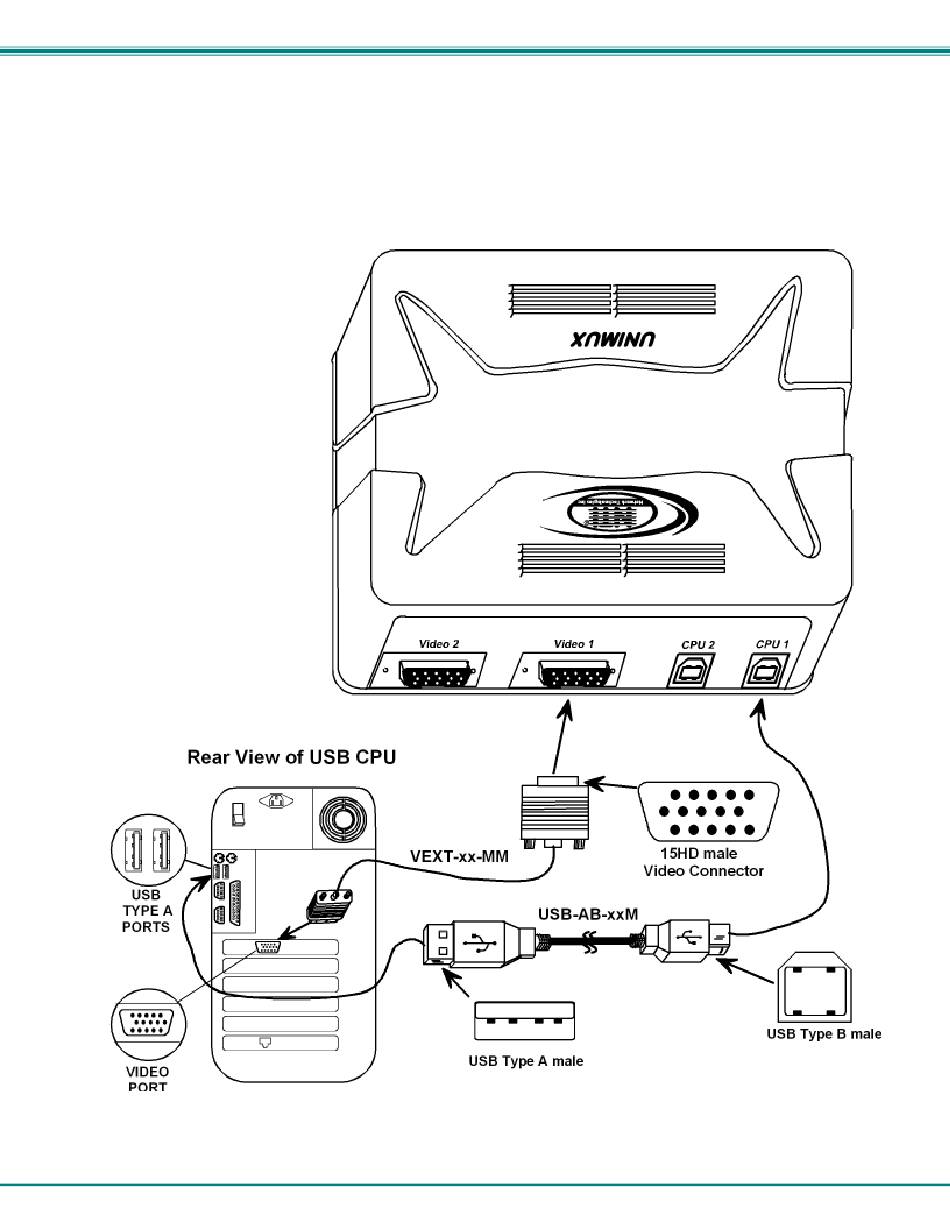

Figure 2- Connect to a USB CPU

4
