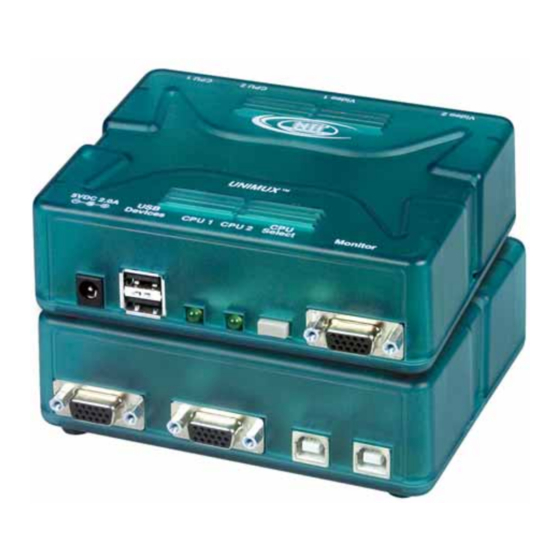

KEEMUX-USBV-2U (2-Port USB KVM Switch)
INSTALLATION / USER GUIDE
MAN027 Rev Date 1/25/2002
1275 Danner Dr
Aurora, OH 44202
NTI
1275 Danner Drive
Ph: 330-562-7070
Fax: 330-562-1999
www.nti1.com
KEEMUX-USBV-2U
5VDC
USB
1.5A
CPU 1 CPU 2
-
DEVICES
+
Multi-Scan
Monitor
USB Mouse
USB Keyboard
Tel:330-562-7070
Fax:330-562-1999
www.nti1.com
NETWORK
R
TECHNOLOGIES
INCORPORATED
CPU
SELECT
MONITOR
VGA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for NTI KEEMUX-USBV-2U
Summary of Contents for NTI KEEMUX-USBV-2U
- Page 1 NETWORK 1275 Danner Dr Tel:330-562-7070 TECHNOLOGIES Aurora, OH 44202 Fax:330-562-1999 INCORPORATED www.nti1.com KEEMUX-USBV-2U (2-Port USB KVM Switch) INSTALLATION / USER GUIDE MAN027 Rev Date 1/25/2002 NETWORK TECHNOLOGIES INCORPORATED 1275 Danner Drive Ph: 330-562-7070 Fax: 330-562-1999 www.nti1.com KEEMUX-USBV-2U 5VDC 1.5A CPU 1 CPU 2...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ....................................1 MATERIALS ....................................1 FEATURES AND FUNCTIONS..............................2 INSTALLATION ....................................3 USING THE NTI SWITCH................................5 CPU Select .................................. 5 Keyboard Control................................. 5 Command Mode ................................6 Scan Mode................................... 7 Broadcast Mode................................7 Normal Mode....................................7 KEYBOARD FEATURES ................................7 Keyboard-To-Computer Translation ..........................8 Translation Capabilities ............................... -
Page 3: Introduction
INTRODUCTION The KEEMUX-USBV-2U USB KVM switch allows one user to access two USB CPUs with only one USB keyboard, USB mouse, and 15HD VGA monitor. Internal microprocessors allow both CPUs to boot simultaneously and error-free. Port selection is accomplished by a front panel push button or commands typed on the keyboard. -
Page 4: Features And Functions
FEATURES AND FUNCTIONS Front View of KEEMUX-USBV-2U Rear View of KEEMUX-USBV-2U FEATURES AND FUNCTIONS 1. 5VDC- connection jack for the AC adapter 2. USB DEVICES- USB type A female receptacles- for connection of user USB device(s) 3. CPU Status/Mode LEDs- for visual indication of switch connection between the user and a specific CPU as well as mode status 4. -
Page 5: Installation
INSTALLATION It is not necessary to turn OFF power to either of the CPUs that will be connected to the KEEMUX-USBV-2U USB KVM switch before connecting or disconnecting any cables. NOTE: If a CPU needs to identify a keyboard, it will be necessary to power ON the CPU after it is connected to the KEEMUX-USBV-2U USB KVM switch and only after the keyboard is connected and the KEEMUX-USBV-2U USB KVM switch is powered ON. - Page 6 Using a VEXT-xx-MM connect the video port of the same USB CPU connected in step 5 to the female 15HD port labeled "VIDEO 1" on the KEEMUX-USBV-2U USB KVM switch . Be sure to tighten the two screws on the cable connector to the KEEMUX-USBV-2U USB KVM switch securely.
-
Page 7: Using The Nti Switch
POWER-UP SEQUENCE The KEEMUX-USBV-2U USB KVM switch can be powered at any time. The CPUs can be powered at any time although if a CPU needs a keyboard and/or mouse at power-ON it should be powered after connecting to and powering-ON the KEEMUX-USBV-2U USB KVM switch. -
Page 8: Command Mode
(Lxx would be L00-L34, see Country Codes Table on page 9) country code for the keyboard (This will print the version of the code in the KEEMUX-USBV-2U switch to a text editor Print the code window for use when troubleshooting the switch) -
Page 9: Scan Mode
Normal Mode The KEEMUX-USBV-2U USB KVM switch is in Normal Mode when only the LED for the active CPU is illuminated solid (not flashing as in Scan Mode). When in Normal Mode, the user is controlling only the CPU to which the user is connected through the KEEMUX-USBV-2U USB KVM switch. -
Page 10: Keyboard-To-Computer Translation
Keyboard-To-Computer Translation (See Fig. 4 on page 9 for reference.) The NTI KEEMUX-USBV-2U USB KVM switch enables a mixture of otherwise incompatible peripheral computer components to be connected together. This is accomplished by performing keyboard-to-computer translations automatically (i.e. translate a MAC keyboard and mouse to a Windows type CPU). -
Page 11: International Sun Keyboards
Sun keyboard, follow this procedure: 1. Disconnect the CPU from the KEEMUX-USBV-2U USB KVM switch 2. Connect the international keyboard to be used to the KEEMUX-USBV-2U USB KVM switch 3. Disconnect power to the KEEMUX-USBV-2U USB KVM switch for at least 3 seconds 4. -
Page 12: Country Codes
It is also possible to configure the KEEMUX-USBV-2U USB KVM switch to emulate a specific international Sun keyboard regardless of what actual keyboard is connected. This is recommended when the CPU needs the layout code (i.e. a SUN CPU) and the keyboard doesn't have an explicit layout code (i.e. some Windows keyboards). To do this, manually set the KEEMUX-USBV-2U USB KVM switch to indicate the international keyboard identification number to the CPU using the following procedure;... -
Page 13: Technical Specifications
• reboot the CPU If the NTI KEEMUX-USBV-2U USB KVM switch still seems work improperly, help may be found in the Frequently Ask Questions (FAQ’s) section of our website at http://www.nti1.com or call us directly at ( 800) 742-8324 (800-RGB-TECH) or... -
Page 14: Warranty Information
The material in this guide is for information only and is subject to change without notice. Network Technologies Inc reserves the right to make changes in the product design without reservation and without notification to its users. SERIAL NO.: DATE: INSPECTED BY: KEEMUX-USBV-2U...
