1.4 Development and Evaluation Tools

1.4.1 RCM3305 Series Development Kit

The RCM3305 Series Development Kit contains the hardware you need to use your
RCM3305 or RCM3315 module.
• RCM3309 module.
• Prototyping Board.
• Universal AC adapter, 12 V DC, 1 A (includes Canada/Japan/U.S., Australia/N.Z., U.K.,
and European style plugs).
• USB programming cable with 10-pin header.
• Dynamic C CD-ROM, with complete product documentation on disk.
• Getting Started instructions.
• Accessory parts for use on the Prototyping Board.
• Screwdriver and Cat. 5 Ethernet cables.
• Rabbit 3000 Processor Easy Reference poster.
• Registration card.
DIAG
PROG
®
RabbitCore RCM3305 Series
The RCM3305 series of RabbitCore modules features built-in Ethernet, and onboard mass storage (serial
flash). These Getting Started instructions included with the Development Kit will help you get your
RCM3309 up and running so that you can run the sample programs to explore its capabilities and develop
your own applications.
Development Kit Contents
The RCM3305 Series Development Kit contains the following items
• RCM3309 module.
• Prototyping Board.
• Universal AC adapter, 12 V DC, 1 A (includes Canada/Japan/U.S., Australia/N.Z., U.K., and
European style plugs).
• USB programming cable with 10-pin header.
®
• Dynamic C CD-ROM — with complete product documentation on disk.
• A bag of accessory parts for use on the Prototyping Board.
• Screwdriver and Cat. 5 Ethernet cables.
• Getting Started instructions.
®
Installing Dynamic C
• Rabbit 3000 Processor Easy Reference poster.
• Registration card. Insert the CD from the Development Kit in
your PC's CD-ROM drive. If the installation
does not auto-start, run the setup.exe pro-
Visit our online Rabbit store at www.rabbit.com/store/ for
the latest information on peripherals and accessories that gram in the root directory of the Dynamic C
CD. Install any optional Dynamic C modules
are available for the RCM3305 series of RabbitCore
modules. or packs after you install Dynamic C .
Rabbit, RabbitCore, Dynamic C, and Digi are registered trademarks of Digi International Inc.
6
J8
GND
GND +3.3 V
VBT VRAM
/RES SMODE1
SM0 /IORD
/IOWR PG4
PG5 PG6
PG7 PE0
PE1 PE3
PE4 PE5
R12
PE6
PF7
PF5 R 6 7
R 6 8
PB7 PB6
PB5 PB4 R 6 9
R 7 0
PB3 PB2
PB0 /RES_OUT
RCM3300
PROTOTYPING
BOARD
GND/EGND
ACT LINK
PD7 PD6
PD2
PD3
PD5 PD4
PG3 PG2
PG1 PG0
PC7 PC6
PC5 PC4
PC3 PC2
PC1 PC0
PF0 PF1 R21 R22
PF2 PF3
PA0 PA1
PA2 PA3
Q1 Q2 Q3
JA
PA4 PA5
PA6 PA7
STAT GND R25 R26 R27 R28
R50
J9
Q6
R49
CORE
S1
S2 S3
RESET DS2

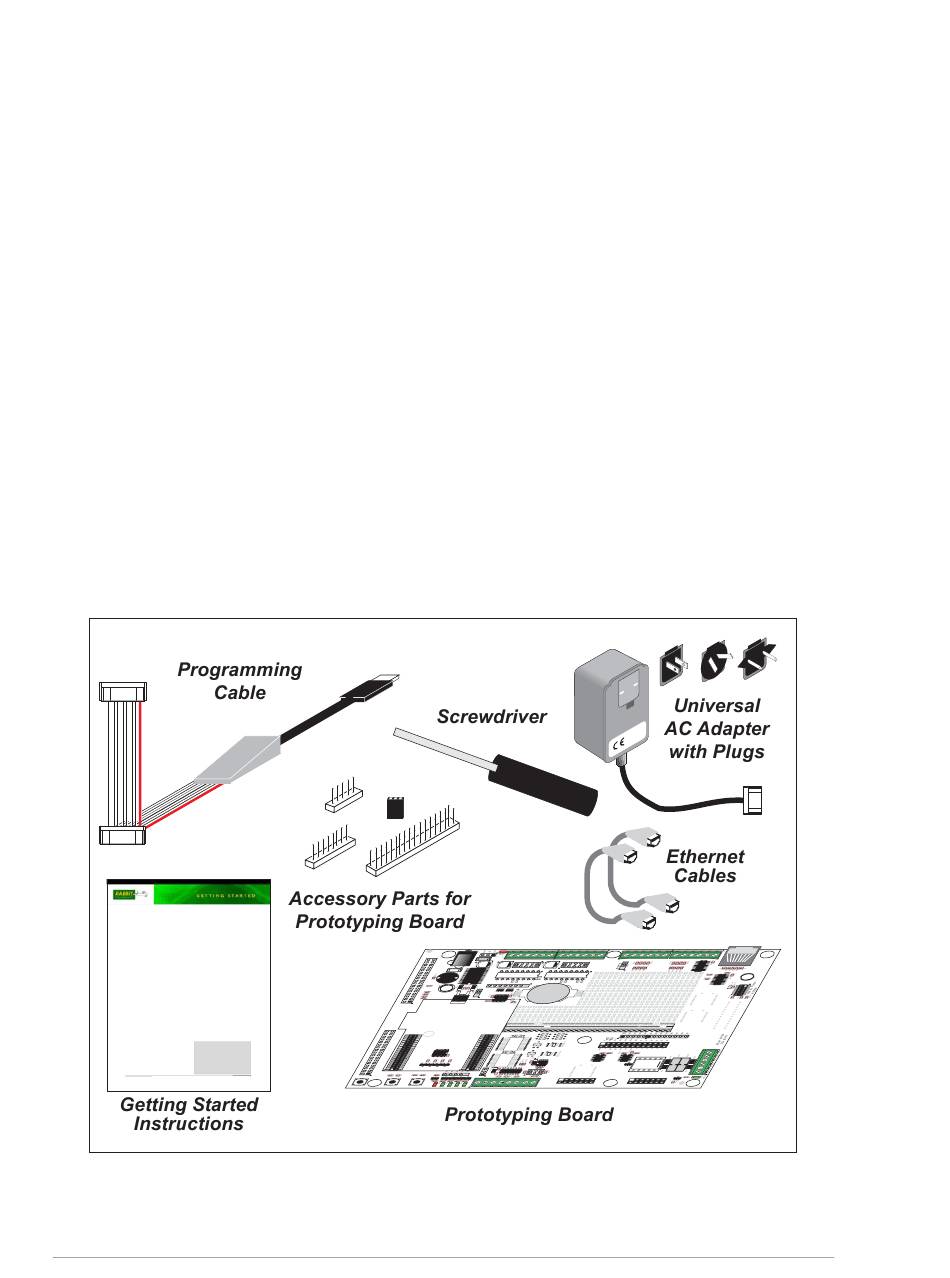

Figure 1. RCM3305 Series Development Kit
