1.3 Chassis Features

Front Features

The DS3A-261B is a compact Mini Tower chassis. The front of the chassis includes a power
on/off push-button and several LEDs as described below.
Item Feature
1 USB Port
2 USB Port
3 Mic
4 Audio
5 USB Port
6 USB Port
7 NIC LED
8 HDD LED
9 Power Button
3 4
1
2

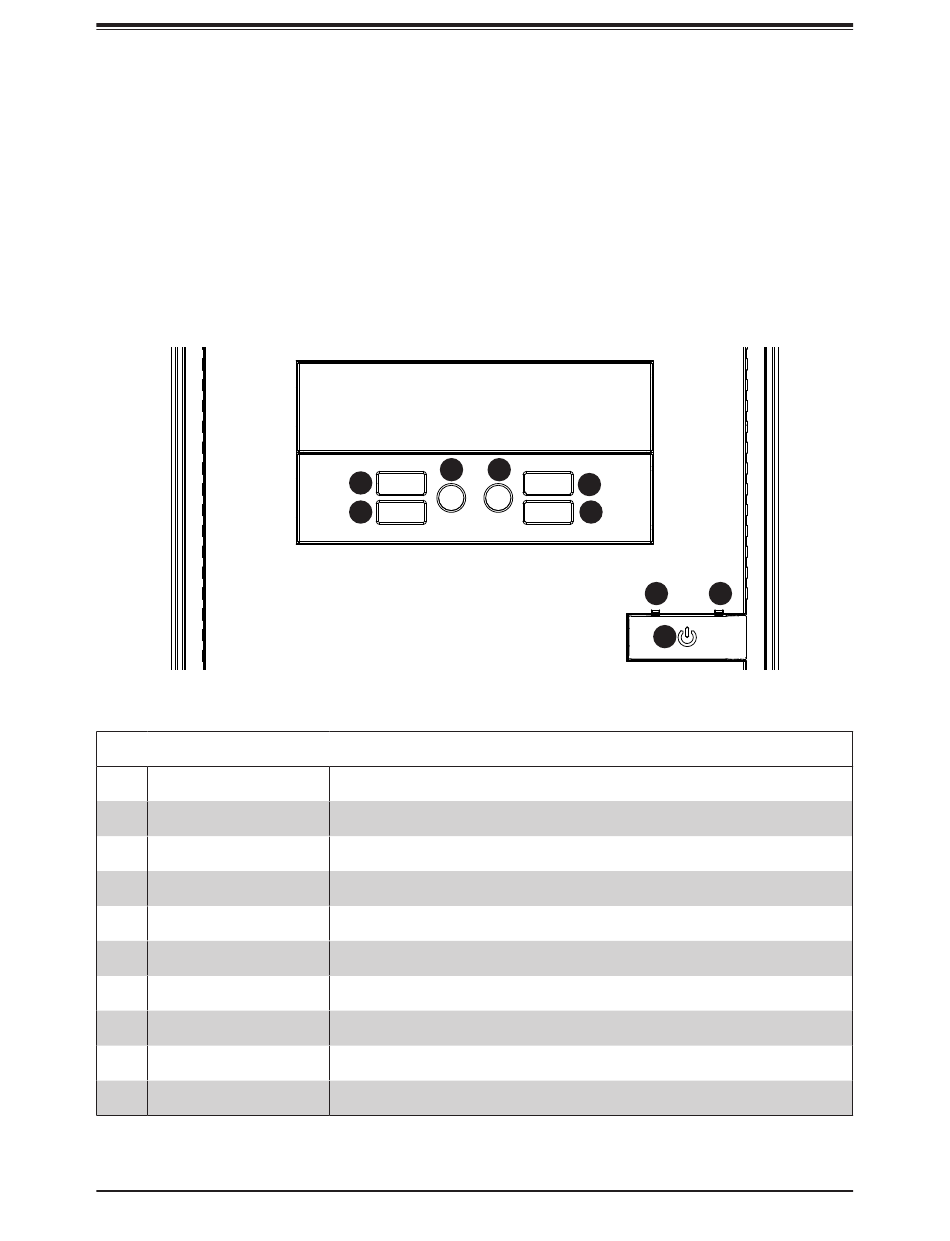

Figure 1-1. Chassis Front View
Front Chassis Features
Description
USB 3.0 port
USB 3.0 port
Microphone jack
Audio out jack
USB 2.0 port
USB 2.0 port
Indicates network activity when flashing
Indicates network activity when flashing
This LED alerts the operator to several states, as noted in the table below.
10
5
6
7 8
9
