Rear Features

Various input/output ports can be accessed at the rear of the chassis.
1
2
3
# Description
1. PS2 Keyboard/Mouse Port
2. USB0 Port (USB 2.0)
3 USB1 Port (USB 2.0)
4 Display Port
5 HDMI Port
6. DVI-D Port
Note: See Chapter 3 for pin definitions of the USB ports.
4
5
6

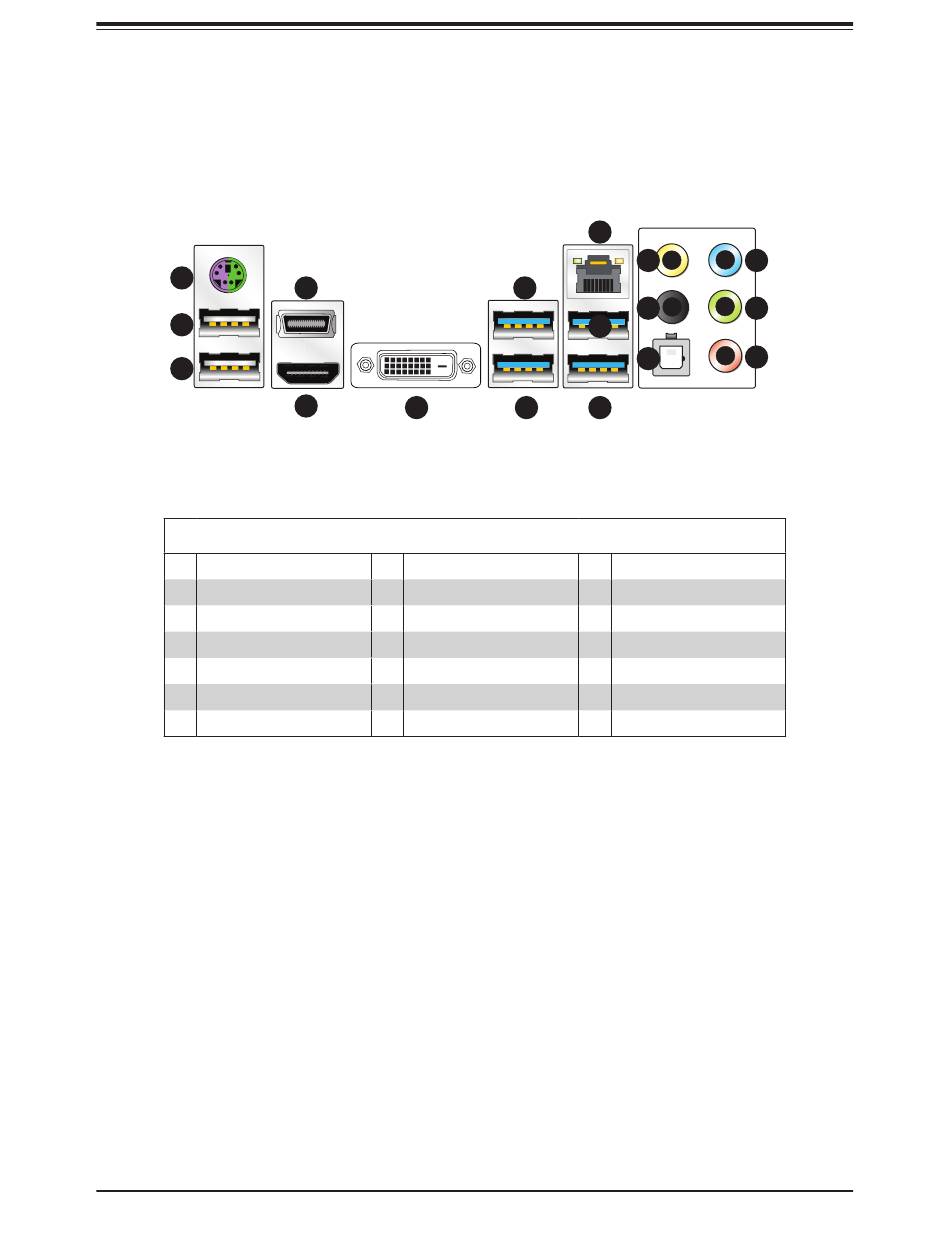

Figure 1-2. Rear I/O Ports
Rear I/O Ports
# Description
7 USB4 Port (USB 3.0)
8 USB5 Port (USB 3.0)
9 RJ-45 Gb Ethernet Port
10 USB6 Port (USB 3.0)
11 USB7 Port (USB 3.0)
12 Center/LFE Out
11
Chapter 1: Introduction
9
12
7
13
10
14
8
11
# Description
13 Surround Out
14 SPDIF Out
15 Line In
16 Line Out
17 Mic In
15
16
17
