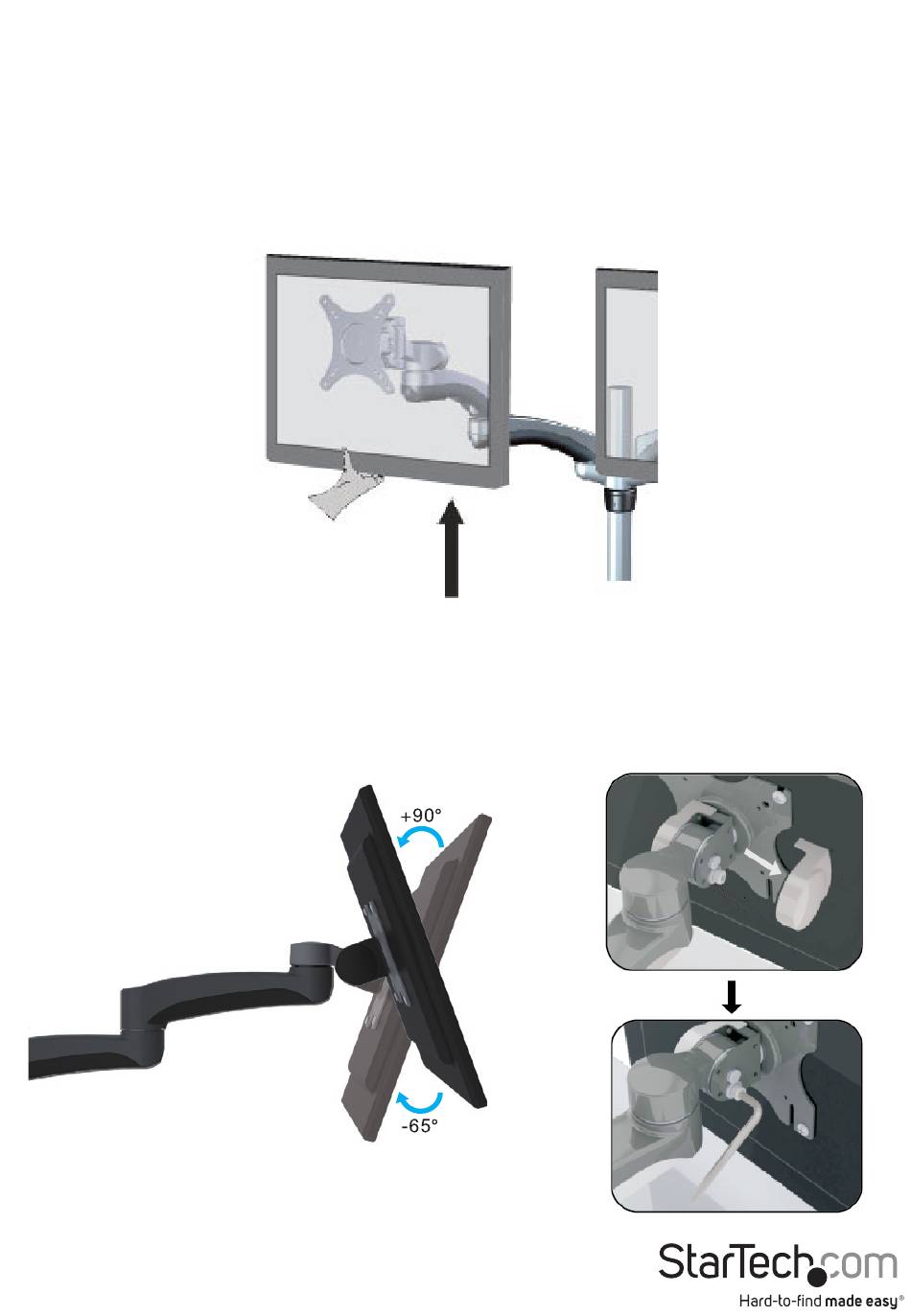

Adjusting LCD arm resistance
WARNING! Forced movement of the LCD arms or mount brackets without loosening
the screws may damage the product or the mounted displays.
Always support your display from underneath when making any adjustments to the
LCD Arms to avoid damage to the display.
Note: For all adjustments outlined below, turning the screw clockwise will increase the
resistance, while turning the screw counter-clockwise will decrease resistance.
• To increase or decrease the tilt resistance, use the M5 Allen key (9) to adjust the set
screw located on the side of the mount bracket joint.
Instruction Manual
11
