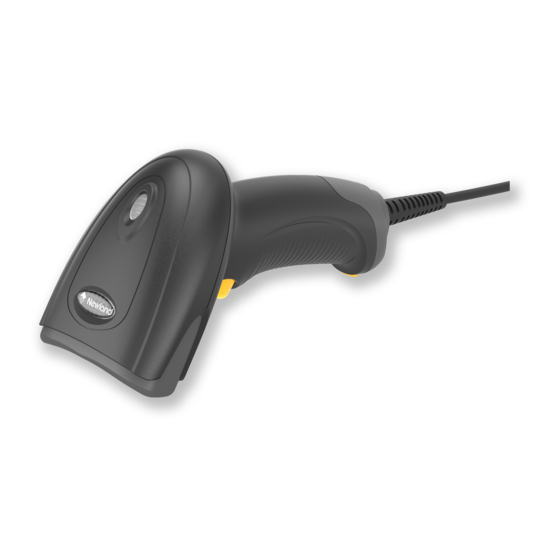

Newland NLS-HR11 User Manual

Hand-held barcode scanner
Hide thumbs
Table of Contents

Advertisement

Quick Links

NLS-HR11
Hand-held Barcode Scanner
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NLS-HR11 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Newland NLS-HR11

Summary of Contents for Newland NLS-HR11

  • Page 1 NLS-HR11 Hand-held Barcode Scanner User Guide...
  • Page 2 All pictures in this manual are for reference only and actual product may differ. Regarding to the product modification and update, Fujian Newland Auto-ID Tech. Co., Ltd. reserves the right to make changes to any software or hardware to improve reliability, function, or design at any time without notice. The information contained herein is subject to change without prior notice.
  • Page 3 Revision History Version Description Date V1.0.0 Initial release. March 22, 2016 1. Added the Video Reverse feature in Chapter 5. V1.0.1 December 9, 2016 2. Added the “Hands-free Scanning” section in Chapter 2. 1. Added Chapter 6 Safety Information. V1.0.2 June 22, 2018 2.

  • Page 4: Table Of Contents

    Table of Contents Revision History ............................- 3 - Preface ................................1 Introduction..............................1 Chapter Description ............................. 1 Chapter 1 Getting Started ..........................2 Introduction..............................2 Unpacking ..............................2 HR11 Scanner .............................. 3 Data Port ..............................4 Connecting the Scanner to a Host ....................... 5 Using USB Cable ...........................
  • Page 5 Factory Defaults ............................45 Scan Mode ..............................46 Manual Mode ............................46 Continuous Mode ..........................47 Sense Mode ............................50 Command Trigger Mode ........................54 Hands-free Scanning ........................... 55 Security Level ............................. 56 Good Read Beep ............................57 Good Read Beep Frequency ....................... 58 Good Read Beep Duration ........................
  • Page 6 Access the Scanner with Your Program ..................79 Acquire Scanned Data........................79 VID/PID ............................79 Chapter 4 Prefix & Suffix ..........................80 Introduction..............................80 Prefix Sequence ............................80 Custom Prefix ............................. 81 Enable/Disable Custom Prefix ......................81 Set Custom Prefix ..........................81 AIM ID Prefix ..............................
  • Page 7 Set Length Range for AIM 128 ......................97 EAN-8 ................................. 98 Restore Factory Defaults ........................98 Enable/Disable EAN-8 ......................... 98 Transmit Check Digit ..........................98 Add-On Code ............................99 Add-On Code Required ........................100 EAN-8 Extension ..........................100 EAN-13 ..............................101 Restore Factory Defaults ........................
  • Page 8 Interleaved 2 of 5 ............................. 115 Restore Factory Defaults ........................115 Enable/Disable Interleaved 2 of 5 ...................... 115 Check Digit Verification ........................116 Set Length Range for Interleaved 2 of 5 ................... 117 ITF-6 ................................. 118 Restore Factory Defaults ........................118 Enable/Disable ITF-6 .........................
  • Page 9 Transmit Start/Stop Characters ......................133 Enable/Disable Code 39 Full ASCII ....................133 Set Length Range for Code 39 ......................134 Codabar ..............................135 Restore Factory Defaults ........................135 Enable/Disable Codabar ........................135 Check Digit Verification ........................136 Start/Stop Characters ........................137 Set Length Range for Codabar ......................
  • Page 10 Transmit Application Identifier “01” ....................152 RSS-Expand ............................153 Restore Factory Defaults ........................153 Enable/Disable RSS-Expand ......................153 Chapter 6 Safety Information ........................154 Electrical Safety ............................154 Photobiological Safety ..........................154 Electromagnetic Compatibility (EMC) ...................... 154 Others ............................... 154 Appendix ...............................

  • Page 11: Preface

    Preface Introduction This manual provides detailed instructions for setting up and using the NLS-HR11 hand-held barcode scanner (hereinafter referred to as “HR11 scanner” or “the scanner”). Chapter Description  Chapter 1, Getting Started : This chapter gives a general description of HR11 scanner.

  • Page 12: Chapter 1 Getting Started

    HR11 scanner is a 1D barcode scanner with outstanding performance. Based on the technology independently developed by Newland, HR11 scanner is able to deliver rapid image capture and accurate decoding; it can provide customers with best services. HR11 scanner boasts the ergonomical design that ensures easy and comfortable operation.

  • Page 13: Hr11 Scanner

    HR11 Scanner Logo Decode LED Scan Window Label Trigger Decode LED: Green: Barcode is decoded successfully. Data Port...

  • Page 14: Data Port

    Data Port Data Port Signal Type Function CLK1 Keyboard clock signal DATA1 Keyboard data signal Power+ (DC5V) RS-232 output RS-232 input CLK2 PC clock signal DATA2 PC data signal Ground USB signal...

  • Page 15: Connecting The Scanner To A Host

    Connecting the Scanner to a Host The scanner must be connected to a Host in actual application, such as PC, POS or any intelligent terminal with USB or RS-232 port interface, using a communication cable (USB or RS-232 cable). USB port on the Host RS-232 RS-232 port on the Host Note: Please check the port on the host and purchase the cable accordingly.

  • Page 16: Using Usb Cable

    Using USB Cable Connect the scanner to a Host through a USB cable with RJ45 and USB connectors: Plug the RJ45 connector into the data port on the scanner. Plug the USB connector into the USB port on the Host. Using RS-232 Cable Connect the scanner to a Host through an RS-232 cable with RJ45, RS-232 and power connectors: Plug the RJ45 connector into the data port on the scanner.

  • Page 17: Removing Communication Cable

    Removing Communication Cable Get an appropriate needle or a straightened paper clip and then follow the steps below: Disconnect the power adaptor from mains if there is one. Insert the needle into the hole. Pull out the cable slowly from the scanner while pressing the needle in. Remove the needle.
  • Page 18  Use soft brush to remove the stain from the scan window.  Use the soft cloth to clean the window, such as eyeglass cleaning cloth.  Do not spray any liquid on the scan window.  Do not use any detergent to clean other parts of the device except for water. Note: The warranty DOES NOT cover damages caused by inappropriate care and maintenance.

  • Page 19: Dimensions (Unit: Mm)

    Dimensions (unit: mm) Left View Front View Top View...

  • Page 20: Scanning Instructions

    Scanning Instructions When the scanner is in the Manual scan mode, you can follow the steps below to scan a barcode: Press and hold the Trigger. Then the scanner will project a red aiming beam. Aim the red beam across the center of barcode, as shown below. Release the Trigger when the red beam goes off.
  • Page 21 Scan Angle The scanner is designed to function within a certain range of scan angles. Any unreasonable deviation may cause decoding failure. Scan angles of the scanner:  Pitch : ± 60° , 0° Roll and 0° Skew  Roll : ± 30° , 0° Pitch and 0° Skew ...

  • Page 22: Chapter 2 System Settings

    ** Enter Setup Chapter 2 System Settings Introduction There are two ways to configure the scanner: barcode programming and command programming. Barcode Programming The scanner can be configured by scanning programming barcodes. All user programmable features/options are described along with their programming barcodes/commands in the following sections.

  • Page 23: Read Register

    ** Enter Setup Read Register The read register command is used to read the contents of 1 to 256 contiguous registers in the scanner. Syntax: {Prefix1} {Types} {Lens} {Address} {Datas} {FCS} Prefix1 : 0x7E 0x00 (2 bytes) Types : 0x07 (1 byte) Lens : 0x01 (1 byte).
  • Page 24 ** Enter Setup Reply: {Prefix2} {Types} {Lens} {Datas} {FCS} 1) Success message: Prefix2 : 0x02 0x00 Types : 0x00 (success) Lens : Byte count of Datas returned. If Lens=0x00, that means values of 256 contiguous registers are returned. Datas : 0x00~0xFF, data that are returned. : CRC-CCITT checksum.
  • Page 25 ** Enter Setup Example: Read the contents (0x35, 0x36, 0x37) of 3 contiguous registers starting from register 0x0005. 1) Read operation succeeds: Command sent: 0x7e 0x00 0x07 0x01 0x00 0x05 0x03 0xde 0xf6 Message received: 0x02 0x00 0x00 0x03 0x35 0x36 0x37 0x2a 0xba 2) Incorrect FCS: Command sent:...

  • Page 26: Write Register

    ** Enter Setup Write Register The write register command is used to write contiguous registers (1 to 256 registers) in the scanner. Syntax: {Prefix1} {Types} {Lens} {Address} {Datas} {FCS} Prefix1 : 0x7E 0x00 (2 bytes) Types : 0x08 (1 byte) Lens : 0x00~0xFF (1 byte), byte count, i.e.
  • Page 27 ** Enter Setup Reply: {Prefix2} {Types} {Lens} {Datas} {FCS} 1) Success message: Prefix2 : 0x02 0x00 Types : 0x00 (success) Lens : 0x01 Datas : 0x00 : 0x33 0x31 (CRC-CCITT checksum) 2) FCS error message: Prefix2 : 0x02 0x00 Types : 0x01 (incorrect FCS) Lens : 0x01 Datas : 0x00...
  • Page 28 ** Enter Setup Example: Write 0x31, 0x32, 0x33, 0x34 into 4 contiguous registers starting from register 0x000a. 1) Write operation succeeds: Command sent: 0x7e 0x00 0x08 0x04 0x00 0x26 0x31 0x32 0x33 0x34 0xcd 0xa4 Message received: 0x02 0x00 0x00 0x01 0x00 0x33 0x31 2) Incorrect FCS: Command sent: 0x7e 0x00 0x08 0x04 0x00 0x26...

  • Page 29: Enable/Disable Eeprom Write

    ** Enter Setup Enable/Disable EEPROM Write By default, EEPROM write is disabled after the device is powered up. You need to enable it before a write operation and recommendedly disable it afterwards to prevent miswriting. Syntax: {Prefix1} {Types} {Lens} {Address} {Datas} {FCS} Prefix1 : 0x7E 0x00 Types : 0x03 (EEPROM write enable)/ 0x00 (EEPROM write disable) Lens...
  • Page 30 ** Enter Setup Reply: {Prefix2} {Types} {Lens} {Datas} {FCS} 1) Success message: Prefix2 : 0x02 0x00 Types : 0x00 (success) Lens : 0x01 Datas : 0x00 : 0x33 0x31 (CRC-CCITT checksum) 2) FCS error message: Prefix2 : 0x02 0x00 Types : 0x01 (incorrect FCS) Lens : 0x01 Datas : 0x00...

  • Page 31: Write Eeprom

    ** Enter Setup Write EEPROM The scanner has 512 bytes of EEPROM. The EEPROM write command is used to write data to up to 256 addresses. You need to enable EEPROM write before a write operation and recommendedly disable it afterwards to prevent miswriting.
  • Page 32 ** Enter Setup Reply: {Prefix2} {Types} {Lens} {Datas} {FCS} 1) Success message: Prefix2 : 0x02 0x00 Types : 0x00 (success) Lens : 0x01 Datas : 0x00 : 0x33 0x31 (CRC-CCITT checksum) 2) FCS error message: Prefix2 : 0x02 0x00 Types : 0x01 (incorrect FCS) Lens : 0x01 Datas : 0x00...
  • Page 33 ** Enter Setup Example: Write 0x51, 0x52, 0x53, 0x54 into 4 contiguous addresses starting from address 0x0000. 1) Write operation succeeds: Command sent: 0x7e 0x00 0x04 0x04 0x00 0x00 0x51 0x52 0x53 0x54 0xbc 0x17 Message received: 0x02 0x00 0x00 0x01 0x00 0x33 0x31 2) Incorrect FCS: Command sent: 0x7e 0x00 0x04 0x03 0x00 0x00...

  • Page 34: Read Eeprom

    ** Enter Setup Read EEPROM The scanner has 512 bytes of EEPROM. The EEPROM read command is used to read the contents from 1 to 256 contiguous addresses of the EEPROM. Syntax: {Prefix1} {Types} {Lens} {Address} {Datas} {FCS} Prefix1 : 0x7E 0x00 Types : 0x05 Lens : 0x01...
  • Page 35 ** Enter Setup Reply: {Prefix2} {Types} {Lens} {Datas} {FCS} 1) Success message: Prefix2 : 0x02 0x00 Types : 0x00 (success) Lens : Byte count of Datas returned. Datas : 0x00~0xFF, data that are returned. : CRC-CCITT checksum. 2) FCS error message: Prefix2 : 0x02 0x00 Types : 0x01 (incorrect FCS) Lens...
  • Page 36 ** Enter Setup Example: Read the contents (0x35 0x36 0x37) of 3 contiguous EEPROM addresses starting from address 0x0005. 1) Read operation succeeds: Command sent: 0x7e 0x00 0x05 0x01 0x00 0x05 0x03 0x9a 0x75 Message received: 0x02 0x00 0x00 0x03 0x35 0x36 0x37 0x2a 0xba 2) Incorrect FCS:...

  • Page 37: Registers

    ** Enter Setup Registers Register 0x0000 Feature Bit 7 Reserved Bit 6 1: Silent Mode Off 0: Silent Mode On Bit 5-4 Reserved Illumination: Bit 3-2 00: Off 01: On When Scanning 10/11: Always On Scan Mode: Bit 1-0 00: Manual Mode 01: Command Trigger Mode 10: Continuous Mode 11: Sense Mode...
  • Page 38 ** Enter Setup Register 0x0009 Feature Bit 7-5 Reserved Bit 4 0: Serial Communication Bit 3-2 Reserved Bit 1-0 00: USB DataPipe 01: USB HID-KBW 10: USB COM Port Emulation 11: USB HID-POS Register 0x000A Feature Bit 7-5 Reserved Bit 4 0: Allow Rereading Same Barcode 1: Disallow Rereading Same Barcode Bit 3-2...
  • Page 39 ** Enter Setup Register 0x0019 Feature USB Country Keyboard Types 00: U.S. 01: Belgium 02: Brazil 03: Canada 04: Czech 05: Denmark 06: Finland 07: France 08: Austria 09: Greece 0A: Hungary 0B: Israel Bit 7-0 0C: Italy 0D: Latin America 0E: Netherland 0F: Norway 10: Poland...
  • Page 40 ** Enter Setup Register 0x0029 Feature Bit 7-4 Reserved Bit 3 1: 8 Data Bits 0: 7 Data Bits Parity Check Bit 2-1 00/01: None 10: Odd 11: Even Bit 0 1: 2 Stop Bits 0: 1 Stop Bit Register 0x002B, 0x2A Feature Bit 15-13...
  • Page 41 ** Enter Setup Register 0x0037-0x33 Feature Bit 39-0 Set Custom Prefix Register 0x0032 Feature Bit 7-3 Reserved Bit 2-0 Set Custom Prefix Length (0-5) Register 0x0042-0x3E Feature Bit 39-0 Set Custom Suffix Register 0x003D Feature Bit 7-3 Reserved Bit 2-0 Set Custom Suffix Length (0-5) Register 0x004D-0x49...
  • Page 42 ** Enter Setup Register 0x0065 Feature EAN-8 Extension Bit 7-6 00: Disable EAN-8 Zero Extend 01: Enable EAN-8 Zero Extend 10/11: Convert EAN-8 to EAN-13 Bit 5 1: Enable EAN-8 5-digit Add-on Code 0: Disable EAN-8 5-digit Add-on Code Bit 4 1: Enable EAN-8 2-digit Add-on Code 0: Disable EAN-8 2-digit Add-on Code Bit 3...
  • Page 43 ** Enter Setup Register 0x0069 Feature UPC-E Extension Bit 7-6 00: Disable UPC-E extend 01: Enable UPC-E extend 10/11: Convert UPC-E to UPC-A Bit 5 1: Enable UPC-E 5-digit Add-on Code 0: Disable UPC-E 5-digit Add-on Code Bit 4 1: Enable UPC-E 2-digit Add-on Code 0: Disable UPC-E 2-digit Add-on Code Bit 3 1: UPC-E Add-on Code Required...
  • Page 44 ** Enter Setup Register 0x006C Feature Bit 7-4 Reserved Bit 3 1: Transmit Interleaved 2 of 5 Check Digit 0: Do Not Transmit Interleaved 2 of 5 Check Digit Bit 2 1: Enable Interleaved 2 of 5 Check Digit 0: Disable Interleaved 2 of 5 Check Digit Bit 1 Reserved Bit 0...
  • Page 45 ** Enter Setup Register 0x0071 Feature Bit 7-4 Reserved Bit 3 1: Transmit Matrix 2 of 5 Check Digit 0: Do Not Transmit Matrix 2 of 5 Check Digit Bit 2 1: Enable Matrix 2 of 5 Check Digit 0: Disable Matrix 2 of 5 Check Digit Bit 1 Reserved Bit 0...
  • Page 46 ** Enter Setup Register 0x0075 Feature Bit 7 Reserved Bit 6 1: Transmit Codabar Check Digit 0: Do Not Transmit Codabar Check Digit Bit 5 1: Enable Codabar Check Digit 0: Disable Codabar Check Digit Codabar Start/Stop Character Format: Bit 4-3 00: ABCD/ABCD 01: ABCD/TN*E 10: abcd/abcd...
  • Page 47 ** Enter Setup Register 0x0078 Feature Bit 7-4 Reserved Bit 3 1: Transmit Plessey Check Digit 0: Do Not Transmit Plessey Check Digit Bit 2 1: Enable Plessey Check Digit 0: Disable Plessey Check Digit Bit 1 Reserved Bit 0 1: Enable Plessey 0: Disable Plessey Register...
  • Page 48 ** Enter Setup Register 0x007C Feature Bit 7-1 Reserved Bit 0 1: Enable RSS-Expand 0: Disable RSS-Expand Register 0x0080 Feature Bit 7-0 Set Code 128 Maximum Length Register 0x0081 Feature Bit 7-0 Set Code 128 Minimum Length Register 0x0082 Feature Bit 7-0 Set UCC/EAN-128 Maximum Length Register...
  • Page 49 ** Enter Setup Register 0x0089 Feature Bit 7-0 Set Matrix 2 of 5 Minimum Length Register 0x008A Feature Bit 7-0 Set Industrial 25 Maximum Length Register 0x008B Feature Bit 7-0 Set Industrial 25 Minimum Length Register 0x008C Feature Bit 7-0 Set Standard 25 Maximum Length Register 0x008D...
  • Page 50 ** Enter Setup Register 0x0094 Feature Bit 7-0 Set Code 11 Maximum Length Register 0x0095 Feature Bit 7-0 Set Code 11 Minimum Length Register 0x0096 Feature Bit 7-0 Set Plessey Maximum Length Register 0x0097 Feature Bit 7-0 Set Plessey Minimum Length Register 0x0098 Feature...
  • Page 51 ** Enter Setup Register 0x00A9, 0x00A8 Feature Set EAN-8 Code ID Bit 15-0 ASCII value of one or two English letters (lower or upper case) Register 0x00AB, 0x00AA Feature Set EAN-13 Code ID Bit 15-0 ASCII value of one or two English letters (lower or upper case) Register 0x00AD, 0x00AC Feature...
  • Page 52 ** Enter Setup Register 0x00B9, 0x00B8 Feature Set ITF-14 Code ID Bit 15-0 ASCII value of one or two English letters (lower or upper case) Register 0x00BB, 0x00BA Feature Set Deutsche 14 Code ID Bit 15-0 ASCII value of one or two English letters (lower or upper case) Register 0x00BD, 0x00BC Feature...
  • Page 53 ** Enter Setup Register 0x00C7, 0x00C6 Feature Set Codabar Code ID Bit 15-0 ASCII value of one or two English letters (lower or upper case) Register 0x00C9, 0x00C8 Feature Set Code 93 Code ID Bit 15-0 ASCII value of one or two English letters (lower or upper case) Register 0x00CB, 0x00CA Feature...

  • Page 54: Enable/Disable Barcode Programming

    ** Enter Setup Enable/Disable Barcode Programming Scanning the Enter Setup/Exit Setup barcode can enable/disable barcode programming. After barcode programming is enabled, you can scan a number of programming barcodes to configure your scanner. Barcode programming is on by default. In real application, programming barcodes hardly overlap with non-programming barcodes, so it is unnecessary to disable barcode programming each time you finish the configuration.

  • Page 55: Factory Defaults

    ** Enter Setup Factory Defaults Scanning the following barcode can restore the scanner to the factory defaults. You may need to reset your scanner when: 1. scanner is not properly configured so that it fails to decode barcodes; 2. you forget previous configuration and want to avoid its impact; 3.

  • Page 56: Scan Mode

    ** Enter Setup Scan Mode Manual Mode Manual Mode (default): A trigger pull activates a decode session. The decode session continues until the barcode is decoded or the trigger is released or the decode session timeout expires. ** Manual Mode Decode Session Timeout: This parameter sets the maximum time decode session continues during a scan attempt.

  • Page 57: Continuous Mode

    ** Enter Setup Continuous Mode Continuous Mode: A trigger press activates the scanner to scan and decode at user-specified intervals, i.e. the timeout between decodes. Each decode session lasts until barcode is decoded or the decode session timeout expires. To suspend/resume the operation, simply press the trigger. By default, the scanner rereads same barcode with no delay.
  • Page 58 ** Enter Setup Timeout between Decodes:This parameter sets the timeout between decode sessions. When a decode session ends, next session will not happen until the timeout between decodes expires. It is programmable in 0.1s increments from 0.0s to 25.5s. The default timeout is 1.0s. Timeout between Decodes Example: Set the timeout between decodes to 5s Scan the Enter Setup barcode.
  • Page 59 ** Enter Setup Reread Delay sets the time period before the scanner can read the same barcode a second time. It protects against accidental rereads of the same barcode. This parameter is programmable in 0.1s increments from 0.1s to 25.5s. The default delay is 3.0s. If the parameter is set to 0, the delay is infinite. Note: This parameter only applies when the Reread Same Barcode with a Delay is enabled.

  • Page 60: Sense Mode

    ** Enter Setup Sense Mode Sense Mode: The scanner activates a decode session every time when it detects a change in ambient illumination and meets the requirement of the image stabilization timeout. Decode session continues until barcode is decoded or the decode session timeout expires. A trigger pull can also activate a decode session.
  • Page 61 ** Enter Setup Image Stabilization Timeout: This parameter defines the amount of time that the scanner waits for the image to stabilize to a point that it can be decoded with more accuracy. It is programmable in 0.1s increments from 0.0s to 25.5s. The default timeout is 0.4s. Image Stabilization Timeout Example: Set the Image Stabilization Timeout to 5s Scan the Enter Setup barcode.
  • Page 62 ** Enter Setup Reread Delay sets the time period before the scanner can read the same barcode a second time. It protects against accidental rereads of the same barcode. This parameter is programmable in 0.1s increments from 0.1s to 25.5s. The default delay is 3.0s. If the parameter is set to 0, the delay is infinite. Note: This parameter only applies when the Reread Same Barcode with a Delay is enabled.
  • Page 63 ** Enter Setup Sensitivity: This parameter specifies the degree of acuteness of the scanner’s response to changes in ambient illumination. The higher the sensitivity, the lower requirement in illumination change to trigger the scanner. You can select an appropriate degree of sensitivity that fits the ambient environment. High Sensitivity ** Medium Sensitivity Low Sensitivity...

  • Page 64: Command Trigger Mode

    ** Enter Setup Command Trigger Mode Command Trigger Mode: Decode session is activated by a host command. The decode session continues until the barcode is decoded or the decode session timeout expires. Command Trigger Mode Decode Session Timeout: This parameter sets the maximum time decode session continues during a scan attempt.

  • Page 65: Hands-Free Scanning

    ** Enter Setup Hands-free Scanning Inserting the scanner in the stand enables the scanner to switch from its current scan mode to the Sense mode. When the scanner is removed from the stand, it operates in the Manual scan mode. It takes 3 seconds for the scanner to get ready for scanning after the scanner is inserted into or removed from the stand, so do not operate the scanner during this period.

  • Page 66: Security Level

    ** Enter Setup Security Level This parameter specifies the number of times to decode a barcode during a scan attempt. The higher the security level, the lower the error rate and decoding efficiency. ** Set Security Level to 0 Set Security Level to 1 Set Security Level to 2 Set Security Level to 3 Exit Setup...

  • Page 67: Good Read Beep

    ** Enter Setup Good Read Beep ** Good Read Beep On Good Read Beep Off Exit Setup...

  • Page 68: Good Read Beep Frequency

    ** Enter Setup Good Read Beep Frequency ** Medium High Good Read Beep Duration 40ms **80ms 120ms Exit Setup...

  • Page 69: Decode Result Notification

    ** Enter Setup Decode Result Notification When enabled, if a barcode does not decode, “F” is transmitted; if a barcode is decoded, “S” is appended to the barcode data as the most left character. Enable Decode Result Notification ** Disable Decode Result Notification Exit Setup...

  • Page 70: Other Settings

    ** Enter Setup Other Settings You can change the following parameter settings temporarily and the changes will be lost when you power down or reboot the scanner. Silent Mode Silent Mode On ** Silent Mode Off Note: This feature is only applicable to decode beep and will be automatically disabled when the scanner is powered down or rebooted.

  • Page 71: Chapter 3 Communication Settings

    ** Enter Setup Chapter 3 Communication Settings Introduction The scanner provides an RS-232 interface and a USB interface to communicate with the host device. The host device can receive scanned data and send commands to control the scanner or to access/alter the configuration information of the scanner via the RS-232 or USB interface.

  • Page 72: Baud Rate

    ** Enter Setup Baud Rate Baud rate is the number of bits of data transmitted per second. Set the scanner’s baud rate to match the Host requirements. ** 9600 1200 19200 2400 38400 4800 57600 14400 115200 Exit Setup...

  • Page 73: Parity Check

    ** Enter Setup Parity Check ** None Even Parity Odd Parity Stop Bit ** 1 Stop Bit 2 Stop Bits Exit Setup...

  • Page 74: Data Bit

    ** Enter Setup Data Bit 8 Data Bits ** 8 Data Bits, No Parity, 1 Stop Bit 8 Data Bits, Even Parity, 1 Stop Bit 8 Data Bits, Odd Parity, 1 Stop Bit 8 Data Bits, No Parity, 2 Stop Bits 8 Data Bits, Even Parity , 2 Stop Bits 8 Data Bits, Odd Parity, 2 Stop Bits 7 Data Bits...
  • Page 75 ** Enter Setup 7 Data Bits, Even Parity, 1 Stop Bit 7 Data Bits, Odd Parity, 1 Stop Bit 7 Data Bits, Even Parity, 2 Stop Bits 7 Data Bits, Odd Parity, 2 Stop Bits Exit Setup...

  • Page 76: Usb Interface

    ** Enter Setup USB Interface When the scanner is connected to a host device through its USB interface, USB HID-KBW is enabled by default. User can switch between options – USB DATAPIPE, USB HID-KBW, USB COM Port Emulation and HID-POS, upon actual need. USB HID-KBW ** USB HID-KBW Exit Setup...

  • Page 77: Standard Keyboard

    ** Enter Setup Standard Keyboard When the USB HID-KBW feature is enabled, the scanner selects Standard Keyboard by default. Besides that, the other two options are provided: Emulate ALT+Keypad and Function Key Mapping. ** Standard Keyboard Emulate ALT+Keypad When Emulate ALT+Keypad is enabled, any ASCII character (0x00 - 0xFF) is sent over the numeric keypad no matter which keyboard type is selected.

  • Page 78: Function Key Mapping

    ** Enter Setup Function Key Mapping When Function Key Mapping is enabled, function character (0x00 - 0x1F) are sent as ASCII sequences over the numeric keypad. CTRL Make Press function key (Refer to the ASCII Function Key Mapping Table on the following page) CTRL Break Function Key Mapping Exit Setup...

  • Page 79: Ascii Function Key Mapping Table

    ** Enter Setup ASCII Function Key Mapping Table ASCII Value ASCII Value Function Key Function Key （HEX） （HEX） Exit Setup...

  • Page 80: Usb Country Keyboard Types

    ** Enter Setup USB Country Keyboard Types Keyboard layouts vary from country to country. All supported keyboard types are listed below. ** 1 - U.S. 2 - Belgium 3 - Brazil 4 - Canada 5 - Czech 6 - Denmark 7 - Finland 8 - France Exit Setup...
  • Page 81 ** Enter Setup 9 - Austria 10 - Greece 11 - Hungary 12 - Israel 13 - Italy 14 - Latin America 15 - Netherland 16 - Norway 17 - Poland 18 - Portugal Exit Setup...
  • Page 82 ** Enter Setup 19 - Romania 20 - Russia 21 - Slovakia 22 - Spain 23 - Sweden 24 - Switzerland 25 - Turkey1 26 - Turkey2 27 - UK 28 - Japan Exit Setup...

  • Page 83: Inter-Keystroke Delay

    ** Enter Setup Inter-Keystroke Delay This parameter specifies the delay between emulated keystrokes. ** No Delay Short Delay (5ms) Medium Delay (10ms) Long Delay (15ms) Exit Setup...

  • Page 84: Convert Case

    ** Enter Setup Convert Case This parameter is valid when the Standard Keyboard or Function Key Mapping is enabled. ** No Case Conversion Convert All to Upper Case Convert All to Lower Case Invert Upper and Lower Case Characters Example: When the Convert All to Lower Case feature is enabled, barcode data “AbC” is transmitted as “abc”.

  • Page 85: Emulate Numeric Keypad

    ** Enter Setup Emulate Numeric Keypad When this feature is disabled, sending barcode data is emulated as keystroke(s) on main keyboard. To enable this feature, scan the Emulate Numeric Keypad barcode. Sending a number (0-9) is emulated as keystroke on numeric keypad, whereas sending other character like “+”, “_”, “*” , “/” and “.” is still emulated as keystroke on main keyboard.

  • Page 86: Usb Com Port Emulation

    ** Enter Setup USB COM Port Emulation This feature allows the host to receive data in the way as a serial port does. However, you need to set communication parameters on the scanner to match the Host requirements. A driver is required for this feature.

  • Page 87: Usb Datapipe

    ** Enter Setup USB DataPipe A driver is required when using this protocol to communicate with the scanner. USB DataPipe Exit Setup...

  • Page 88: Hid-Pos

    ** Enter Setup HID-POS The HID-POS interface is recommended for new application programs. It can send up to 56 characters in a single USB report and appears more efficient than USB HID-KBW. Features:  HID based, no custom driver required. ...

  • Page 89: Access The Scanner With Your Program

    USB uses VID (Vendor ID) and PID (Product ID) to identify and locate a device. The VID is assigned by USB Implementers Forum. Newland’s vendor ID is 1EAB (Hex). A range of PIDs are used for each Newland product family. Every PID contains a base number and interface type (keyboard, COM port, etc.).

  • Page 90: Chapter 4 Prefix & Suffix

    ** Enter Setup Chapter 4 Prefix & Suffix Introduction After a successful barcode read, a string containing numbers, letters or symbols will be returned. In real applications, barcode data may be found insufficient for your needs. You may wish to include additional information such as barcode type, data acquisition time or delimiter in data being scanned.

  • Page 91: Custom Prefix

    ** Enter Setup Custom Prefix Enable/Disable Custom Prefix If custom prefix is enabled, you are allowed to append to the data a user-defined prefix that cannot exceed 5 characters. For example, if barcode data is “123” and custom prefix is “AB”, the Host will receive “AB123”. Enable Custom Prefix ** Disable Custom Prefix Set Custom Prefix...

  • Page 92: Aim Id Prefix

    ** Enter Setup AIM ID Prefix AIM (Automatic Identification Manufacturers) ID defines symbology identifier (For the details, see the AIM ID Table section in Appendix). If AIM ID prefix is enabled, the scanner will add the symbology identifier before the scanned data after decoding. Enable AIM ID Prefix ** Disable AIM ID Prefix Exit Setup...

  • Page 93: Code Id Prefix

    ** Enter Setup CODE ID Prefix Code ID can also be used to identify barcode type. Unlike AIM ID, Code ID is user programmable. For the information of default Code ID, see the Code ID Table section in Appendix. Enable CODE ID Prefix ** Disable CODE ID Prefix Restore All Default Code IDs Restore All Default Code IDs...
  • Page 94 ** Enter Setup Set Code ID Barcodes Set Code 128 Code ID Set UCC/EAN-128 Code ID Set AIM 128 Code ID Set EAN-8 Code ID Set EAN-13 Code ID Set ISSN Code ID Set ISBN Code ID Set UPC-E Code ID Exit Setup...
  • Page 95 ** Enter Setup Set Code ID Barcodes (continued) Set UPC-A Code ID Set Interleaved 2 of 5 Code ID Set ITF-6 Code ID Set ITF-14 Code ID Set Deutsche 14 Code ID Set Deutsche 12 Code ID Set Matrix 2 of 5 Code ID Set Industrial 25 Code ID Exit Setup...
  • Page 96 ** Enter Setup Set Code ID Barcodes (continued) Set Standard 25 Code ID Set Code 39 Code ID Set Codabar Code ID Set Code 93 Code ID Set Code 11 Code ID Set Plessey Code ID Set MSI-Plessey Code ID RSS-14 Code ID RSS-Limited...

  • Page 97: Custom Suffix

    ** Enter Setup Custom Suffix Enable/Disable Custom Suffix If custom suffix is enabled, you are allowed to append to the data a user-defined suffix that cannot exceed 5 characters. For example, if barcode data is “123” and custom suffix is “AB”, the Host will receive “123AB”. Enable Custom Suffix ** Disable Custom Suffix Exit Setup...

  • Page 98: Set Custom Suffix

    ** Enter Setup Set Custom Suffix To set a custom suffix, scan the Set Custom Suffix barcode, the numeric barcodes corresponding to the hexadecimal value of a desired suffix and the Save barcode. Note: A custom suffix cannot exceed 5 characters. Set Custom Suffix Example: Set the custom suffix to “AGE”...

  • Page 99: Terminating Character Suffix

    ** Enter Setup Terminating Character Suffix A terminating character, such as carriage return (CR) and line feed (LF), can be used to mark the end of data, which means nothing can be added after it. A terminating character suffix cannot exceeed 5 characters. Enable/Disable Terminating Character Suffix To enable/disable terminating character suffix, scan the appropriate barcode below.

  • Page 100: Set Terminating Character Suffix

    ** Enter Setup Set Terminating Character Suffix The scanner provides a shortcut for setting the terminating character suffix to 0x0D (CR) or 0x0D,0x0A (CRLF) or 0x09 (Horizontal Tab) by scanning the following barcode. Terminating Character 0x0D Terminating Character 0x0D,0x0A Terminating Character 0x09 Set Terminating Character Suffix To set other terminating character suffix, scan the Set Terminating Character Suffix barcode, the numeric barcodes corresponding to the hexadecimal value of a desired terminating character, and the...

  • Page 101: Chapter 5 Symbologies

    ** Enter Setup Chapter 5 Symbologies Introduction Every symbology (barcode type) has its own unique attributes. This chapter provides programming barcodes for configuring the scanner so that it can identify various barcode symbologies. It is recommended to disable those that are rarely used to increase the efficiency of the scanner. Global Settings Enable/Disable All Symbologies If all symbologies are disabled, the scanner can only identify programming barcodes.

  • Page 102: Code 128

    ** Enter Setup Code 128 Restore Factory Defaults Restore the Factory Defaults of Code 128 Enable/Disable Code 128 ** Enable Code 128 Disable Code 128 Exit Setup...

  • Page 103: Set Length Range For Code 128

    ** Enter Setup Set Length Range for Code 128 The scanner can be configured to only decode Code 128 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. The supported maximum length is 255 characters. If minimum length is set to be greater than maximum length, the scanner only decodes Code 128 barcodes with either the minimum or maximum length.

  • Page 104: Ucc/Ean-128

    ** Enter Setup UCC/EAN-128 Restore Factory Defaults Restore the Factory Defaults of UCC/EAN-128 Enable/Disable UCC/EAN-128 ** Enable UCC/EAN-128 Disable UCC/EAN-128 Decode as Code 128 Exit Setup...

  • Page 105: Set Length Range For Ucc/Ean-128

    ** Enter Setup Set Length Range for UCC/EAN-128 The scanner can be configured to only decode UCC/EAN-128 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. The supported maximum length is 255 characters. If minimum length is set to be greater than maximum length, the scanner only decodes UCC/EAN-128 barcodes with either the minimum or maximum length.

  • Page 106: Aim 128

    ** Enter Setup AIM 128 Restore Factory Defaults Restore the Factory Defaults of AIM 128 Enable/Disable AIM 128 Enable AIM 128 ** Disable AIM 128 Decode as Code 128 Exit Setup...

  • Page 107: Set Length Range For Aim 128

    ** Enter Setup Set Length Range for AIM 128 The scanner can be configured to only decode AIM 128 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. The supported maximum length is 255 characters. If minimum length is set to be greater than maximum length, the scanner only decodes AIM 128 barcodes with either the minimum or maximum length.

  • Page 108: Restore Factory Defaults

    ** Enter Setup EAN-8 Restore Factory Defaults Restore the Factory Defaults of EAN-8 Enable/Disable EAN-8 ** Enable EAN-8 Disable EAN-8 Transmit Check Digit EAN-8 is 8 digits in length with the last one as its check digit used to verify the integrity of the data. ** Transmit EAN-8 Check Digit Do Not Transmit EAN-8 Check Digit Exit Setup...

  • Page 109: Add-On Code

    ** Enter Setup Add-On Code An EAN-8 barcode can be augmented with a two-digit or five-digit add-on code to form a new one. In the examples below, the part surrounded by blue dotted line is an EAN-8 barcode while the part circled by red dotted line is add-on code.

  • Page 110: Add-On Code Required

    ** Enter Setup Add-On Code Required This parameter is only valid when Enable 2-Digit Add-On Code and/or Enable 5-Digit Add-On Code is selected. EAN-8 Add-On Code Required ** EAN-8 Add-On Code Not Required EAN-8 Extension Disable EAN-8 Zero Extend: Transmit EAN-8 barcodes as is. Enable EAN-8 Zero Extend: Add five leading zeros to decoded EAN-8 barcodes to extend to13 digits.

  • Page 111: 101

    ** Enter Setup EAN-13 Restore Factory Defaults Restore the Factory Defaults of EAN-13 Enable/Disable EAN-13 ** Enable EAN-13 Disable EAN-13 Transmit Check Digit EAN-13 is 13 digits in length with the last one as its check digit used to verify the integrity of the data. ** Transmit EAN-13 Check Digit Do Not Transmit EAN-13 Check Digit Exit Setup...

  • Page 112: Add-On Code

    ** Enter Setup Add-On Code An EAN-13 barcode can be augmented with a two-digit or five-digit add-on code to form a new one. In the examples below, the part surrounded by blue dotted line is an EAN-13 barcode while the part circled by red dotted line is add-on code.

  • Page 113: Add-On Code Required

    ** Enter Setup Add-On Code Required This parameter is only valid when Enable 2-Digit Add-On Code and/or Enable 5-Digit Add-On Code is selected. EAN-13 Add-On Code Required ** EAN-13 Add-On Code Not Required Exit Setup...

  • Page 114: Issn

    ** Enter Setup ISSN Restore Factory Defaults Restore the Factory Defaults of ISSN Enable/Disable ISSN Enable ISSN ** Disable ISSN Decode as EAN-13 Exit Setup...

  • Page 115: Isbn

    ** Enter Setup ISBN Restore Factory Defaults Restore the Factory Defaults of ISBN Enable/Disable ISBN Enable ISBN ** Disable ISBN Decode as EAN-13 Exit Setup...

  • Page 116: Set Isbn Format

    ** Enter Setup Set ISBN Format ** ISBN-13 ISBN-10 Exit Setup...

  • Page 117: Upc-E

    ** Enter Setup UPC-E Restore Factory Defaults Restore the Factory Defaults of UPC-E Enable/Disable UPC-E ** Enable UPC-E Disable UPC-E Transmit Check Digit UPC-E is 8 digits in length with the last one as its check digit used to verify the integrity of the data. ** Transmit UPC-E Check Digit Do Not Transmit UPC-E Check Digit Exit Setup...

  • Page 118: Add-On Code

    ** Enter Setup Add-On Code A UPC-E barcode can be augmented with a two-digit or five-digit add-on code to form a new one. In the examples below, the part surrounded by blue dotted line is a UPC-E barcode while the part circled by red dotted line is add-on code.

  • Page 119: Add-On Code Required

    ** Enter Setup Add-On Code Required This parameter is only valid when Enable 2-Digit Add-On Code and/or Enable 5-Digit Add-On Code is selected. UPC-E Add-On Code Required ** UPC-E Add-On Code Not Required Transmit System Character The first character of UPC-E barcode is the system character. Do Not Transmit System Character ** Transmit System Character Exit Setup...

  • Page 120: Upc-E Extension

    ** Enter Setup UPC-E Extension Disable UPC-E Extend: Transmit UPC-E barcodes as is. Enable UPC-E Extend: Extend UPC-E barcodes to make them compatible in length to UPC-A. Convert UPC-E to UPC-A: Extend UPC-E barcodes to make them compatible in format to UPC-A. Enable UPC-E Extend **Disable UPC-E Extend Convert UPC-E to UPC-A...

  • Page 121: Upc-A

    ** Enter Setup UPC-A Restore Factory Defaults Restore the Factory Defaults of UPC-A Enable/Disable UPC-A ** Enable UPC-A Disable UPC-A Decode as EAN-13 Exit Setup...

  • Page 122: Transmit Check Digit

    ** Enter Setup Transmit Check Digit UPC-A is 13 digits in length with the last one as its check digit used to verify the integrity of the data. ** Transmit UPC-A Check Digit Do Not Transmit UPC-A Check Digit Transmit Preamble Character Preamble characters (Country Code and System Character) can be transmitted as part of a UPC-A barcode.

  • Page 123: Add-On Code

    ** Enter Setup Add-On Code A UPC-A barcode can be augmented with a two-digit or five-digit add-on code to form a new one. In the examples below, the part surrounded by blue dotted line is a UPC-A barcode while the part circled by red dotted line is add-on code.

  • Page 124: Add-On Code Required

    ** Enter Setup Add-On Code Required This parameter is only valid when Enable 2-Digit Add-On Code and/or Enable 5-Digit Add-On Code is selected. UPC-A Add-On Code Required ** UPC-A Add-On Code Not Required Exit Setup...

  • Page 125: Interleaved 2 Of 5

    ** Enter Setup Interleaved 2 of 5 Restore Factory Defaults Restore the Factory Defaults of Interleaved 2 of 5 Enable/Disable Interleaved 2 of 5 ** Enable Interleaved 2 of 5 Disable Interleaved 2 of 5 Exit Setup...

  • Page 126: Check Digit Verification

    ** Enter Setup Check Digit Verification A check digit is optional for Interleaved 2 of 5 and can be added as the last digit. It is a calculated value used to verify the integrity of the data. Disable: The scanner transmits Interleaved 2 of 5 barcodes as is. Do Not Transmit Check Digit After Verification: The scanner checks the integrity of all Interleaved 2 of 5 barcodes to verify that the data complies with the check digit algorithm.

  • Page 127: Set Length Range For Interleaved 2 Of 5

    ** Enter Setup Set Length Range for Interleaved 2 of 5 The scanner can be configured to only decode Interleaved 2 of 5 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. The supported maximum length is 255 characters. If minimum length is set to be greater than maximum length, the scanner only decodes Interleaved 2 of 5 barcodes with either the minimum or maximum length.

  • Page 128: 118

    ** Enter Setup ITF-6 ITF-6 is a special kind of Interleaved 2 of 5 with a length of 6 characters and the last character as the check character. Restore Factory Defaults Restore the Factory Defaults of ITF-6 Enable/Disable ITF-6 By default, ITF-6 is decoded as Interleaved 2 of 5. Disable ITF-6 Enable ITF-6 But Do Not Transmit Check Digit Enable ITF-6 and Transmit Check Digit...

  • Page 129: 119

    ** Enter Setup ITF-14 ITF-14 is a special kind of Interleaved 2 of 5 with a length of 14 characters and the last character as the check character. Restore Factory Defaults Restore the Factory Defaults of ITF-14 Enable/Disable ITF-14 By default, ITF-14 is decoded as Interleaved 2 of 5. Disable ITF-14 Enable ITF-14 But Do Not Transmit Check Digit Enable ITF-14 and Transmit Check Digit...

  • Page 130: Deutsche 14

    ** Enter Setup Deutsche 14 Restore Factory Defaults Restore the Factory Defaults of Deutsche 14 Enable/Disable Deutsche 14 By default, Deutsche 14 is decoded as Interleaved 2 of 5. Disable Deutsche 14 Enable Deutsche 14 But Do Not Transmit Check Digit Enable Deutsche 14 and Transmit Check Digit Note: It is advised not to enable Deutsche 14 unless necessary, because Deutsche 14, ITF-14 and Interleaved 2 of 5 use the same encoding method and enabling them at the same time can easily cause...

  • Page 131: Deutsche 12

    ** Enter Setup Deutsche 12 Restore Factory Defaults Restore the Factory Defaults of Deutsche 12 Enable/Disable Deutsche 12 By default, Deutsche 12 is decoded as Interleaved 2 of 5. Disable Deutsche 12 Enable Deutsche 12 But Do Not Transmit Check Digit Enable Deutsche 12 and Transmit Check Digit Note: It is advised not to enable Deutsche 12 unless necessary, because Deutsche 12, ITF-12 and Interleaved 2 of 5 use the same encoding method and enabling them at the same time can easily cause...

  • Page 132: Matrix 2 Of 5 (European Matrix 2 Of 5)

    ** Enter Setup Matrix 2 of 5 (European Matrix 2 of 5) Restore Factory Defaults Restore the Factory Defaults of Matrix 2 of 5 Enable/Disable Matrix 2 of 5 ** Enable Matrix 2 of 5 Disable Matrix 2 of 5 Exit Setup...

  • Page 133: Check Digit Verification

    ** Enter Setup Check Digit Verification A check digit is optional for Matrix 2 of 5 and can be added as the last digit. It is a calculated value used to verify the integrity of the data. Disable: The scanner transmits Matrix 2 of 5 barcodes as is. Do Not Transmit Check Digit After Verification: The scanner checks the integrity of all Matrix 2 of 5 barcodes to verify that the data complies with the check digit algorithm.

  • Page 134: Set Length Range For Matrix 2 Of 5

    ** Enter Setup Set Length Range for Matrix 2 of 5 The scanner can be configured to only decode Matrix 2 of 5 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. The supported maximum length is 255 characters. If minimum length is set to be greater than maximum length, the scanner only decodes Matrix 2 of 5 barcodes with either the minimum or maximum length.

  • Page 135: Industrial 25

    ** Enter Setup Industrial 25 Restore Factory Defaults Restore the Factory Defaults of Industrial 25 Enable/Disable Industrial 25 ** Enable Industrial 25 Disable Industrial 25 Exit Setup...

  • Page 136: Check Digit Verification

    ** Enter Setup Check Digit Verification A check digit is optional for Industrial 25 and can be added as the last digit. It is a calculated value used to verify the integrity of the data. Disable: The scanner transmits Industrial 25 barcodes as is. Do Not Transmit Check Digit After Verification: The scanner checks the integrity of all Industrial 25 barcodes to verify that the data complies with the check digit algorithm.

  • Page 137: Set Length Range For Industrial 25

    ** Enter Setup Set Length Range for Industrial 25 The scanner can be configured to only decode Industrial 25 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. The supported maximum length is 255 characters. If minimum length is set to be greater than maximum length, the scanner only decodes Industrial 25 barcodes with either the minimum or maximum length.

  • Page 138: Standard 25

    ** Enter Setup Standard 25 Restore Factory Defaults Restore the Factory Defaults of Standard 25 Enable/Disable Standard 25 ** Enable Standard 25 Disable Standard 25 Exit Setup...

  • Page 139: Check Digit Verification

    ** Enter Setup Check Digit Verification A check digit is optional for Standard 25 and can be added as the last digit. It is a calculated value used to verify the integrity of the data. Disable: The scanner transmits Standard 25 barcodes as is. Do Not Transmit Check Digit After Verification: The scanner checks the integrity of all Standard 25 barcodes to verify that the data complies with the check digit algorithm.

  • Page 140: Set Length Range For Standard 25

    ** Enter Setup Set Length Range for Standard 25 The scanner can be configured to only decode Standard 25 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. The supported maximum length is 255 characters. If minimum length is set to be greater than maximum length, the scanner only decodes Standard 25 barcodes with either the minimum or maximum length.

  • Page 141: Code 39

    ** Enter Setup Code 39 Restore Factory Defaults Restore the Factory Defaults of Code 39 Enable/Disable Code 39 ** Enable Code 39 Disable Code 39 Exit Setup...

  • Page 142: Check Digit Verification

    ** Enter Setup Check Digit Verification A check digit is optional for Code 39 and can be added as the last digit. It is a calculated value used to verify the integrity of the data. Disable: The scanner transmits Code 39 barcodes as is. Do Not Transmit Check Digit After Verification: The scanner checks the integrity of all Code 39 barcodes to verify that the data complies with the check digit algorithm.

  • Page 143: Transmit Start/Stop Characters

    ** Enter Setup Transmit Start/Stop Characters Code 39 uses an asterisk (*) for both the start and the stop characters. You can choose whether or not to transmit the start/stop characters by scanning the appropriate barcode below. Transmit Start/Stop Characters Do Not Transmit Start/Stop Characters Enable/Disable Code 39 Full ASCII The scanner can be configured to identify all ASCII characters by scanning the appropriate barcode...

  • Page 144: Set Length Range For Code 39

    ** Enter Setup Set Length Range for Code 39 The scanner can be configured to only decode Code 39 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. The supported maximum length is 255 characters. If minimum length is set to be greater than maximum length, the scanner only decodes Code 39 barcodes with either the minimum or maximum length.

  • Page 145: Codabar

    ** Enter Setup Codabar Restore Factory Defaults Restore the Factory Defaults of Codabar Enable/Disable Codabar ** Enable Codabar Disable Codabar Exit Setup...

  • Page 146: Check Digit Verification

    ** Enter Setup Check Digit Verification A check digit is optional for Codabar and can be added as the last digit. It is a calculated value used to verify the integrity of the data. Disable: The scanner transmits Codabar barcodes as is. Do Not Transmit Check Digit After Verification: The scanner checks the integrity of all Codabar barcodes to verify that the data complies with the check digit algorithm.

  • Page 147: Start/Stop Characters

    ** Enter Setup Start/Stop Characters Transmit Start/Stop Characters Do Not Transmit Start/Stop Characters ** ABCD/ABCD as the Start/Stop Character ABCD/TN*E as the Start/Stop Character abcd/abcd as the Start/Stop Character abcd/tn*e as the Start/Stop Character Exit Setup...

  • Page 148: Set Length Range For Codabar

    ** Enter Setup Set Length Range for Codabar The scanner can be configured to only decode Codabar barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. The supported maximum length is 255 characters. If minimum length is set to be greater than maximum length, the scanner only decodes Codabar barcodes with either the minimum or maximum length.

  • Page 149: Code 93

    ** Enter Setup Code 93 Restore Factory Defaults Restore the Factory Defaults of Code 93 Enable/Disable Code 93 ** Enable Code 93 Disable Code 93 Exit Setup...

  • Page 150: Check Digit Verification

    ** Enter Setup Check Digit Verification Check digits are optional for Code 93 and can be added as the last two digits, which are calculated values used to verify the integrity of the data. Disable: The scanner transmits Code 93 barcodes as is. Do Not Transmit Check Digit After Verification: The scanner checks the integrity of all Code 93 barcodes to verify that the data complies with the check digit algorithm.

  • Page 151: Set Length Range For Code 93

    ** Enter Setup Set Length Range for Code 93 The scanner can be configured to only decode Code 93 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. The supported maximum length is 255 characters. If minimum length is set to be greater than maximum length, the scanner only decodes Code 93 barcodes with either the minimum or maximum length.

  • Page 152: Code 11

    ** Enter Setup Code 11 Restore Factory Defaults Restore the Factory Defaults of Code 11 Enable/Disable Code 11 Enable Code 11 ** Disable Code 11 Exit Setup...

  • Page 153: Check Digit Verification

    ** Enter Setup Check Digit Verification Check digits are optional for Code 11 and can be added as the last one or two digits, which are calculated values used to verify the integrity of the data. If the Disable option is enabled, the scanner transmits Code 11 barcodes as is. Disable ** One Check Digit, MOD11 Two Check Digits, MOD11/MOD11...

  • Page 154: Set Length Range For Code 11

    ** Enter Setup Set Length Range for Code 11 The scanner can be configured to only decode Code 11 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. The supported maximum length is 255 characters. If minimum length is set to be greater than maximum length, the scanner only decodes Code 11 barcodes with either the minimum or maximum length.

  • Page 155: Plessey

    ** Enter Setup Plessey Restore Factory Defaults Restore the Factory Defaults of Plessey Enable/Disable Plessey Enable Plessey ** Disable Plessey Exit Setup...

  • Page 156: Check Digit Verification

    ** Enter Setup Check Digit Verification Check digits are optional for Plessey and can be added as the last one or two digits, which are calculated values used to verify the integrity of the data. Disable: The scanner transmits Plessey barcodes as is. Do Not Transmit Check Digit After Verification: The scanner checks the integrity of all Plessey barcodes to verify that the data complies with the check digit algorithm.

  • Page 157: Set Length Range For Plessey

    ** Enter Setup Set Length Range for Plessey The scanner can be configured to only decode Plessey barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. The supported maximum length is 255 characters. If minimum length is set to be greater than maximum length, the scanner only decodes Plessey barcodes with either the minimum or maximum length.

  • Page 158: Msi-Plessey

    ** Enter Setup MSI-Plessey Restore Factory Defaults Restore the Factory Defaults of MSI-Plessey Enable/Disable MSI-Plessey Enable MSI-Plessey ** Disable MSI-Plessey Exit Setup...

  • Page 159: Check Digit Verification

    ** Enter Setup Check Digit Verification Check digits are optional for MSI-Plessey and can be added as the last one or two digits, which are calculated values used to verify the integrity of the data. If the Disable option is enabled, the scanner transmits MSI-Plessey barcodes as is. Disable ** One Check Digit, MOD10 Two Check Digits, MOD10/MOD10...

  • Page 160: Set Length Range For Msi-Plessey

    ** Enter Setup Set Length Range for MSI-Plessey The scanner can be configured to only decode MSI-Plessey barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. The supported maximum length is 255 characters. If minimum length is set to be greater than maximum length, the scanner only decodes MSI-Plessey barcodes with either the minimum or maximum length.

  • Page 161: 151

    ** Enter Setup RSS-14 Restore Factory Defaults Restore the Factory Defaults of RSS-14 Enable/Disable RSS-14 ** Enable RSS-14 Disable RSS-14 Transmit Application Identifier “01” ** Transmit Application Identifier “01” Do Not Transmit Application Identifier “01” Exit Setup...

  • Page 162: Rss-Limited

    ** Enter Setup RSS-Limited Restore Factory Defaults Restore the Factory Defaults of RSS-Limited Enable/Disable RSS-Limited ** Enable RSS-Limited Disable RSS-Limited Transmit Application Identifier “01” ** Transmit Application Identifier “01” Do Not Transmit Application Identifier “01” Exit Setup...

  • Page 163: Rss-Expand

    ** Enter Setup RSS-Expand Restore Factory Defaults Restore the Factory Defaults of RSS-Expand Enable/Disable RSS-Expand ** Enable RSS-Expand Disable RSS-Expand Exit Setup...

  • Page 164: Chapter 6 Safety Information

    4. If there is unusual odor, overheating or smoke when using the scanner, immediately cut off the power and disconnect the power adapter, and contact your dealer or Newland customer service center. Continued use in this case may result in fire or electric shock.

  • Page 165: Appendix

    Appendix Factory Defaults Table Parameter Factory Default Remark System Settings Barcode Programming Enabled Programming Barcode Data Do not send Scan Mode Manual Mode Manual Mode Decode Session Timeout 1-255s; 0: infinite. Decode Session Timeout 1-255s; 0: infinite. Timeout between Decodes 1.0s 0.0-25.5s To disable rereads of same...
  • Page 166 Parameter Factory Default Remark Communication Interfaces Baud Rate 9600 Parity Check None RS-232 Interface Number of Data Bits Number of Stop Bits Flow Control None Other options: DataPipe, USB USB Interface USB HID-KBW COM Port Emulation, HID-POS Input Mode Standard Keyboard USB Country Keyboard Type U.S.
  • Page 167 Parameter Factory Default Remark Symbologies Video Reverse Disabled Applicable to all symbologies. Code 128 Enabled Code 128 No less than 1 (including check Minimum Length digit) Maximum Length （ ） UCC/EAN-128 GS1-128 Enabled UCC/EAN-128 No less than 1 (including check Minimum Length digit) Maximum Length...
  • Page 168 Parameter Factory Default Remark UPC-E UPC-E Enabled Check Digit Transmit 2-Digit Add-On Code Disabled 5-Digit Add-On Code Disabled Add-On Code Not required Extend to UPC-A Disabled System Character Transmit UPC-A UPC-A Enabled Check Digit Transmit 2-Digit Add-On Code Disabled 5-Digit Add-On Code Disabled Add-On Code Not required...
  • Page 169 Parameter Factory Default Remark Matrix 2 of 5 Matrix 2 of 5 Enabled Check Digit Verification Disabled Check Digit Do not transmit No less than 2 (including check Minimum Length digit) Maximum Length Industrial 25 Industrial 25 Enabled Check Digit Verification Disabled Check Digit Do not transmit...
  • Page 170 Parameter Factory Default Remark Codabar Codabar Enabled Check Digit Verification Disabled Check Digit Do not transmit Start/Stop Characters Transmit Start/Stop Character Format ABCD/ABCD No less than 1 (including check Minimum Length digit) Maximum Length Code 93 Code 93 Enabled Check Digit Verification Enabled Check Digit Do not transmit...
  • Page 171 Parameter Factory Default Remark MSI-Plessey MSI-Plessey Disabled Check Digit Verification One check digit, MOD10 Check Digit Do not transmit No less than 2 (including check Minimum Length digit) Maximum Length RSS-14 RSS-14 Enabled AI (Application Identifier) Transmit RSS-Limited RSS-Limited Enabled AI (Application Identifier) Transmit RSS-Expand...

  • Page 172: Aim Id Table

    AIM ID Table Symbology AIM ID Remark Code 128 Standard Code 128 UCC/EAN 128 FNC1 is the character right after the start character (GS1-128) AIM 128 FNC1 is the 2nd character after the start character Standard EAN-8 ]E4….]E1… EAN-8 EAN-8 + 2-Digit Add-On Code ]E4….]E2…...
  • Page 173 Symbology AIM ID Remark Transmit barcodes as is; Full ASCII disabled; no check digit verification One check digit, MOD 43; transmit check digit One check digit, MOD 43; do not transmit check digit Code 39 Full ASCII enabled; no check digit verification Full ASCII enabled;...

  • Page 174: Code Id Table

    Code ID Table Symbology Code ID Code 128 UCC/EAN-128 AIM 128 SETTING 128 EAN-8 EAN-13 ISSN ISBN UPC-E UPC-A Interleaved 2 of 5 ITF-6 ITF-14 Deutsche 14 Deutsche 12 Matrix 2 of 5(European Matrix 2 of 5) Industrial 25 Standard 25 Code 39 Codabar Code 93...

  • Page 175: Ascii Table

    ASCII Table Char (Null char.) (Start of Header) (Start of Text) (End of Text) (End of Transmission) (Enquiry) (Acknowledgment) (Bell) (Backspace) (Horizontal Tab) (Line Feed) (Vertical Tab) (Form Feed) (Carriage Return) (Shift Out) (Shift In) (Data Link Escape) (XON) (Device Control 1) (Device Control 2) (XOFF) (Device Control 3) (Device Control 4)
  • Page 176 Char (Request to Send) (Unit Separator) (Space) (Exclamation Mark) " (Double Quote) (Number Sign) (Dollar Sign) (Percent) & (Ampersand) (Single Quote) (Left / Opening Parenthesis) (Right / Closing Parenthesis) (Asterisk) (Plus) (Comma) (Minus / Dash) (Dot) (Forward Slash) (Colon) (Semi-colon) <...
  • Page 177 Char > (Greater Than) (Question Mark) (AT Symbol) (Left / Opening Bracket) (Back Slash) (Right / Closing Bracket)
  • Page 178 Char (Caret / Circumflex) (Underscore) (Grave Accent) (Left/ Opening Brace) (Vertical Bar) (Right/Closing Brace) (Tilde) (Delete)

  • Page 179: Digit Barcodes

    Digit Barcodes 0 ~ 5...
  • Page 180 6~ 9...
  • Page 181 A ~ F...

  • Page 182: Save/Cancel Barcodes

    Save/Cancel Barcodes After reading numeric barcode(s), you need to scan the Save barcode to save the data. If you scan the wrong digit(s), you can either scan the Cancel the Last Digit barcode and then the correct digit, or scan the Cancel All Digits barcode and then the digits you want.

  • Page 183: F1~F12

    F1~F12 When the USB HID-KBW feature is enabled, scanning one of the following barcodes will send the corresponding function key. F1~F6...
  • Page 184 F7~F12...
  • Page 185 Newland Auto-ID Tech. Co., Ltd. (Headquarters) 3F, Building A, No.1, Rujiang West Rd., Mawei, Fuzhou, Fujian, China 350015 Tel: +86 - (0) 591-83978605 Fax: +86 - (0) 591-83979216 E-mail: contact@nlscan.com Web: www.newlandaidc.com Newland Europe BV Rolweg 25, 4104 AV Culemborg, The Netherlands...
