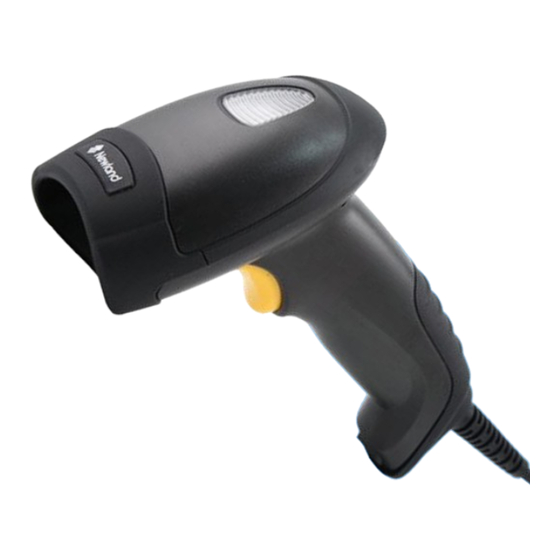

Newland NLS-HR15XX-3E User Manual

Nls-hr15 series cordless 1d barcode scanner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

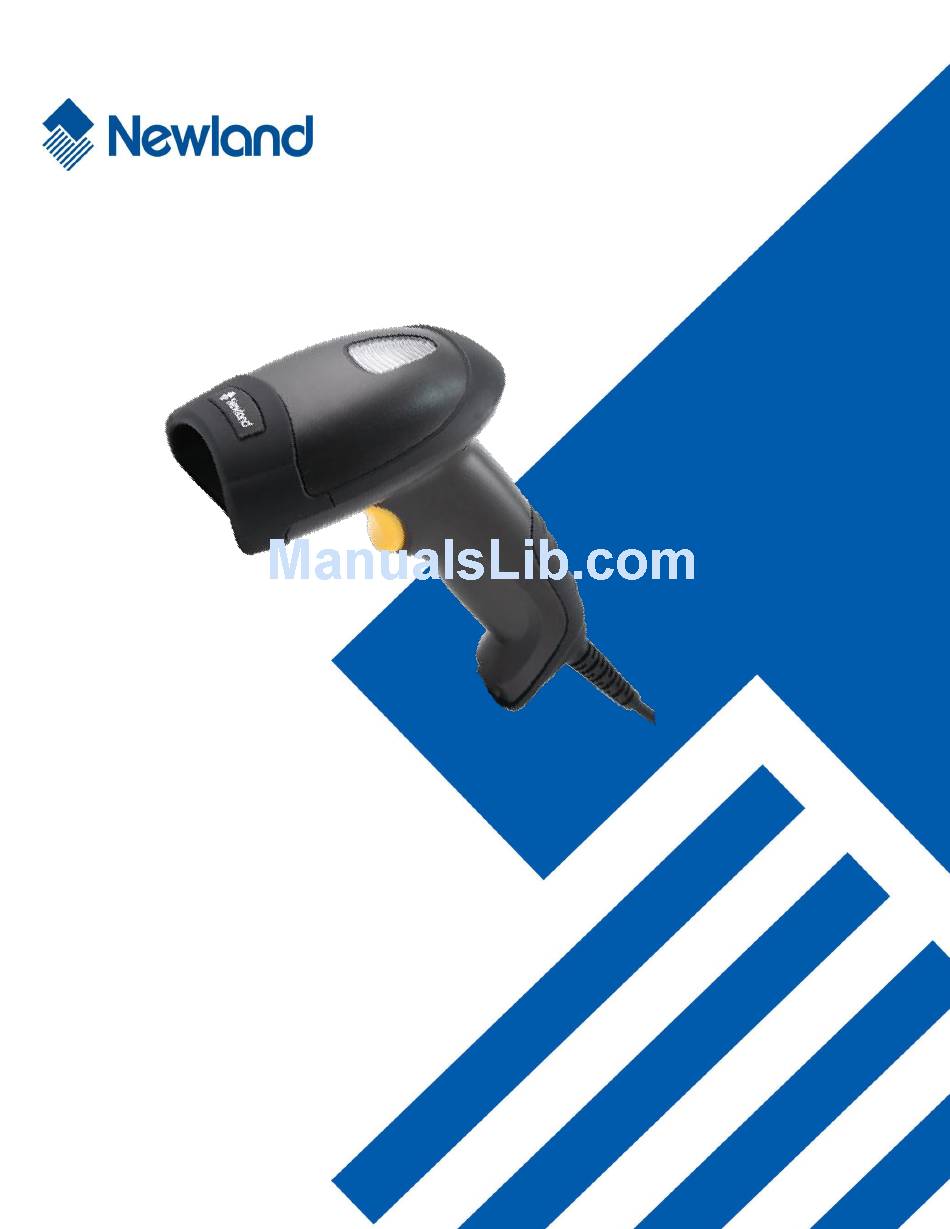

NLS-HR15Series
NLS-HR15XX-3E
Cordless 1D Barcode Scanner
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NLS-HR15XX-3E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Newland NLS-HR15XX-3E

Summary of Contents for Newland NLS-HR15XX-3E

  • Page 1 NLS-HR15Series NLS-HR15XX-3E Cordless 1D Barcode Scanner User Guide...

  • Page 2: Revision History

    Do not disassemble the device or tearing the seal label on the device. Otherwise, FuJian Newland Auto-ID Tech. Co., Ltd. does not assume responsibility for the warranty or replacement.

  • Page 3: Table Of Contents

    Table of Contects Preface ..........................................1 Introduction ........................................ 1 Chapter Descriptions ....................................1 Document Set ......................................1 Chapter 1 Getting Started ....................................2 Introduction ........................................ 2 Unpacking ........................................2 Product OverView..................................... 2 CD15 Cradle ......................................3 Communication mode ....................................3 CD15 Cradle Interface Definition ................................
  • Page 4 SetupProcess Flow ..................................17 Default Setup ......................................18 Factory Default Setting .................................. 18 Work Mode Selection ..................................... 18 Power off Timer ....................................19 Reading Mode ......................................19 Manual Scanning Mode ................................. 19 Auto Scanning Mode ..................................20 Intermittent Reading Mode ................................21 Sense Reading Mode ..................................
  • Page 5 Add Custom Prefix or Not ................................35 Define the Custom Prefix ................................36 AIM ID Prefix ......................................36 Code ID Prefix ......................................37 Custom Suffix ......................................37 Add Custom suffix or Not ................................37 Define the Custom suffix ................................37 End Mark Suffix ......................................
  • Page 6 Set Whether or not to Read 5-Digit Extracode ........................... 49 Extended Setup ....................................49 ISSN ......................................... 50 Restore Default Value ..................................50 Allow to Read ISSN or not................................50 CodeID Setup ....................................50 ISBN ......................................... 51 Restore Default Value ..................................51 Allow to Read ISBN or not................................
  • Page 7 Allow to Read Deutsche14 or not ..............................62 CodeID Setup ....................................62 Deutsche 12 ......................................62 Restore the Default Value ................................62 Deutsche 12 Allow to Read Deutsche 12 or not......................... 63 CodeID Setup ....................................63 COOP 25(Japanese Matrix 2 of 5) ............................... 64 Restore the Default Value ................................
  • Page 8 Allow to Read Codabar or not ............................... 75 CodeID Setup ....................................75 Check Setup ....................................76 Start and Stop Character Setup ..............................77 Set the Barcode Reading Length ..............................77 Code 93 ........................................78 Restore the Default Value ................................78 Allow to Read Code 93 or not ...............................
  • Page 9 CodeID Setup ....................................89 Chapter 7 Appendix ....................................... 90 Default Setup Table ....................................90 AIM ID Table ......................................99 CodeID Table ......................................101 Data Barcode ......................................102 Save and Abort the Setup ................................... 103...

  • Page 11: Preface

    Preface Introduction This manual provides information about using theNLS-HR15 series1D barcode cordlessscanner:NLS-HR15XX-3E. (Hereinafter refer to as ―HR15 cordless scanner‖) Chapter Descriptions  Chapter1,Getting Started :Generaldescription of HR15 cordless scanner includeding all the parameters of HR15 cordless scanner.  Chapter2, General Configuration : This chapter introduces the method of how to set the HR15 cordless scanner.

  • Page 12: Chapter 1 Getting Started

    2D barcode such as PDF417 and the MicroPDF17. Based on the self-independent technology Newland, HR15 cordless scanner is able to perform rapid image acquisitionand and accurate decoding; it can provide the customers with best service. HR15 cordless scanner is designed in accordance with the human engineering, which makes it easier and more comfortable to use.

  • Page 13: Cd15 Cradle

    CD15 Cradle The main parts of CD15 cradle are shown in the following picture. Button Definition： P：Batch Transmission M： Pair/Search LED Indicator Definition： Blue：Wireless Network Green： 4 Levels Power Indicator Communication mode There are 3 types of communication mode: Synchronized, Asynchronized (factory default) and Batch mode.

  • Page 14: Cd15 Cradle Interface Definition

     Synchronized mode: HR15 within wireless coverage area, barcode data will transfer to the host PC immediately after successful decoded, and fail transfer when out of the coverage area.  Asynchronized mode: HR15 within wireless coverage area, the barcode data will be transmitted to the host PC immediately after successful decoded.

  • Page 15: Usingusb Cable

     USB interface on the host  RS232 RS232 interface on the host Please check the port on the host and purchase the right cable. UsingUSB Cable Connect the CD15 crdle with host PC through USB cable. Plug the RJ45 connector into CD15 communication port. Plug the USB connector into host PC USB port.

  • Page 16: Using Rs232 Cable

    Using RS232 Cable Connecting the CD15 cradle with host through RS232 cable: Plug the RJ45 connector into HR15 scanner. Plug the RS232 connector into Host. Connect the RS232 cable with power adapter. Power-on, Power-off, Sleep, Reboot Power-on Connect the HR15 with the host, the HR15 will power on automatically (factory default). Power-off There is three ways to turn off the scanner.

  • Page 17: Reboot

    Reboot If the HR15 no response or abnormal, please pull out the cable from Host PC then plug again to reboot the HR15. Reading Window Maintenance  The scanning window should keep clean.  Avoid hard and rough objects to clean the reading window that will easy to cause the damage or scratch. ...

  • Page 18: Reading Depth Of Field

    Reading Depth of Field...

  • Page 19: Specification

    Specification Performance Light Source 620nm Visible Red LED Scan Pattern CCD linear image Code128, EAN-13, EAN-8, Code39,UPC-A, UPC-E, Codabar, Interleaved 2 of 5, Symbologies ISBN,Code 93, UCC/EAN-128, GS1 Databar, PDF417, MicroPDF417 etc. (Cordless model reading PDF417/MicroPDF417data length is less than 255 bytes) ≥...

  • Page 20: Overview

    Test condition: Code39, Data length=3bytes,Minimum space width=10mil, Width radio=2.5:1, PCS=0.8, Barcode height=11mm, Testing distance=120mm,Envirmenttemperature =23℃, Envirment light Illumination = 200 LUX Overview Left View The picture below is the left view of HR15 scanner. Front View The picture below is the front view of HR15 scanner. Vertical View The picture below is the vertical view of HR15 scanner.

  • Page 21: Cd15Ceadle Preview

    CD15Ceadle Preview Barcode Reading  Make sure the scanner, data cable and power are properly connectedbefore turn on the power.  Pressing the trigger to activate the illumination light, then the red illuminating line will appear.  For the same batch of barcode, the scanner will keep a very high success ratio in certain distance, which can be regarded as the optimal scanning distance.order to find the optimal scanning distance.

  • Page 23: Chapter 2 General Configuration

    【Start Setup】 Chapter 2 General Configuration Introduction There are two ways to setup the barcode engine. Setting Barcode To used reading a series of special barcode to setting the barcode engine. In the following sections, we will introduce the available set of options and features and provide a corresponding setting code. Setting Command To used PC to send the setting command string to setting the barcode engine.

  • Page 24: Use The Setting Barcodes

    【Start Setup】 Use the Setting Barcodes  The setup function will be activated by reading the ―Start Setup‖ barcode.The procedure of configurating can be done by reading more than one setup barcodes.  If any itme or function needs more parameters, such as check byte, please see the last section in this chapter. ...

  • Page 25: Use The Setup Command

    【Start Setup】 Use the Setup Command The setup command is based on the communication serial port; it is meant to use the visible charaters from 0x20 to 0x7D to describe all the content. Setup State When the function setup is carried out through serial communication mode, the device must be set into the ―setup state‖; in such state, the device only accept, process and respond the command from serial communication.
  • Page 26 【Start Setup】 D390ADC8D38FF5E6D99DAA|E1DFA587}” If the setting command contains parameters, then the command will be combined according to the command system definition. For example: The combined command string which is stop by 0x0D and 0x0A. The combined sending commands are: ―#99904112;#99900000;#99900015;#99900000;#99900012;#99900020;‖. 【Exit Setup】...

  • Page 27: Setupprocess Flow

    【Start Setup】 SetupProcess Flow 【Exit Setup】...

  • Page 28: Default Setup

    【Start Setup】 Default Setup Factory Default Setting All the scanners have the factory default setting, by reading the ―Restore to Factory Default‖ barcode, the scanner will restore the factory default. 【Restore to Factory Default】 Work Mode Selection 【Power Off】 【Reboot】 【Test mode】...

  • Page 29: Power Off Timer

    【Start Setup】 Power off Timer The HR15 cordless scannerwill power-off automatically if it hibernates overtime (default: 5 minutes) 【Auto power off after 5 minutes in sleep mode.】 【Auto power off after 10 minutes in sleep mode】 【Auto power off after 20 minutes in sleep mode.】 【Auto power off after 30 minutes in sleep mode】...

  • Page 30: Auto Scanning Mode

    【Start Setup】 Auto Scanning Mode Press the trigger after setup, the scanner will automatically startthe next scan after finish a successful reading; the scanner will stop until the trigger is pressed again. In the default mode, it is not allowed to repeatedly read the same barcode. 【Auto Scanning Mode】...

  • Page 31: Intermittent Reading Mode

    【Start Setup】 Intermittent Reading Mode Device will intermittent reading the barcode. Whether reading successful or not, the reading twice intervals are fixed, intermittent time default value is 1sec, this value can be change. The length of reading time is fixed on 100 ms. 【Intermittent Reading】...

  • Page 32: Continuous Reading Mode

    【Start Setup】 【Set the Barcode Reading Time】 【Set the Scanning Time Intervals】 The customer can select the sensitity according to the environmrnt, in order to increase the reading efficiency. 【High Sensitivity】 【Low Sensitivity】 【Medium Sensitivity】 【Custom Sensitivity】 Sensitivity Setup in the Sense Mode It can be set in 16 levels from 0 to F, the samller the value, the higher the sensibility.

  • Page 33: Extended Sense Reading Mode

    【Start Setup】 【Continuous Reading】 The scanner can set the time interval of scanning in the continuous reading mode. 【Time Interval of Scanning】 Note：In the continuous reading mode, the time interval of scanning is in unit of 500ms, the parameter ranges from 0 to 7500ms Extended Sense Reading Mode The device will to check the environmental change in front of the scanning window.

  • Page 34: Security Level Setup

    【Start Setup】 To stop barcode scanning by sending the stop command in the terminal (such as PC) or reading the ―Stop Simulating Trigger‖, and require a 2-Digit character passback（such as 0A,0X,etc.,） 【Begin Simulating Trigger】 【Commnad Triggered Scanning】 【Stop Simulating Trigger】 If the reading fails, the scanner will send a symbol to describe that the reading is not successful.

  • Page 35: Decoding Sound Setup

    【Start Setup】 Decoding Sound Setup 【Turn off Decoding Audio】 【Intermediate Frequency - Weak】 【High Frequency - Laud】 【Low Frequency - Laud】 【High Frequency - Median】 【Low Frequency - Weak】 【High Frequency - Weak】 【150ms Sound Length】 【Intermediate Frequency - Laud】 【100ms Sound Length】...

  • Page 36: Other Setup

    【Start Setup】 Other Setup Activate/Abort Temporary Mute 【Active Temporary Mute】 【Exit Temporary Mute】 【Exit Setup】...

  • Page 37: Chaper3 Inquiry Command

    【Start Setup】 Chapter 3 Inquiry Command Introduction In order to inquire, the HR15 cradle information can feed back to the host by reading the setup barcode. 【Inquire all the Information】 【Inquire the Release Date】 【Inquire the Firmware Information】 【Inquire the Product Name】 【Inquire the Serial Number】...

  • Page 38: Inquire The Wireless Module Information

    【Start Setup】 Inquire the Product-Name of the Cradle Inquire the Wireless Module Information In order to inquire, the HR15 cradle information can feed back to the host by reading the setup barcode. Inquire the numbers of barcodes in memory Clear the barcodes in memory Inquire the State of the Wireless Module 【Exit Setup】...

  • Page 39: Chapter 4 Communication Setup

    【Start Setup】 Chapter 4 Communication Setup HR15 Communication Mode Setup Communication modes include: Synchronous, Asynchronous and Batch mode.  Synchronous mode: the HR15 will transmit the barcode data to the CD cradle after collecting when the network is connected. If there is no network connection, the transmission will fail. ...
  • Page 40 【Start Setup】 【9600】 【1200】 【2400】 【4800】 【14400】 【19200】 【38400】 【57600】 【115200】 【Exit Setup】...

  • Page 41: Check Setup

    【Start Setup】 Check Setup 【No Check】 【Even Check】 【Odd Check】 Stop Bit 【1 Stop Bit】 【2 Stop bits】 Flow Control Setup No Flow Control CTS Flow Control RTS Flow Control RTS_CTS Flow Control 【Exit Setup】...

  • Page 42: Data Bit

    【Start Setup】 Data Bit 8 Data Bits 8 Data Bits, no Check, 2 Stop Bit 8 Data Bits, no Check, 1 Stop Bit 8 Data Bits, Even Check, 2 Stop Bit 8 Data Bits, Even Check, 1 Stop Bit 8 Data Bits, Odd Check, 2 Stop Bit 8 Data Bits, Odd Check, 1 Stop Bit 7 Data Bits, Even Check, 2 Stop Bit 7 Data Bits...

  • Page 43: Cd15 Cradle Usb Function Setup

    【Start Setup】 CD15 Cradle USB Function Setup USB Virtual Keyboard Function USB Virtual Keyboard Function USB Virtual Serial Port Function USB Virtual Serial Port Function Keyboard Function Setup Keyboard Layout American English Italy Japanese Norway Danish Spanish Finland Turkey Q 【Exit Setup】...

  • Page 44: Set The Delay Between Characters

    【Start Setup】 France 11st Britain Turkey F Set the Delay between Characters The range of the delay time between characters is from 0 to 75 ms, it takes 5ms as one level, totally 15 levels. The default value is 0ms. Delay Setup Between Characters Character Conversion No Conversion...

  • Page 45: Chapter 5 Data Format Setup

    【Start Setup】 Chapter 5 Data Format Setup Introduction After successful barcode reading, the customer will receive a string of data which can be numbers, English characters symbols and so on, this string of data is the data information included in the barcode. The barcode data information may not be enough in the application, or the data included in the barcode can not meet your requirement.If you want to know from which type of barcode comes out this string of data, or in which date the barcode data is scanned, or you hope that the text in which the barcode is recorded can perform automatical change lines after one...

  • Page 46: Define The Custom Prefix

    【Start Setup】 For example, it is allowed to add custom prefix and set the prefix to character string ―AB‖, by reading the barcode with data ―123‖, the scanner adds ‖AB‖ before ―123, and the host will receive ―AB123‖. It is not Allow to Add Custom Prefix Allow to Add Custom Prefix Define the Custom Prefix Read the ―Set the Custom Prefix‖...

  • Page 47: Code Id Prefix

    【Start Setup】 It is not Allow to Add AIMID Prefix Allow to Add AIMID Prefix Code ID Prefix Except for using AIM prefix to identify different barcode, the customers also can use CodeID prefix to perform the same function. Different from the AIM prefix, the customer can define the CodeId prefix corresponding to every kind of barcode. The CodeID of all the barcodes includes one or two characters, which must be alphabet and can not be set as numbers, invisible character or interpunction.

  • Page 48: End Mark Suffix

    【Start Setup】 which will be set, according to priority. Set the Custom suffix For example: Set the custome suffix to ―AGE‖ (the hexadecimal value is 0x41/0x47/0x45) 1. Read the ―Start Setup‖ barcode. 2. Read the ―Set the Custom Suffix‖ barcode. 3.
  • Page 49 【Start Setup】 Set the end mark suffix to 0x0D, ,and make it can be sent Set the End Mark Suffix Set the end mark suffix to 0x0D,0x0A ,and make it can be sent For Example: Set the end mark of Windows Operation System to ―newline‖ Read the ―Start Setup‖...

  • Page 50: Chapter 6 Barcode Parameter Setup

    【Start Setup】 Chapter 6 Barcode Parameter Setup Introduction Every kind of barcode has its own special character; the customer can adjust the scanner to suit the character changes by the setup barcode introduced in this chapter. The customer can also forbid the scanner to read the barcode types which are not used in order to enhance its working performance.

  • Page 51: Set The Barcode Reading Length Limit

    【Start Setup】 CodeID Setup Example: Set the CodeID of Code 128 to ―p‖ (the hexadcimal value is 0x70): Read the ―Start Setup‖ barcode. Read the ―CodeID Setup‖ barcode. Read the numeric barcode ―7‖, ―0‖ (see the appendix—numeric barcode) Read the ‖Save‖ (see the appendix—numeric barcode) Read the ―Exit Setup‖...

  • Page 52: Ucc/Ean-128

    【Start Setup】 Read the ―Exit Setup‖ barcode. UCC/EAN-128 Restore Default Value By reading the barcode, the parameter setup of UCC/EAN-128 will be restored to the factory default state. Restore the Default Setup Value of UCC/EAN-128 Allow to Read UCC/EAN-128 or not Allow to Read UCC/EAN-128 Prohibit Reading UCC/EAN-128 Note: the scanner will become unable to read UCC/EAN-128 by reading the setup barcode ―Prohibit Reading...

  • Page 53: Set The Barcode Reading Length

    【Start Setup】 Read the numeric barcode ―7‖, ―0‖ (see the appendix—numeric barcode) Read the ―Save‖ barcode.(see the appendix—numeric barcode) Read the ―Exit Setup‖ barcode. Set the Barcode Reading Length The scanner is only able to read the UCC/EAN-128 whose tramsmission content length is in the limited range, the range is consisted of the maximum value and minimum value in units of character (the maximum value and minimum value also included), The UCC/EAN-128 exceeds the range can not be read or transmitted.

  • Page 54: Aim 128 Allow To Read Aim-128 Or Not

    【Start Setup】 Restore the Default Setup Value of UCC/EAN-128 AIM 128 Allow to Read AIM-128 or not Allow to Read AIM-128 Prohibit Reading AIM-128 Note:the scanner will become unable to read AIM-128 by reading the setup barcode ―Prohibit Reading AIM-128‖, thus, if the scanner is unable to read the AIM-128, please try to read the setuo barcode ―allow to read AIM-128‖.

  • Page 55: Restore Default Value

    【Start Setup】  Read the barcode of ―Set the Minimum Length Limit‖ to adjust the minimum length limit.  Read the barcode of ―Set the Maximum Length Limit‖ to adjust the maximum length limit Set the Maximum Length Limi Set the Minimum Length Limit Note：the maximum length limit of any 1D barcode must not exceed 255, if the maximum length is shorter than the minimum length, then the scanner is only able to read the barcodes with the minimum length and the the maximum length;...

  • Page 56: Code Id Setup

    【Start Setup】 Note:the scanner will become unable to read EAN-8 by reading the setup barcode ―Prohibit Reading EAN-8‖, thus, if the scanner is unable to read the EAN-8, please try to read the setuo barcode ―allow to read EAN-8‖. Code ID Setup To activate the setup function by reading ―CodeID setup‖, then read the hexadcimal value inaccordance with the character which will be set to the CodeID.

  • Page 57: Set Whether Or Not To Send The Check Digit

    【Start Setup】 Do not read the 5-Digit Extracode Allow to Read 5- Digit Extracode The Barcode Must Include 5-Digit Extracode Note:  By setting ―Allow to Read 2-Digit Extracode‖, the scanner can read the new barcode consisted of normal barcode and extracode, and the normal barcode without extracode.

  • Page 58: Set Whether Or Not To Send The Check Digit

    【Start Setup】 Allow to Read EAN-13 Prohibit Reading EAN-13 Note:the scanner will become unable to read EAN-13 by reading the setup barcode ―Prohibit Reading EAN-13‖, thus, if the scanner is unable to read the EAN-13, please try to read the setuo barcode ―allow to read EAN-13‖. Set Whether or not to Send the Check Digit The data of EAN-13 barcode is fixed 13 digit, the 13rd bit is the check bit which is used in checking the correctness of alll the 13 digit.

  • Page 59: Set Whether Or Not To Read 2-Digit Extracode

    【Start Setup】 Set Whether or not to Read 2-Digit Extracode 2-Digit extended code means to add 2-digit numeric barcode behind the normal barcode. Do not read the 2-Digit Extracode Allow to Read 2-Digit Extracode The Barcode Must Include 2-Digit Extracode Set Whether or not to Read 5-Digit Extracode 5-Digit extended code means to add 5-Digit numeric barcode behind the normal barcode.

  • Page 60: Issn

    【Start Setup】  Extend the Barcode into 13-Digits EAN-13, and lead by 0, means extend the data length but keep the barcode type unchanged.  Extend the Barcode and Transfer into EAN-13, means extend the barcode type and data length. Do not Extend the Barcode into 13-Digit EAN-13 Extend the Barcode into 13-Digit EAN-13, and lead by 0 Extend the Barcode and Transfer into EAN-13...

  • Page 61: Isbn

    【Start Setup】 CodeID Setup Example: Set the CodeID of ISSN to ―p‖ (the hexadcimal value is 0x70). Read the ―Start Setup‖ barcode. Read the ―CodeID Setup‖ barcode. Read the numeric barcode ―7‖, ―0‖ (see the appendix—numeric barcode) Read the ―Save‖ barcode.(see the appendix—numeric barcode) Read the ―Exit Setup‖...

  • Page 62: Codeidsetup

    【Start Setup】 CodeIDSetup To activate the setup function by reading ―CodeID setup‖, then read and save the hexadcimal value inaccordance with the character which will be set to the CodeID. CodeID Setup Example: Set the CodeID of ISBN to ―p‖ (the hexadcimal value is 0x70). Read the ―Start Setup‖...

  • Page 63: Codeid Setup

    【Start Setup】 digit. Send the Check Digit Do not Send the Check Digit CodeID Setup To activate the setup function by reading ―CodeID setup‖, then read and save the hexadcimal value inaccordance with the character which will be set to the CodeID. CodeID Setup Example: Set the CodeID of UPC-Eto ―p‖...

  • Page 64: Set Whether Or Not To Read 5-Digit Extracode

    【Start Setup】 Set Whether or not to Read 5-Digit Extracode 5-Digit extended code means to add 5-Digit numeric barcode behind the normal barcode. Do not read the 5-Digit Extracode Allow to read the 5-Digit Extracode The Barcode Must Include 5-Digit Extracode Note: ...

  • Page 65: Upc-A

    【Start Setup】 Do not Extend the Barcode Infornmation Extend the Barcode Infornmation into UPC-A Extend the Barcode Infornmation and Type into UPC-A UPC-A Restore Default Value By reading the barcode, the parameter setup of UPC-A will be restored to the factory default state. Restore the Default Setup Value of UPC-A Allow to Read UPC-A or not Allow to Read UPC-A...

  • Page 66: Set Whether Or Not To Transimit The Check Digit

    【Start Setup】 1. Read the ―Start Setup‖ barcode. 2. Read the ―CodeID Setup‖ barcode. 3. Read the numeric barcode ―7‖, ―0‖ (see the appendix—numeric barcode) 4. Read the ―Save‖ barcode.(see the appendix—numeric barcode) 5. Read the ―Exit Setup‖ barcode. Set Whether or not to Transimit the Check Digit The barcode data of UPC-A is fixed of 13 digit, the 13 digit is the check digit.

  • Page 67: Set Whether Or Not To Read 5-Digit Extracode

    【Start Setup】 Set Whether or not to Read 5-Digit Extracode 5-Digit extended code means to add 5-digit numeric barcode behind the normal barcode Do not read the 5-Digit Extracode Allow to Read 5-Digit Extracode The Barcode Must Include 5-Digit Extracode Note: ...

  • Page 68: Code Id Setup

    【Start Setup】 Interleaved 2 of 5‖, thus, if the scanner is unable to read the Interleaved 2 of 5, please try to read the setuo barcode ―allow to read Interleaved 2 of 5‖. Code ID Setup To activate the setup function by reading ―CodeID setup‖, then read the hexadcimal value inaccordance with the character which will be set to the CodeID.

  • Page 69: Set The Barcode Reading Length

    【Start Setup】 Note: by setting ―do not send the check digit‖, if the data length except for the 1 character check digit is less than the minimum barcode reading limit, the barcode reading will be failed. (For example: the scanner set the the minimum barcode reading length of Interleaved2 of 5 to 4 characters and ―do not send check digit‖, in such circumstances,the scanner is not able to read the Interleaved2 of 5 with 4 characters.

  • Page 70: Code Id Setup

    【Start Setup】 Note: if the setup of ITF-6 confilits with the setup of Interleaved2 of 5.for example, reading ITF-6 is allowed, but reading Interleaved2 of 5 is not, according to the priority principle of ITF-6, the Interleaved2 of 5 with the barcode length of 6 characters and the last character as the check character can be read, but other Interleaved2 of 5 barcodes can not be read.

  • Page 71: Codeidsetup

    【Start Setup】 Prohibit Reading ITF-14 Allow to Read ITF-14 and Transmit the Check Digit Note: if the setup of ITF-14confilits with the setup of Interleaved2 of 5, for example, reading ITF-14 is allowed, but reading Interleaved2 of 5 is not; according to the priority principle of ITF-14, the Interleaved2 of 5 with the barcode length of 14 characters and the last character as the check character can be read, but other Interleaved2 of 5 barcodes can not be read.

  • Page 72: Allow To Read Deutsche14 Or Not

    【Start Setup】 Allow to Read Deutsche14 or not Allow to Read Deutsche14,but do not send the check digit Prohibit Reading Deutsche14 Allow to Read Deutsche14 and send the check digit Note: the scanner will become unable to read Deutsche14 by reading the setup barcode ―Prohibit Reading Deutsche14‖, thus, if the scanner is unable to read the Deutsche14, please try to read the setuo barcode ―allow to read Deutsche14‖.

  • Page 73: Deutsche 12 Allow To Read Deutsche 12 Or Not

    【Start Setup】 Restore the Default Setup Value of Deutsche12 Deutsche 12 Allow to Read Deutsche 12 or not Allow to Read Deutsche12,but do not send the check digit Prohibit Reading Deutsche12 Allow to Read Deutsche12 and send the check digit Note: the scanner will become unable to read Deutsche12 by reading the setup barcode ―Prohibit Reading Deutsche12‖, thus, if the scanner is unable to read the Deutsche12, please try to read the setuo barcode ―allow to read Deutsche12‖.

  • Page 74: Coop 25(Japanese Matrix 2 Of 5)

    【Start Setup】 COOP 25(Japanese Matrix 2 of 5) Restore the Default Value By reading the barcode, the parameter setup of COOP25 will be restored to the factory default state Restore the Default Setup Value of COOP25 Allow to Read COOP 25 or not Allow to Read COOP25 Prohibit Reading COOP25 Note: the scanner will become unable to read COOP25 by reading the setup barcode ―Prohibit Reading UCC/EAN-128‖,...

  • Page 75: Check Setup

    【Start Setup】 Check Setup COOP25 barcode data does not compulsively include the check digit, if check digit exists, then it is the last character. Check digit is calculated according to all the datas, for checking if the data is correct or not. ...

  • Page 76: Matrix 2 Of 5 (European Matrix 2 Of 5)

    【Start Setup】 minimum length, then the scanner is only able to read the barcodes with the minimum length and the the maximum length; if the maximum length equals to the minimum length, then the scanner is only able to read the barcode with such length. Matrix 2 of 5 (European Matrix 2 of 5) Restore the Default Value By reading the barcode, the parameter setup of Matrix2 of 5 will be restored to the factory default state.

  • Page 77: Check Setup

    【Start Setup】 Check Setup Matrix 2of 5 barcode data does not compulsively include the check digit, if check digit exists, then it is the last character. Check digit is calculated according to all the datas, for checking if the data is correct or not. ...

  • Page 78: Industrial 25

    【Start Setup】 Note：the maximum length limit of any 1D barcode must not exceed 255, if the maximum length is shorter than the minimum length, then the scanner is only able to read the barcodes with the minimum length and the the maximum length; if the maximum length equals to the minimum length, then the scanner is only able to read the barcode with such length.

  • Page 79: Check Setup

    【Start Setup】 3. Read the numeric barcode ―7‖, ―0‖ (see the appendix—numeric barcode) 4. Read the ―Save‖ barcode.(see the appendix—numeric barcode) 5. Read the ―Exit Setup‖ barcode. Check Setup Industrial 25 barcode data does not compulsively include the check digit, if check digit exists, then it is the last character. Check digit is calculated according to all the datas, for checking if the data is correct or not.

  • Page 80: Standard 25

    【Start Setup】 Set the Minimum Length Limit Set the Maximum Length Limit Note：the maximum length limit of any 1D barcode must not exceed 255, if the maximum length is shorter than the minimum length, then the scanner is only able to read the barcodes with the minimum length and the the maximum length; if the maximum length equals to the minimum length, then the scanner is only able to read the barcode with such length.

  • Page 81: Check Setup

    【Start Setup】 Code ID Setup Example: Set the CodeID ofStandard 25to ―p‖ (the hexadcimal value is 0x70). Read the ―Start Setup‖ barcode. 2. Read the ―CodeID Setup‖ barcode. 3. Read the numeric barcode ―7‖, ―0‖ (see the appendix—numeric barcode) 4. Read the ―Save‖ barcode.(see the appendix—numeric barcode) 5.

  • Page 82: Set The Barcode Reading Length

    【Start Setup】 Set the Barcode Reading Length The scanner is only able to read the Standard 25 with tramsmission content length falls in the limited range, the range is consisted of the maximum value and minimum value in units of character, the Standard25 exceeds the range can not be read or transmitted.

  • Page 83: Codeid Setup

    【Start Setup】 CodeID Setup To activate the setup function by reading ―CodeID setup‖, then read the hexadcimal value inaccordance with the character which will be set to the CodeID. Code ID Setup Example: Set the CodeID ofCode39to ―p‖ (the hexadcimal value is 0x70). 1.

  • Page 84: Set Whether To Send The Start And Stop Character Or Not

    【Start Setup】 Set whether to Send the start and stop character or not There are two characters of ―*‖before and after the Code39 barcode data as the start and stop character. The system can set whether or not to send the start and stop character after successful barcode reading. Send the Start and the Stop Character Do not Send the Start and the Stop Character Set the Reading Range of ASCII Code...

  • Page 85: Codabar

    【Start Setup】 maximum length; if the maximum length equals to the minimum length, then the scanner is only able to read the barcode with such length. Example: The steps of set the scanner read the Code 39 with barcode length between 8 to 12 characters. 1.

  • Page 86: Check Setup

    【Start Setup】 Code ID Setup Example: Set the CodeID ofCodabarto ―p‖ (the hexadcimal value is 0x70). 1. Read the ―Start Setup‖ barcode. 2. Read the ―CodeID Setup‖ barcode. 3. Read the numeric barcode ―7‖, ―0‖ (see the appendix—numeric barcode) 4. Read the ―Save‖ barcode.(see the appendix—numeric barcode) 5.

  • Page 87: Start And Stop Character Setup

    【Start Setup】 Start and Stop Character Setup Do not Send the Start and Stop Character Send the Start and Stop Character Set ―ABCD/ABCD‖ as the Start and Stop Character Set ―ABCD/TN*E‖ as the Start and Stop Character Set ―abcd/abcd‖ as the Start and Stop Character Set ―abcd/tn*e‖...

  • Page 88: Code 93

    【Start Setup】 4. Read the ―Save‖ barcode.(see the appendix—numeric barcode) 5. Read the barcode of ―Set the Maximum Length Limit‖. 6. Read the numeric barcode ―1‖. 7. Read the numeric barcode ―2‖. 8. Read the ―Save‖ barcode.(see the appendix—numeric barcode) 9.

  • Page 89: Check Setup

    【Start Setup】 2. Read the ―CodeID Setup‖ barcode. 3. Read the numeric barcode ―7‖, ―0‖ (see the appendix—numeric barcode) 4. Read the ―Save‖ barcode.(see the appendix—numeric barcode) 5. Read the ―Exit Setup‖ barcode. Check Setup Code 93 barcode data does not compulsively include the check digit, if check digit exists, then it is the last character. Check digit is calculated according to all the datas, for checking if the data is correct or not.

  • Page 90: Code 11

    【Start Setup】 Set the Minimum Length Limit Set the Maximum Length Limit Note：the maximum length limit of any 1D barcode must not exceed 255, if the maximum length is shorter than the minimum length, then the scanner is only able to read the barcodes with the minimum length and the the maximum length; if the maximum length equals to the minimum length, then the scanner is only able to read the barcode with such length.

  • Page 91: Check Setup

    【Start Setup】 1. Read the ―Start Setup‖ barcode. 2. Read the ―CodeID Setup‖ barcode. 3. Read the numeric barcode ―7‖, ―0‖ (see the appendix—numeric barcode) 4. Read the ―Save‖ barcode.(see the appendix—numeric barcode) 5. Read the ―Exit Setup‖ barcode. Check Setup Code 11 barcode data does not compulsively include the check digit, if check digit exists, then it is the last character.

  • Page 92: Set The Barcode Reading Length

    【Start Setup】 able to read the Code 11 with 4 characters. ) Set the Barcode Reading Length The scanner is only able to read the Code 11 with tramsmission content length falls in the limited range, the range is consisted of the maximum value and minimum value in units of character (the maximum value and minimum value also included), the Code 11 exceeds the range can not be read or transmitted.

  • Page 93: Allow To Read Plessey Or Not

    【Start Setup】 Restore the Default Setup Value of Plessey Allow to Read Plessey or not Allow to Read Plessey Prohibit Reading Plessey Note: the scanner will become unable to read Plessey by reading the setup barcode ―Prohibit Reading Plessey‖, thus, if the scanner is unable to read the Plessey, please try to read the setuo barcode ―allow to read Plessey‖.

  • Page 94: Set The Barcode Reading Length

    【Start Setup】 scanner will indicate ―barcode reading failed‖ No Check Check and Send Check digit Check but do not Send Check digit Note: by setting ―do not send the check digit‖, if the data length except for the 1 character check digit is less than the minimum barcode reading limit, the barcode reading will be failed.

  • Page 95: Msi-Plessey

    【Start Setup】 MSI-Plessey Restore the Default Value By reading the barcode, the parameter setup ofMSI-Plessey will be restored to the factory default state. Restore the Default Setup Value of MSI-Plessey Allow to Read MSI-Plessey or not Allow to Read MSI-Plessey Prohibit Reading MSI-Plessey Note: the scanner will become unable to read MSI-Plessey by reading the setup barcode ―Prohibit Reading MSI-Plessey‖, thus, if the scanner is unable to read the MSI-Plessey, please try to read the setuo barcode ―allow to read MSI-Plessey‖.

  • Page 96: Set The Barcode Reading Length

    【Start Setup】 No Check Single Check MOD10 Double Check MOD10/MOD10 Double Check MOD10/MOD11 Do not Send the Check Digit Send the Check Digit Note: by setting “do not send the check digit”, if the data length except for the 1 character check digit is less than the minimum barcode reading limit, the barcode reading will be failed.

  • Page 97: Gs1 Databar

    【Start Setup】 minimum length, then the scanner is only able to read the barcodes with the minimum length and the the maximum length; if the maximum length equals to the minimum length, then the scanner is only able to read the barcode with such length.

  • Page 98: Pdf417

    【Start Setup】 PDF417 Restore the Default Value By reading the barcode, the parameter setup of PDF417 will be restored to the factory default state. Restore the Default Setup Value of PDF417 Allow to Read PDF417 or not Allow to Read PDF417 Prohibit Reading PDF417 Note: the scanner will become unable to read PDF417 by reading the setup barcode “Prohibit Reading PDF417”, thus, if the scanner is unable to read the PDF417, please try to read the setuo barcode “allow to read PDF417”.

  • Page 99: Micropdf417

    【Start Setup】 MicroPDF417 Restore the Default Value By reading the barcode, the parameter setup of MicroPDF417 will be restored to the factory default state. Restore the Default Setup Value of MicroPDF417 Allow to Read MicroPDF417 or not Allow to Read MicroPDF417 Prohibit Reading MicroPDF417 Note: the scanner will become unable to read MicroPDF417 by reading the setup barcode “Prohibit Reading MicroPDF417”, thus, if the scanner is unable to read the MicroPDF417, please try to read the setuo barcode...

  • Page 100: Chapter 7 Appendix

    【Start Setup】 Chapter 7 Appendix Default Setup Table Parameters Default Setup Remark General Setup Setup Barcode Function Send Setup Barcode Working Mode Manual Reading Wireless Comminication Mode Asynchronized Mode Set the Barcode Reading Tiem 15 Seconds Range: 0-15sec, 0 means non-stop Set the Time Interval between Scanning 1 second Range: 0-7.5sec...
  • Page 101 【Start Setup】 Parameters Default Setup Remark Data Bits 8 bits USB Virtual Keyboard Virtual Keyboard Layout The First, American English keyboard Delay between Characters 0~75ms Character Conversion No conversion Number Lockup Data Format Setup CodeID+Prefix+(AIMID+Data) Setup of the Prefix sequence CodeID+Custom+AIMID +Suffix+Terminal Add AIMID Prefix...
  • Page 102 【Start Setup】 Parameters Default Setup Remark Enable Minmum Length EAN-8 Enable Send the Check Character Read 2-Digits Extracode Read 5-Digits Extracode Extracode is Required, 2-digits Extracode is Required, 5-digits Extend to EAN-13 Type is EAN-13 when Extend EAN-13 Enable Send the Check Character Read 2-Digits Extracode Read 5-Digits Extracode Extracode is Required, 2-digits...
  • Page 103 【Start Setup】 Parameters Default Setup Remark Use 10 digits ISBN UPC-E Enable Send the Check Character Read 2-Digits Extracode Read 5-Digits Extracode Extracode is Required, 2-digits Extracode is Required, 5-digits Extend to UPC-A Type is UPC-A when Extend Send the System Digit ―0‖ UPC-A Enable Send the Check Character...
  • Page 104 【Start Setup】 Parameters Default Setup Remark Maximum Length Minmum Length ITF-6 Enable Send Check Character ITF-14 Enable Send Check Character Deutshe 14 Enable Send Check Character Deutshe 12 Enable Send Check Character COOP25 (JapaneseMatrix 2 of 5) Enable Check Send Check Character Maximum Length Minmum Length Matrix 2 of 5(European Matrix 2 of 5)
  • Page 105 【Start Setup】 Parameters Default Setup Remark Check Send Check Character Maximum Length Minmum Length At less 3 Industrial 25 Enable Check Send Check Character Maximum Length Minmum Length Standard 25 Enable Check Send Check Character Maximum Length Minmum Length At less 4 Code 39 Enable Check...
  • Page 106 【Start Setup】 Parameters Default Setup Remark Minmum Length Codabar Enable Check Send Check Character Do not Send Start and Stop Character ABCD/ABCD as the Start and Stop Character Select one ABCD/TN*E as the Start and Stop Character abcd/abcd as the Start and Stop Character abcd/tn*e as the Start and Stop Character Maximum Length Minmum Length...
  • Page 107 【Start Setup】 Parameters Default Setup Remark Send Check Character 1 Digit MOD10 Check 2 Digits MOD10/MOD10 Check 2 Digits MOD10/MOD11 Check Auto 2 Digits MOD11/MOD11 Auto 2 Digits MOD11/MOD9 Maximum Length Minmum Length At less 3 Plessey Enable Check Send Check Character Maximum Length At less 4 Minmum Length...
  • Page 108 【Start Setup】 Parameters Default Setup Remark GS1 Databar Enable PDF417 Enable MicroPDF417 Enable 【Exit Setup】...

  • Page 109: Aim Id Table

    【Start Setup】 AIM ID Table Barcode AIM ID Possible AIM ID Parameters Code 128 UCC/EAN-128 AIM 128 ISBT 128 EAN-8 EAN-13 EAN-13 with Addon ISSN ISBN UPC-E UPC-E with Addon UPC-A UPC-A with Addon Interleaved 2 of 5 0,1,3 ITF-6 ITF-14 Deutsche 14 Deutsche 12...
  • Page 110 【Start Setup】 Standard 25 Code 39 0,1,3,4,5,7 Codabar 0,2,4 Code 93 Code 11 0,1,3 Plessey MSI-Plessey GS1 Databar PDF417 0,1,2 MicroPDF417 3,4,5 Reference: 1. ISO/IEC 15424:2008 2. Information Technology - Auto-Identification and Data Cellection Technology – Data Carrier Identifiers (including the symbol identifiers) 【Exit Setup】...

  • Page 111: Codeid Table

    【Start Setup】 CodeID Table 条码类型 Barcode Code ID Code 128 UCC/EAN-128 AIM 128 ISBT 128 EAN-8 EAN-13 ISSN ISBN UPC-E UPC-A Interleaved 2 of 5 ITF-6 ITF-14 Deutsche 14 Deutsche 12 COOP 25（Japanese Matrix 2 of 5） Matrix 2 of 5(European Matrix 2 of 5) Industrial 25 Standard 25 Code 39...

  • Page 112: Data Barcode

    【Start Setup】 Code 11 Plessey MSI-Plessey GS1 Databar PDF417 MicroPDF417 Data Barcode After reading the data barcode, please read ―save‖ in the next page to svae the data barcode setup. 【Exit Setup】...

  • Page 113: Save And Abort The Setup

    【Start Setup】 Save and Abort the Setup After reading the data barcode, please read ―save‖ to save the data. If reading error occurs, except for re-configuration, the costomer can also abort the error data. If the scanner has read a centain setup barcode, and read numeric data ―1‖，―2‖，―3‖according to priority, after that, If the scanner read ―Abort the Last Data‖, then the last digit ―3‖...
  • Page 114 【Start Setup】 Abort one of the Presnet Setup of the Data Parameter Abort one of the Presnet Setup of the Data Parameter 【Exit Setup】...
