3.2. Switcher Rear Panel

3
AUDIO IN
L R
Phantom 48V)
ON
LINE MIC
1. HDMI 2. HDMI

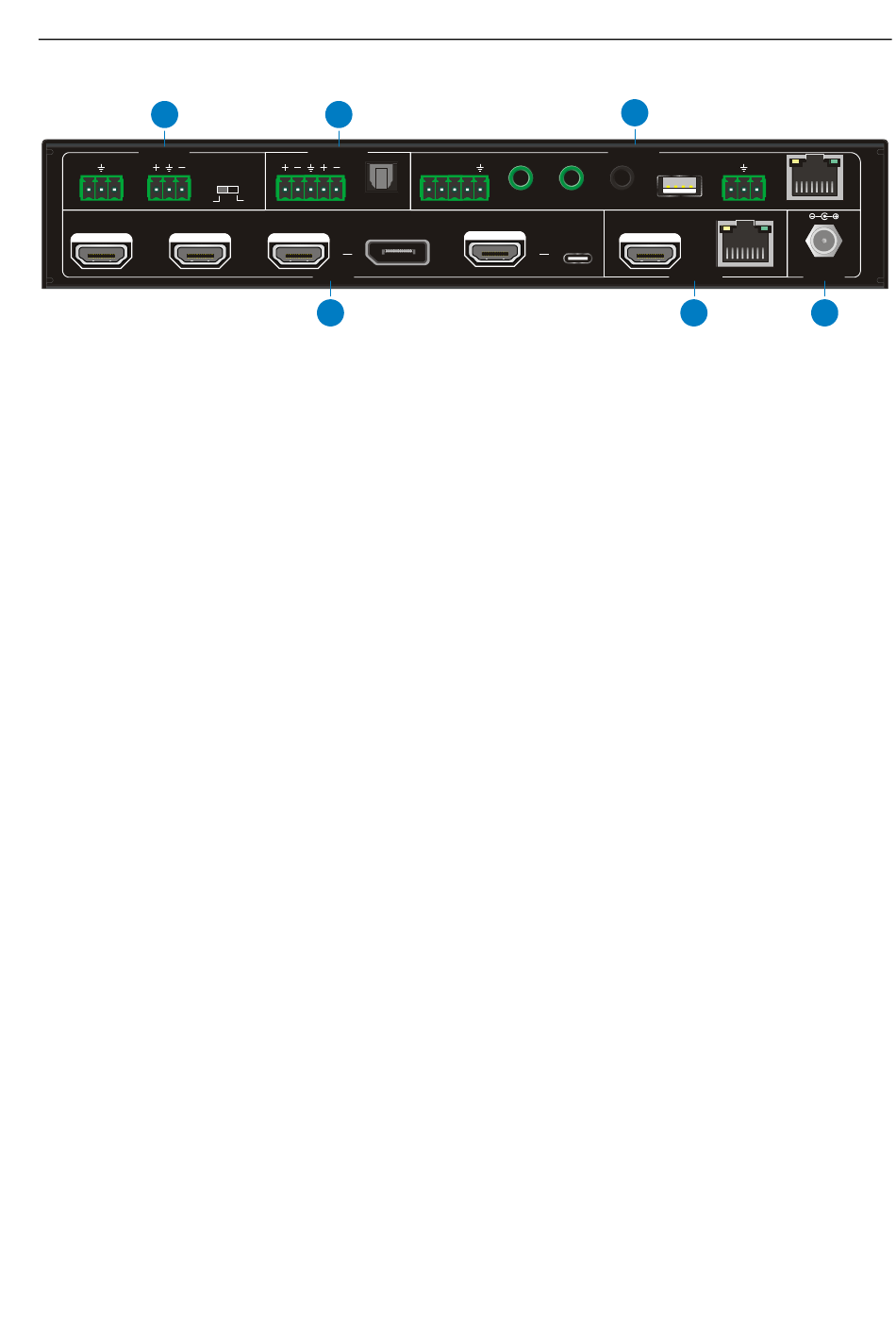

① INPUTS: Four HDMI inputs, one DisplayPort and one USB-C input.
② OUTPUTS: One HDMI and one HDBaseT output. The HDBaseT output supports
48V PoC.
③ AUDIO IN:
LINE: Line audio input which can be embedded in any HDMI input.
⚫
MIC: Microphone input for audio mixing. Set 48V phantom power mode switch
⚫
as needed: ON for Condenser microphone; OFF for Dynamic microphone.
④ AUDIO OUT:
L+R: Balanced analog audio ouput for audio de-embedding.
⚫
SPDIF: Digital SPDIF audio output for audio de-embedding.
⚫
⑤ CONTROL:
CONTACT IN: Contact external sensors, buttons and other devices for input
⚫
source selection.
IR IN: Connects to IR receiver for IR pass-through.
⚫
IR OUT: Connects to IR emitter for IR pass-through.
⚫
IR EYE: Connects to IR receiver for local switcher control.
⚫
FIRMWARE: Type-A USB for firmware upgrade.
⚫
RS232: 3-pin terminal block for RS232 control.
⚫
TCP/IP: RJ45 port to control the switcher via GUI.
⚫
⑥ DC 24V: DC connector for power adapter connection.
