4. Front Panel Control

4.1. Multi-view Mode Selection

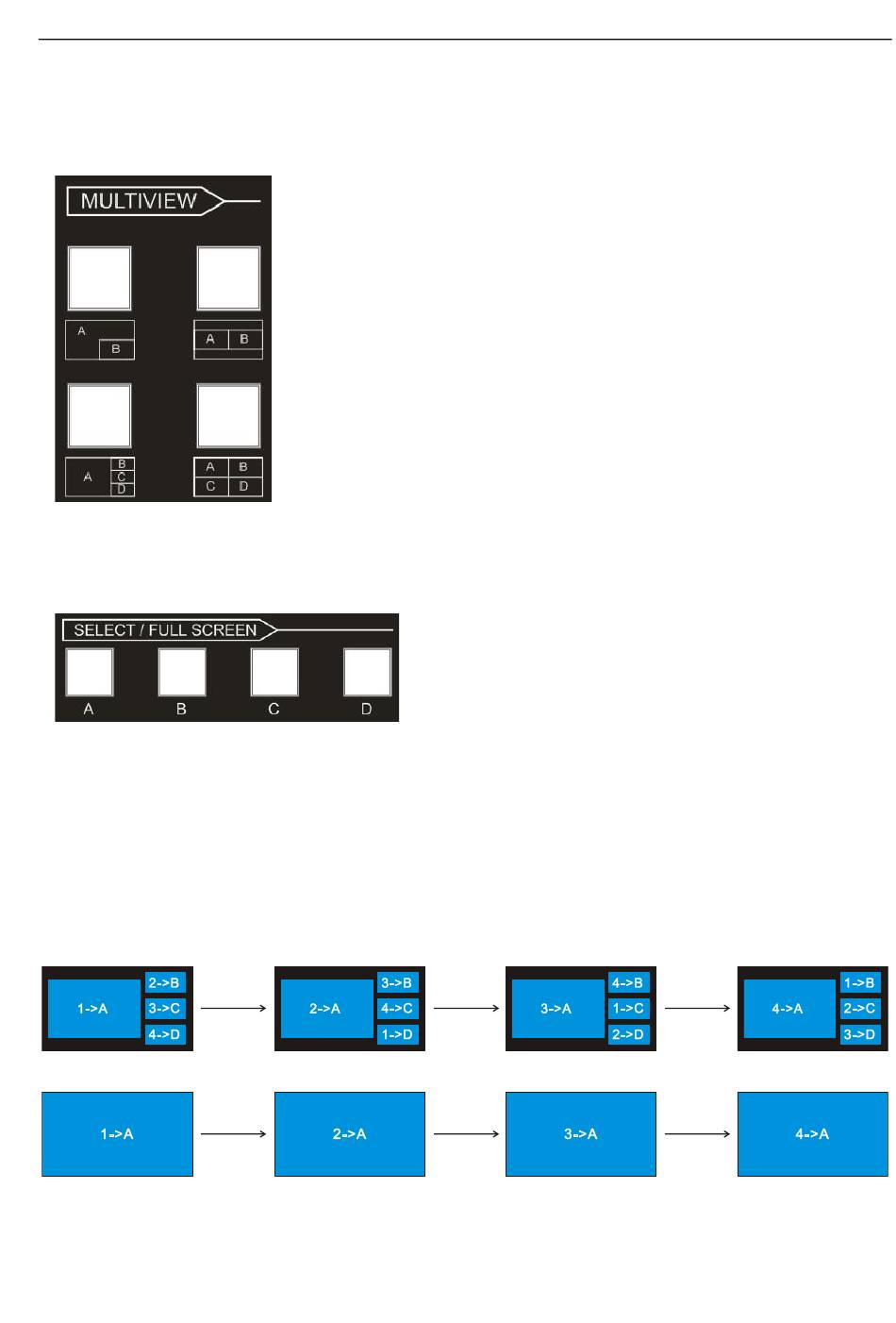

There are four multi-view modes can be selected by front panel buttons.

4.2. Full Screen Setting

4.3. Swap Window Setting

Press SWAP button to cycle swap the video source of window display in anticlockwise,
the SWAP LED lights once when press its button once.
Example: In Multi-view Mode
SWAP
Example: In Full Screen Mode
6x1 4K Presentation Switcher with HDBaseT
The factory default multi-view mode is quartered window
mode, and there is a one-one correspondence between
the four input sources and the four output windows: input
1 -> window A, input 2 -> window B, input 3 -> window C,
input 4-> window D. The button LEDs (A~D) illuminate
blue.
When switching to two-window (A&B) mode, the
corresponding mode LED will illuminate blue, and the
window A and B LEDs illuminate blue. The factory default
correspondence between the two input sources and the
two output windows is: input 1 -> window A, input 2 ->
window B.
SWAP
Press Windows A~D button to select the
corresponding window to display in full-screen.
Meanwhile, the corresponding input source
button LED and window button A LED
illuminate blue, other window buttons and
previous multi-view mode button LED goes out.
SWAP
SWAP
8
SWAP
SWAP
