5. IR Remote Control

The switch provides IR EYE port for IR receiver connection, and then it can be control
by the below IR remote.
Note: There is no long pressing function on this IR remote, and its button functions are
the same as the front panel buttons.
INPUTS
1 2 3
3. H 3. DP 4. H
CONFIG
A / M
SELECT / FULL SCREEN
A B C
MULTIVIEW
B
A
A B A C
B
D
User 1 User 2 User3
AUDIO SOURCE
1 2 3
VOLUME
MIC Mute
Source Mute
6x1 4K Presentation Switcher with HDBaseT

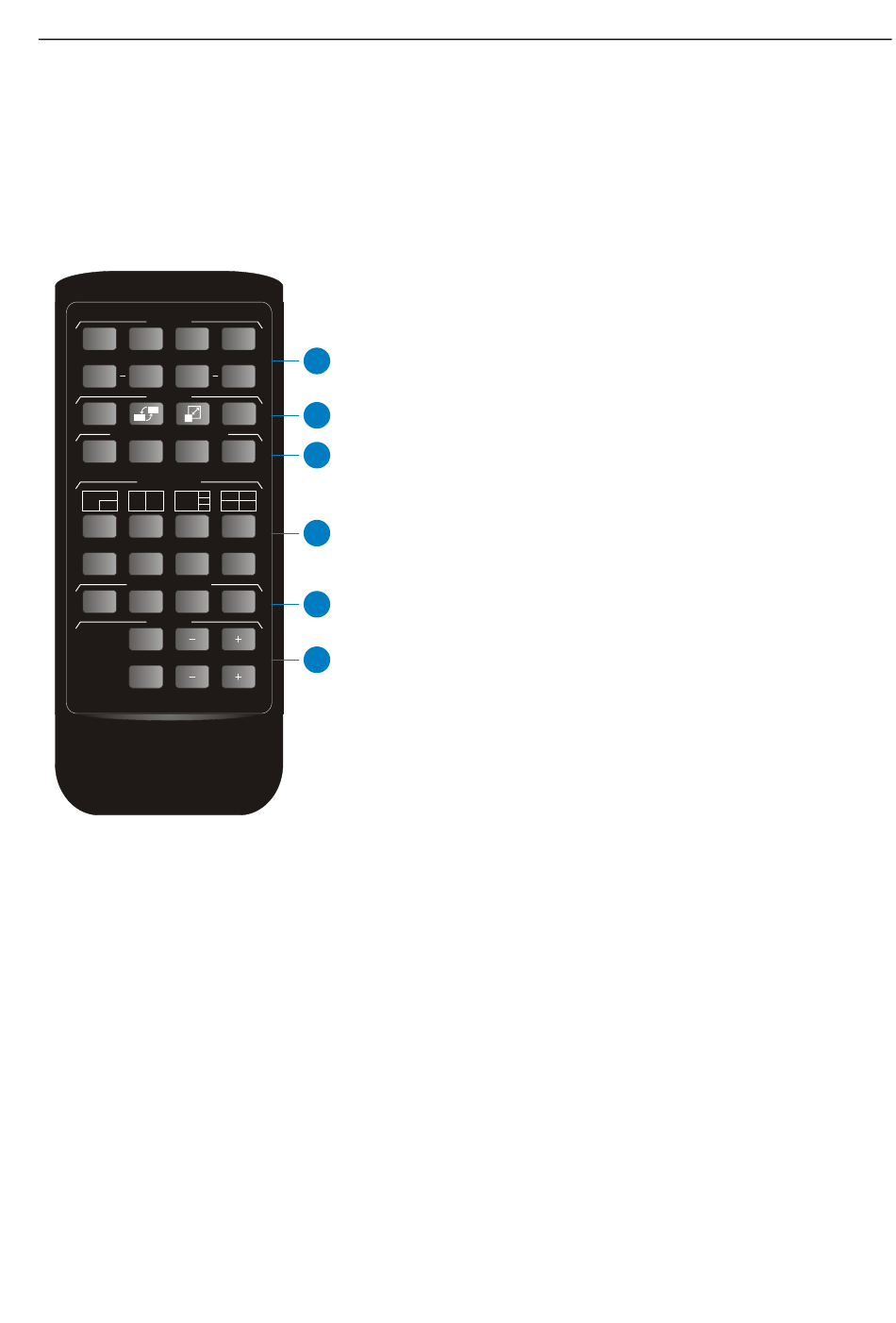

① INPUTS: Six buttons for input source selection.
② CONFIG:
4
⚫
1
4. UC
⚫
2
MUTE RES
⚫
3
D
⚫
A B
C D
③ SELECT/FULL SCREEN: A~D buttons for output
4
window selection and full screen setting.
User 4
④ MULTIVIEW: Four buttons for built-in multiview
5
4
mode selection and four buttons for user-defined
mode selection. The user-defined multiview
6
modes can be set via GUI.
⑤ AUDIO SOURCE: Four buttons for audio source
selection.
⑥ VOLUME:
⚫
⚫
A/M button for auto-switching mode setting.
SWAP button for cycle swap the video source
of window display.
RESIZE button for window size adjustion.
RES button for output resolution selection.
Microphone audio: Mute, volume up and
volume down.
Source audio: Mute, volume up and volume
down.
