3. Panel Description

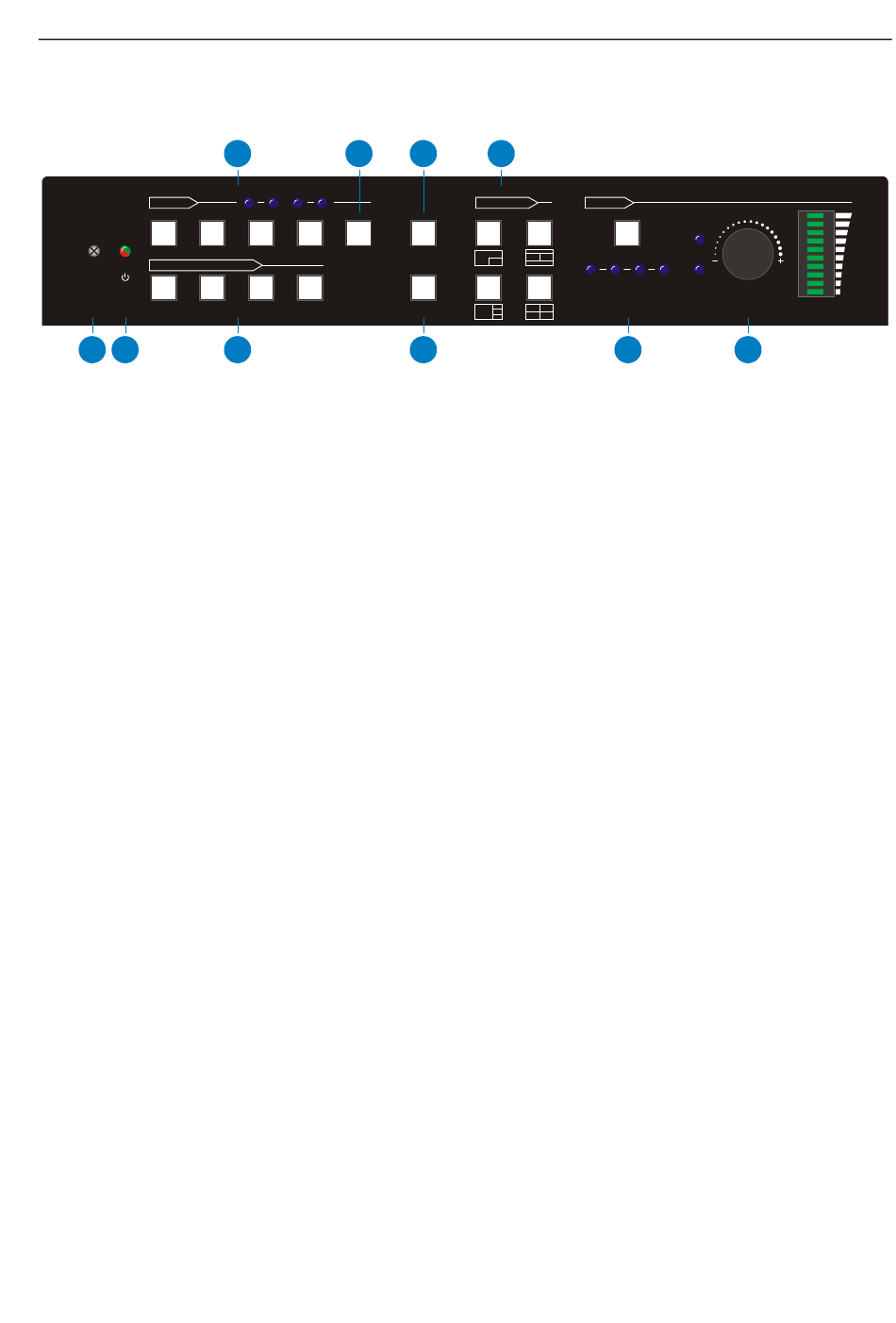

3.1. Switcher Front Panel

INPUTS
1 2
SELECT / FULL SCREEN
IR
A B
1 2
① IR LED: Built-in IR sensor, receives IR signal sent from IR remote.
② POWER LED: Illuminates red when switcher is in standby mode or illuminates
green when device is powered on.
③ INPUT BUTTONS (1~4): Input source selectors.
HDMI/DP LED: Indicates HDMI or DP source for the third input channel.
⚫
HDMI/USB-C LED: Indicates HDMI or USB-C source for the fourth input
⚫
channel.
④ AUTO BUTTON: Auto switching mode selector.
⑤ SWAP: Cycle swap the video source of window display in anticlockwise.
⑥ MULTIVIEW: Total four buttons for choosing Multi-view mode.
⑦ SELECT/FULL SCREENS (A~B): Four buttons for window selection and full
screen setting.
⑧ RESIZE: Adjust the windows size.
⑨ AUDIO SOURCE: Select the audio source, and the correspond LED (1~4) will
illuminate blue. When select the LINE audio, the button illuminates blue.
⑩ VOLUME: Variable audio control
Press the volume knob to select microphone or source audio control.
⚫
Rotate the knob to increase or decrease the volume of the selected audio.
⚫
Press and hold the knob at least 3 seconds to mute the selected audio, rotate
⚫
the knob to unmute.
