- Page 1 AUDIO VIDEO SWITCHER’S MANUAL Phone: 91-79-55310266 / 55124898 (M) 0-98253-50221 www.interfaceproducts.info...

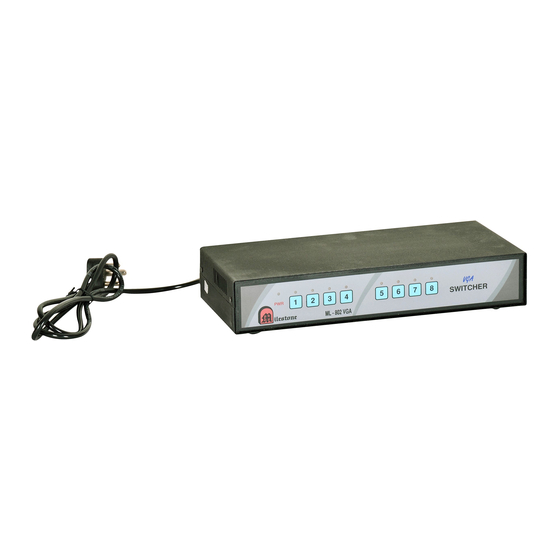

- Page 2 Milestone’s “AUDIO VIDEO” Switcher is a device that helps person/s to share multiple Audio and Video source with single / multiple projector. Models Available : ML 401 AUDIO VIDEO 4 VIDEO + Audio input > 1 VIDEO + 1 Audio out ML 402 AUDIO VIDEO 4 VIDEO + Audio input >...
- Page 3 Technical Specifications ML401 AV ML402 AV ML802 AV ML1602 AV Models VIDEO I/P (RCA) VIDEO O/P (RCA) Audio I/P (RCA) Audio O/P (Captive screw) Audio O/P (3.5mm Stereo) Selected input indication Power indication 1 to 4 1 to 4 1 to 8 1 to 16 Key Pad Selection D9M x 1...
- Page 4 The connecter diagram for D9 male connector is as follows: D-9 Male Channels Note : to select channel 1, short 1 and 9 through contact switch or use Milestone’s remote keypad / RF remote controller / IR remote controller. Phone: 91-79-55310266 / 55124898 (M) 0-98253-50221...
- Page 5 Remote RS232 Interface D9 female connector from rear panel is used for selecting the switcher through RS232 interface. The pin configurations are: D-9 Male Channels The simple command used for selecting the channels is Input Channel Decimal ASCII Channel 1 31, 21 Channel 2 32, 21...
