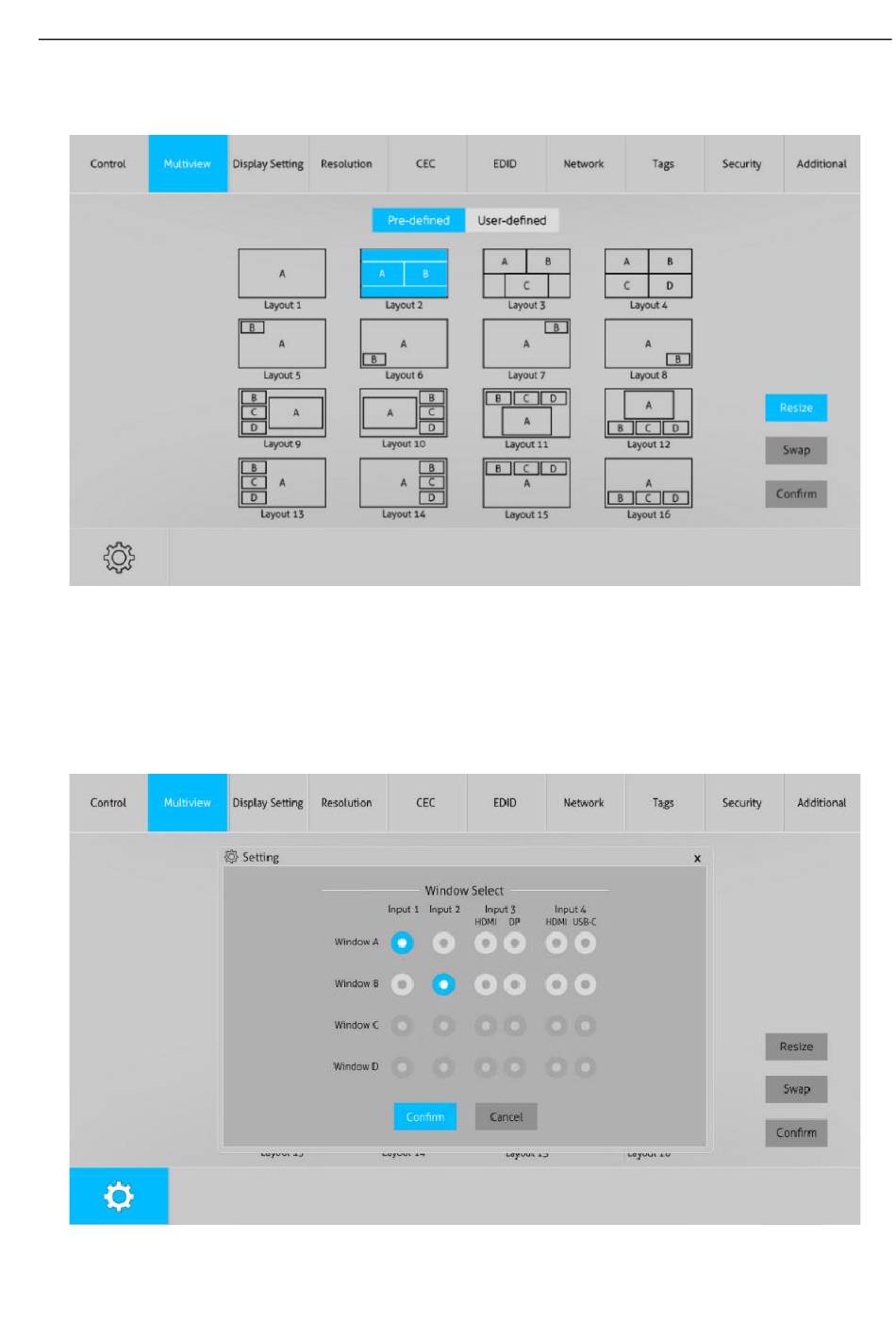

6.2. Multiview Tab
1) Pre-defined
Up to 16 multi-view modes can be selected.
⚫
RESIZE: Click the button to adjust the window size. Note that only Layout 2,
⚫
Layout 5~Layout 8, Layout 9~Layout 12 can be adjusted window size.
SWAP: Click the button to cycle swap the video source of window display in
⚫
anticlockwise.
Click gear icon to enter the below interface to select input souce for each window.
⚫
6x1 4K Presentation Switcher with HDBaseT
15
