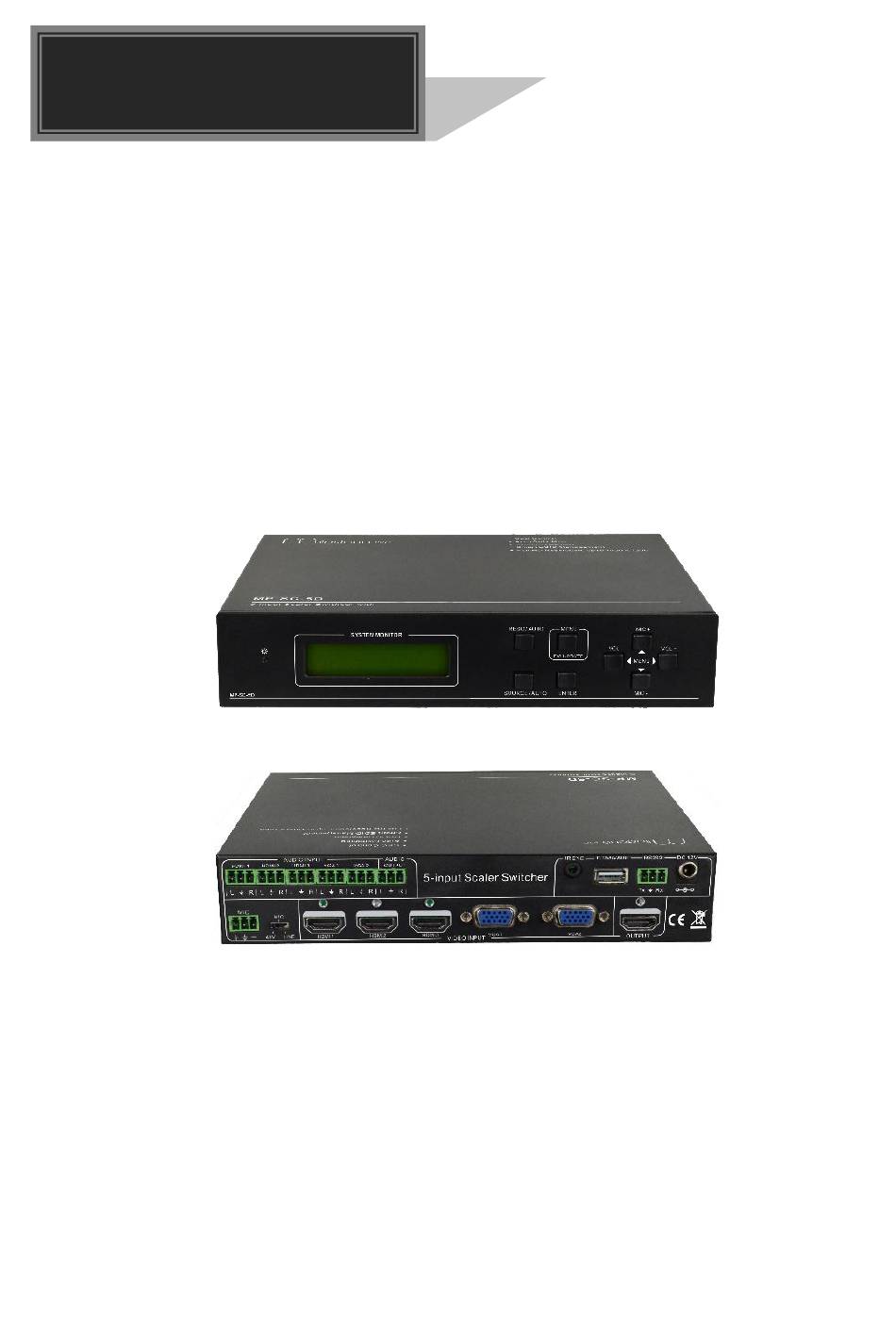

User Manual
MP-SC-5D
Compact Scaler Switcher
All Rights Reserved
Version: MP-SC-5D_2016V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP-SC-5D and is the answer not in the manual?

Questions and answers

Related Manuals for Milestone MP-SC-5D

Summary of Contents for Milestone MP-SC-5D

  • Page 1 User Manual MP-SC-5D Compact Scaler Switcher All Rights Reserved Version: MP-SC-5D_2016V1.0...
  • Page 2 Compact Scaler Switcher Safety Operation Guide In order to guarantee the reliable operation of the equipment and safety of the staff, please abide by the following proceeding in installation, using and maintenance: 1) The system must be earthed properly. Please do not use two blades plugs and ensure the alternating power supply ranged from 100v to 240v and from 50Hz to 60Hz.

  • Page 3: Table Of Contents

    1. Introduction ......................... 1 1.1 Introduction to MP-SC-5D.................. 1 1.2 Features ......................1 1.3 Package Contents ..................... 1 2. Product Appearance of MP-SC-5D ................2 2.1 Front Panel ......................2 2.2 Rear Panel ......................3 3. System Connection ..................... 4 3.1 Usage Precautions ....................
  • Page 4 Compact Scaler Switcher 4.5.4 Setup ..................... 23 4.6 Instructions of VGA Converting Cable ............. 24 5. Specification ......................26 6. Panel Drawing ......................27 7. Troubleshooting & Maintenance ................28 8. After-sales Service ....................30...

  • Page 5: Introduction

    1. Introduction 1.1 Introduction to MP-SC-5D MP-SC-5D is a compact mini scaler switcher with 5 video inputs (3 HDMI, 2 VGA) and 6 audio inputs (3 HDMI audio & 2 VGA audio: switched following the video; 1 MIC audio input). As the VGA input supports VGA, YPbPr and C-video, so the scaler switcher is compliant with multiple video signals.

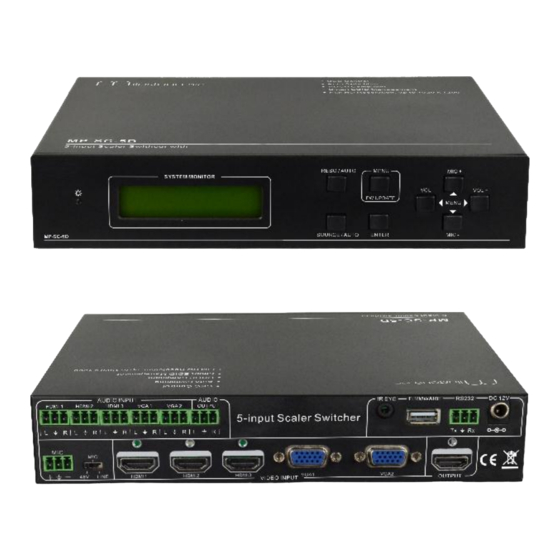

  • Page 6: Product Appearance Of Mp-Sc-5D

     1 x Conformity Certificate  1 x User Manual Notes： Please confirm if the product and the accessories are all included, if not, please contact with the dealers. 2. Product Appearance of MP-SC-5D 2.1 Front Panel ⑤ ⑥ ⑦ ⑨ ⑧...

  • Page 7: Rear Panel

    Compact Scaler Switcher  Manual-switching mode: Press this button to select the resolution of HDMI output manually. The resolution can be selected among 1360x768, 1280x800, 1280x720, 1024x768, 1920x1200, 1920x1080 and 1600x1200.  Auto-switching mode: Press and hold this button for 7 seconds or more to enter this mode.

  • Page 8: System Connection

    USB port, connect with USB flash disk or other storage with update file to update the system firmware. ⑤ RS232 Serial control port, 3p captive screw connector, connect with a control device (such as a computer) to control MP-SC-5D. ⑥ 12V DC Power port, connect with the 12V DC power adapter. ⑦ MIC...

  • Page 9: System Diagram

    MP-SC-5D with VGA cable. Step2. Connect the corresponding audio source to the corresponding AUDIO INPUT port of MP-SC-5D with audio cable accordingly. The audio of HDMI can be set as embedded or external by sending right commands.
  • Page 10 Compact Scaler Switcher “ ” to ground.  MIC input When switch to “MIC” (It has a low frequency characteristics, and wide frequency response in this mode), the microphone input is used for connecting with dynamic microphone. There are two different connections: 1) Unbalanced connection: “+”...

  • Page 11: Application

    “+” connects to positive, “-” connects to negative and “ ” connects to ground. 3.5 Application MP-SC-5D has a good application in various occasions, such as computer realm, monitoring, conference room, big screen displaying, television education, command & control center and smart house etc.

  • Page 12: Switching Operations

    And if the signal last displayed is still available, then MP-SC-5D will output the signal. If not, there will be no signal on outputs.  Signal removing principle Once removing the current display signal, MP-SC-5D will detect all input signals with priority (from INPUT 1 to INPUT 5).

  • Page 13: Software Updating

     Connect INPUT 3 with a source device, and then it will choose INPUT 3 to output.  Remove the signal of INPUT 3, MP-SC-5D will detect from INPUT 1 to INPUT 5. And when it detects that input 2 is available, it will choose INPUT 2 to output.

  • Page 14: Operations Of Ir

    Compact Scaler Switcher 4.2 Operations of IR 4.2.1 IR Remote With its CEC function, users are able to control the MP-SC-5D and source devices synchronously via one IR remote. ① Standby button To enter in/ exit standby mode. ② Input channel selection buttons INPUT 1 is for HDMI1, INPUT 2 for HDMI2…INPUT 5 for VGA2.

  • Page 15: Operations Of Cec Function

    And due to CEC function, user can control HDMI source device with basic operations (play, pause, fast forward, fast reverse, menu etc.). So user is able to control MP-SC-5D and HDMI source device via the IR remote of MP-SC-5D.

  • Page 16: Installation/ Uninstallation Of Rs232 Control Software

    Compact Scaler Switcher MP-SC-5D and the RS232 port of control device (e.g. a PC). Install the RS232 control software to the control device, then users are able to control the MP-SC-5D by sending RS232 commands. Here is an operation guidance for RS232 control.

  • Page 17: Rs232 Communication Commands

    Compact Scaler Switcher Parameter Configuration area Monitoring area, indicates whether the command sent works. Command Sending area Please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly, and then you are able to send commands in Command Sending Area. 4.4.3 RS232 Communication Commands Communication protocol: RS232 Communication Protocol.
  • Page 18 Compact Scaler Switcher Command Function Feedback Example 50682% Select AV 1 for INPUT 4 Input 4 Set & Switch to AV 1 50683% Select VGA 2 for INPUT 5 Input 5 Set & Switch to VGA 2 50684% Select YPbPr 2 for INPUT 5 Input 5 Set &...
  • Page 19 Compact Scaler Switcher Command Function Feedback Example audio input Choose embedded audio as HDMI 3 50710% HDMI 3 Audio from Embedded audio input Choose external audio as HDMI 3 50711% HDMI 3 Audio from LINE audio input Resolution Commands Change the resolution to 1360X768 50619% Resolution: 1360x768 Change the resolution to 1024X768...
  • Page 20 Compact Scaler Switcher Command Function Feedback Example Set the saturation to xx. XX ranges Saturation: xx 504xx% from 0 to 99 Set the sharpness to xx. XX ranges 505xx% Sharpness: xx from 0 to 99 50607% Adjust the color temperature Color Temperature: xx Set the aspect ratio Aspect Ratio: xx...
  • Page 21 Compact Scaler Switcher Command Function Feedback Example 50791% HDCP Active HDCP Active 50792% HDCP Manual HDCP Manual 50793% Enable HDCP output HDCP ON 50794% Disable HDCP output HDCP OFF Inquire HDCP/ Active HDCP HDCP Active HDCP Manual 50795% Inquire HDCP/ Manual HDCP HDCP OFF/ON Manage HDMI input with EDID management, copy the best...
  • Page 22 Compact Scaler Switcher Command Function Feedback Example 50635% Check the image aspect ratio Aspect Ratio: xx 50636% Check the brightness Brightness: xx 50637% Check the contrast Contrast: xx 50638% Check the saturation Saturation: xx 50639% Check sharpness Sharpness: xx Check the color temperature Color Temperature: xx 50640% 50651%...
  • Page 23 Compact Scaler Switcher Command Function Feedback Example 50673% Move the image down Output Position Adjust Y xx Stretch left from left side (increase 50674% Output Width Adjust xx image width) Pull right from left side (decrease Output Width Adjust xx 50675% image width) Stretch upwards from top side...

  • Page 24: Operations In Osd Menu

    4.5 Operations in OSD Menu MP-SC-5D provides a powerful OSD operation menu, contains 4 parts: optional settings, image settings, audio settings and system setting etc. Press MENU button on front panel (or MENU button on IR remote/send command 50616%) to enter in OSD menu, so it is able to do some settings through the OSD menu.
  • Page 25 Compact Scaler Switcher Output Adjust: Adjust output image position (X: horizontal direction and Y: vertical direction) and ratio aspect (width and height). Input4 Select: Select video source format for VGA input, includes AV 1 (C-video signal), VGA 1 (VGA signal) and YPbPr 1 (Component video signal). Use ENTER button to select the desired source format.

  • Page 26: Picture

    HDMI3. Software Update (USB): Insert the USB flash disk with updating file to USB port of MP-SC-5D, to update the software through this menu. 4.5.2 Picture Including Picture Mode, Color Temperature, Aspect Ratio, Noise Reduction, Screen and Color Range.

  • Page 27: Sound

    Compact Scaler Switcher Color Range (not for VGA format): Includes 0~255 and 16~235, use ENTER button to select the color range. 4.5.3 Sound Including Sound Mode, Surround Sound and EQ Please check the picture below: Sound mode: Includes Standard, Music, Movie, Sports and User. Only User mode supports to set treble and bass.

  • Page 28: Instructions Of Vga Converting Cable

    VERSION: Displays software version. 4.6 Instructions of VGA Converting Cable As VGA source supports YPbPr and C-video source, MP-SC-5D provides with 2 VGA converting cables to compliant with these signals. When need to select these signals as input source, please switch to channel INPUT 4 (or INPUT 5), and then set the signal type in OSD.
  • Page 29 Compact Scaler Switcher 2. Via RS232 commands Send command 50681% (or 50684%) to switch to YPbPr1 (or YPbPr2) source. 3. Via IR remote & OSD Press MENU button on IR remote to enter in OSD, and then enter in OPTION setting menu: set “INPUT 4 Select”...

  • Page 30: Specification

    Compact Scaler Switcher 5. Specification Video Input Video Output 3 HDMI 1 HDMI Input Output 2 VGA 1 HDBaseT Input 3 female HDMI Output 1 female HDMI Connector 2 female VGA (15 pin) Connector 1 RJ45 HDMI, YPbPr, C-video, 1 HDMI Video Signal Video Signal 1 HDBaseT...

  • Page 31: Panel Drawing

    2 = TX, 3 = RX, 5 = Remote RS232 Configuration General Temperature -10 ~ +40℃ Humidity 10% ~ 90% 8W, supply power to MP-SC-5D and TPHD402PR separately Power Power DC12V ± 0.5V Supply Consumption 16W, MP-SC-5D supplies power to MPTP-T70R.

  • Page 32: Troubleshooting & Maintenance

    Compact Scaler Switcher 7. Troubleshooting & Maintenance Problems Causes Solutions quality Try another high quality connecting cable cable. Output image with snowflake Make sure the connection Fail or loose connection is good. Check with oscilloscope or No signal at the input / multimeter if there is any output end signal at the input/ output...
  • Page 33 Compact Scaler Switcher Send authorized Broken RS232 port dealer for checking. Cannot control the device Send command 50605% to by front panel buttons while The front panel buttons are unlock front panel control through locked buttons. RS232 port Cannot control the device The device has already Send authorized...

  • Page 34: After-Sales Service

    Compact Scaler Switcher 8. After-sales Service 1) If there appear some problems when running MP-SC-5D, please check and deal with the problems reference to this user manual. Any transport costs are borne by the users during the warranty. 2) You can email to our after-sales department or make a call, please tell us the following information about your cases.
