User Manual
MP-3113-BI
HDMI 2.0 Bi-directional Switcher
All Rights Reserved
Version: MP-3113-BI_2017V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP-3113-BI and is the answer not in the manual?

Questions and answers

Summary of Contents for Milestone MP-3113-BI

  • Page 1 User Manual MP-3113-BI HDMI 2.0 Bi-directional Switcher All Rights Reserved Version: MP-3113-BI_2017V1.0...

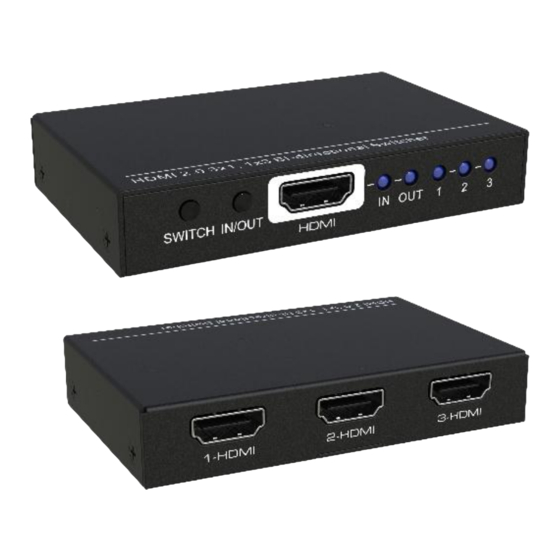

  • Page 2  Refer all servicing to qualified service personnel. After-sales Service We provide limited warranty for the product within three years. Introduction The MP-3113-BI is an ultra-thin bidirectional 3x1/1x3 HDMI2.0 switcher with 4 HDMI ports. The switcher supports HDMI resolutions up to 4K@60Hz 4:4:4.
  • Page 3  Supports bi-directional switching.  Supports HDR.  Supports Hot-Plug detection.  No need of external power supply.  Supports smart EDID management. Package Contents  1 x MP-3113-BI  1 x Velcro Tape  1 x User Manual Panel Description SWITCH IN/OUT...
  • Page 4 HDMI 2.0 Bi-directional Switcher Connection Diagram Blu-Ray HDTV HDMI IN: HDMI OUT: 1-HDMI 2-HDMI 3-HDMI 1-HDMI 2-HDMI 3-HDMI Blu-Ray Laptop Game Console Projector HDTV WhiteBoard Specifications Input & Output (4) HDMI Connector (1) 19-pin type-A female HDMI General Resolution Up to 4Kx2K@60Hz 4:4:4 HDMI Standard HDMI2.0 HDCP Compliance...
