2.4.3.2 Temperature Transmitter Wiring

a. Cable connection to the temperature transmitter is made via the terminal
block (4) accessed by removing the terminal housing lid (2) (Figure 17) .
b. Ensure that the outer diameter of the selected cable is matched to an
EExe M20 cable gland (5). Unscrew the cable gland (5) and slide the cable
through the cable gland (5) and into the terminal housing (1) through the
cable entry (3).
Michell Instruments
HAZARDOUS AREA INFORMATION
The temperature transmitter is certified intrinsically safe for
Before using the temperature transmitter in any hazardous
environment, ensure that personnel are completely familiar
with the above standards relating to the certification of this
instrument and also with the intrinsically safe apparatus
information in EN60079-14:1997 or equivalent codes of
practice in the country of installation.
If the temperature transmitter is not ordered together with the
analyzer, it is the user's responsibility to make sure that the
temperature transmitter is compatible with the I.S. barrier in
Refer to ATEX/UKCA/QPS/IECEx certificates for the dew-point
and temperature transmitters' connection cable requirements
which stipulate maximum permissible mutual capacitance and
inductance to resistance ratio.
2
1


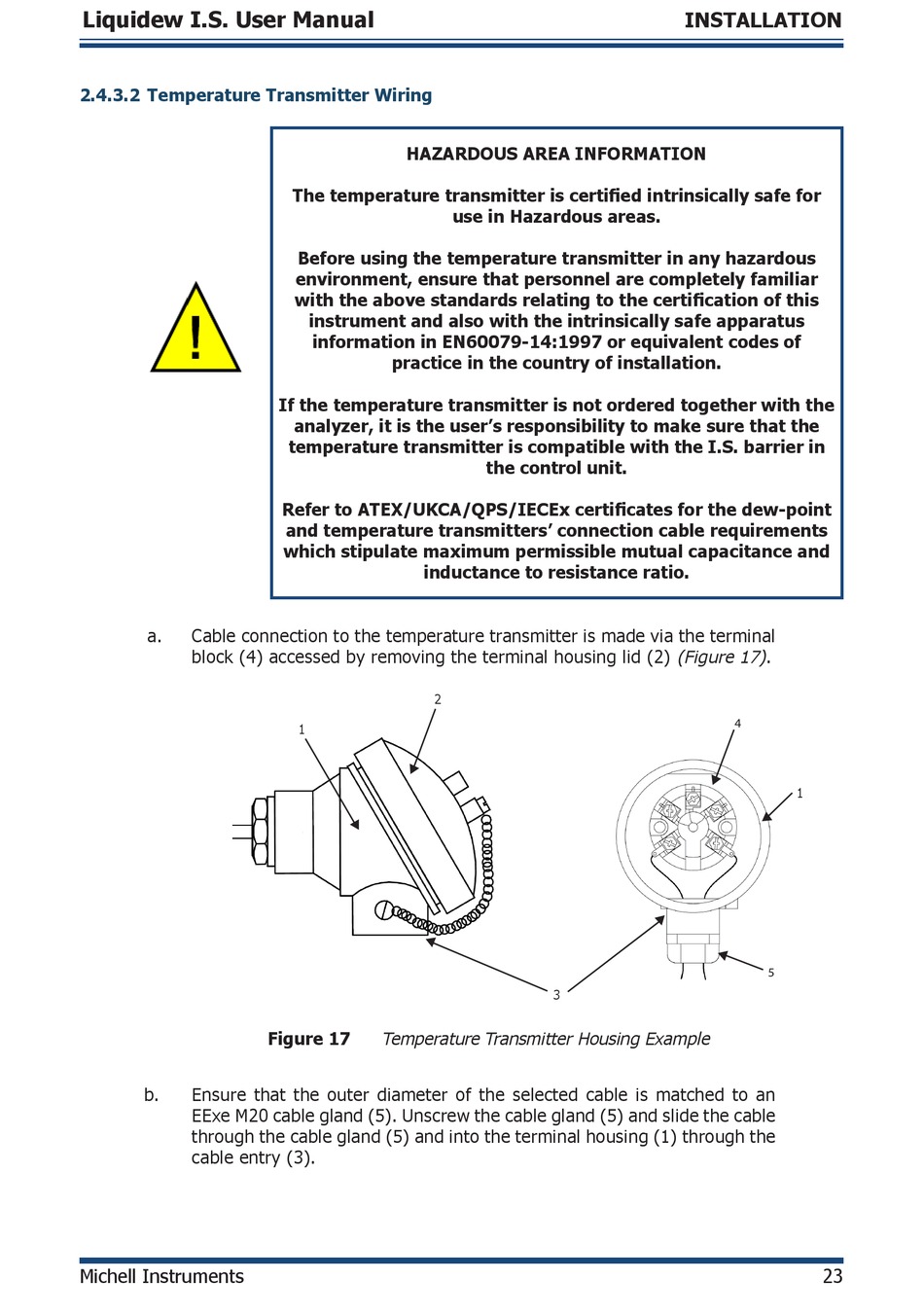

Figure 17 Temperature Transmitter Housing Example
use in Hazardous areas.
the control unit.
