INSTALLATION
Figure 5 illustrates the general method for fitting a rack mount instrument into a
standard 19" rack. To fit the unit proceed as follows:
a. Remove all terminal blocks for the electrical connections.
b. If necessary, remove any covers from the rack cabinet to gain access to
the rear and side.
c. Connect up the sensor input, analog and alarm output terminal blocks
to the internal rack wiring, ensuring that there is sufficient free cable to
permit withdrawal of the instrument from the rack.
d. Slide the instrument into the rack and support its weight while the four
fixing screws are inserted.
e. Ensure that the front panel of the instrument is flush and square with the
front of the rack and tighten the fixing screws.
f. Insert the terminal blocks into their respective sockets on the rear of the
instrument.
g. Connect the power supply cable and switch the
h. Re-fit any covers to the rack as necessary.
NOTE: Allow a minimum clearance depth of 100 mm (4") behind the instrument
housing for cables and vents.
8

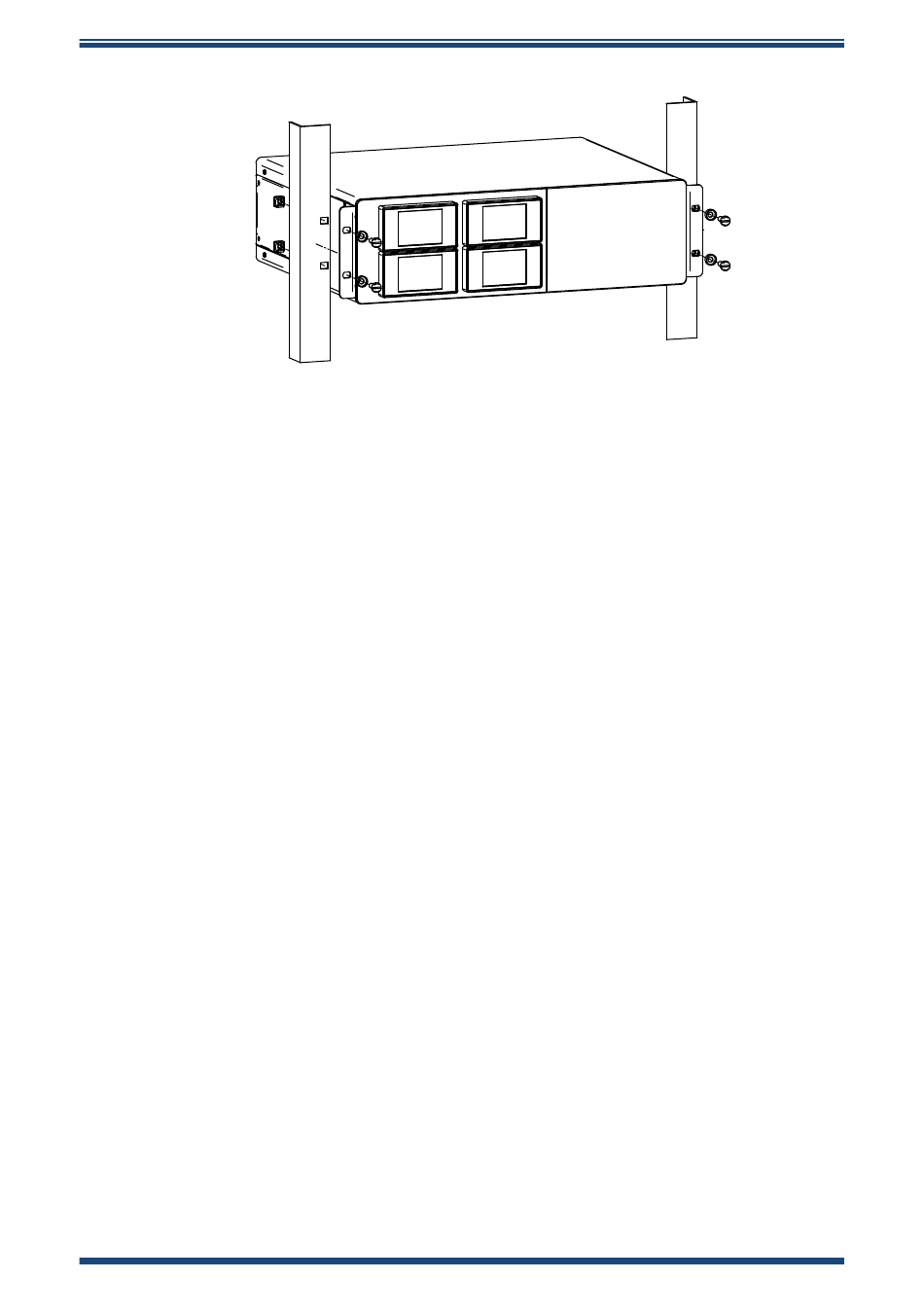

Figure 5 Rack Mounting Method
Liquidew I.S. User Manual
ON/OFF switch to
97092 Issue 6, July 2022
ON .
