Control Unit Wiring

The electrical connections are located at the rear panel of the control unit. There are
spaces for four individual channels.
Michell Instruments
HAZARDOUS AREA INFORMATION:
The only connections on the control unit which can take cables
from hazardous area are the connectors labelled
ALL OTHER CONNECTORS MUST NOT BE CONNECTED TO
CABLES FROM HAZARDOUS AREA
NOTE: Make sure channels are connected correctly.
Connections for each channel are identical.
The following text will only refer to one channel.

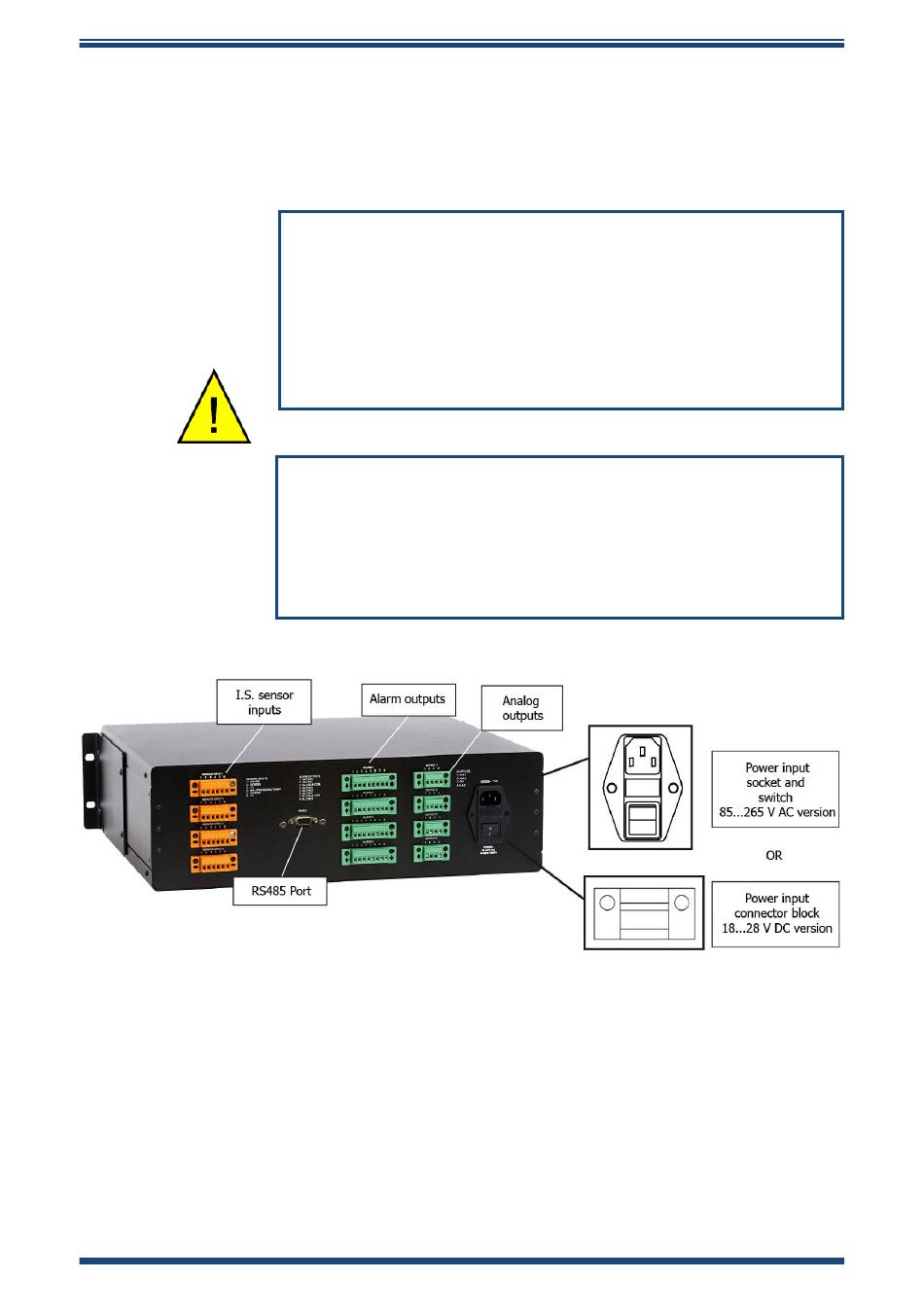

Figure 8 Control Unit Electrical Connections
I.S. SENSOR INPUTS .
INSTALLATION
