INSTALLATION

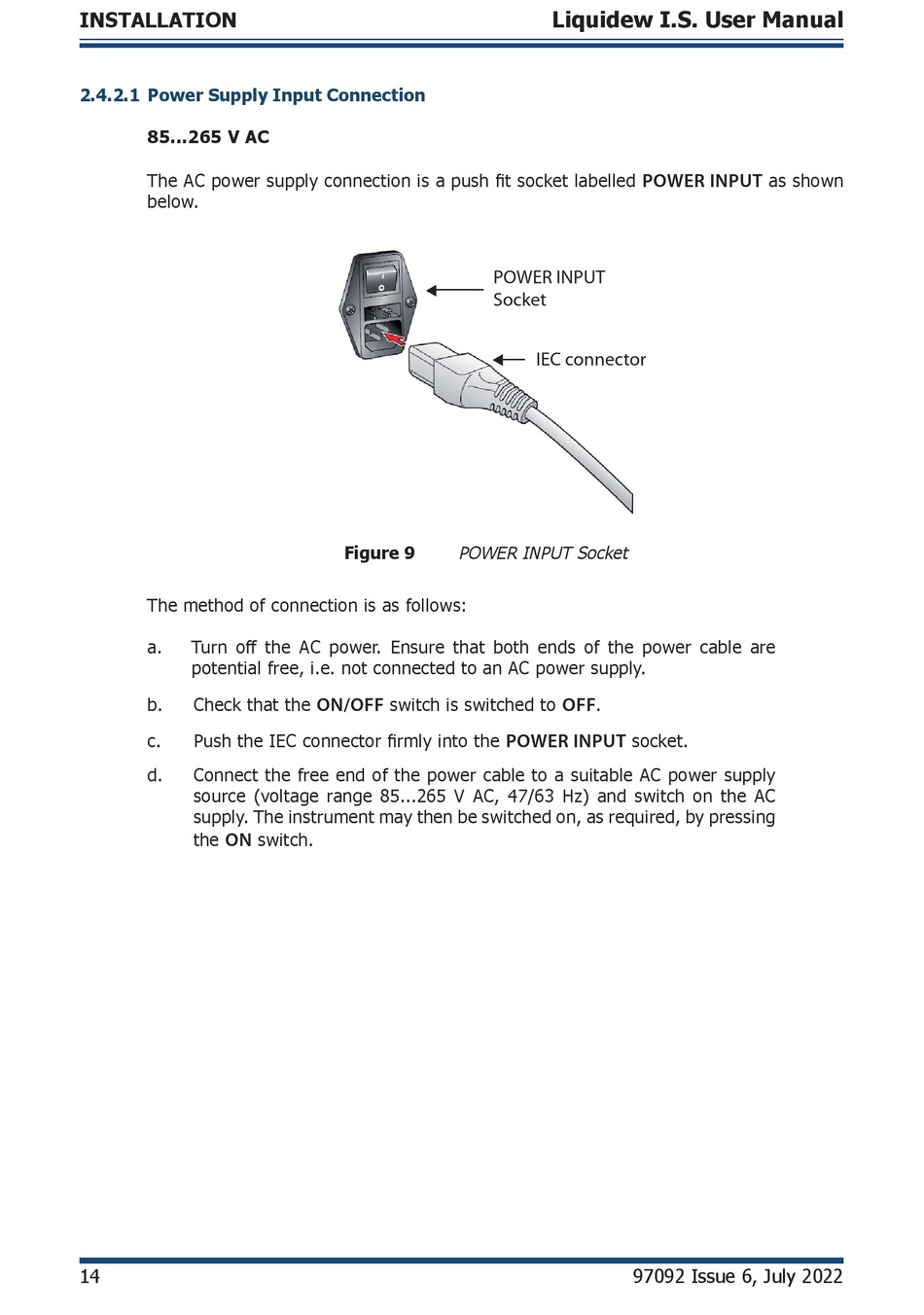

2.4.2.1 Power Supply Input Connection

85...265 V AC
The AC power supply connection is a push fit socket labelled
below.
The method of connection is as follows:
a. Turn off the AC power. Ensure that both ends of the power cable are
potential free, i.e. not connected to an AC power supply.
b. Check that the
c. Push the IEC connector firmly into the
d. Connect the free end of the power cable to a suitable AC power supply
source (voltage range 85...265 V AC, 47/63 Hz) and switch on the AC
supply. The instrument may then be switched on, as required, by pressing
ON
the
14

Figure 9
ON/OFF switch is switched to
switch.
Liquidew I.S. User Manual
POWER INPUT
Socket
IEC connector

POWER INPUT Socket
OFF .
POWER INPUT
socket.
POWER INPUT
as shown
97092 Issue 6, July 2022
