Liquidew I.S. User Manual

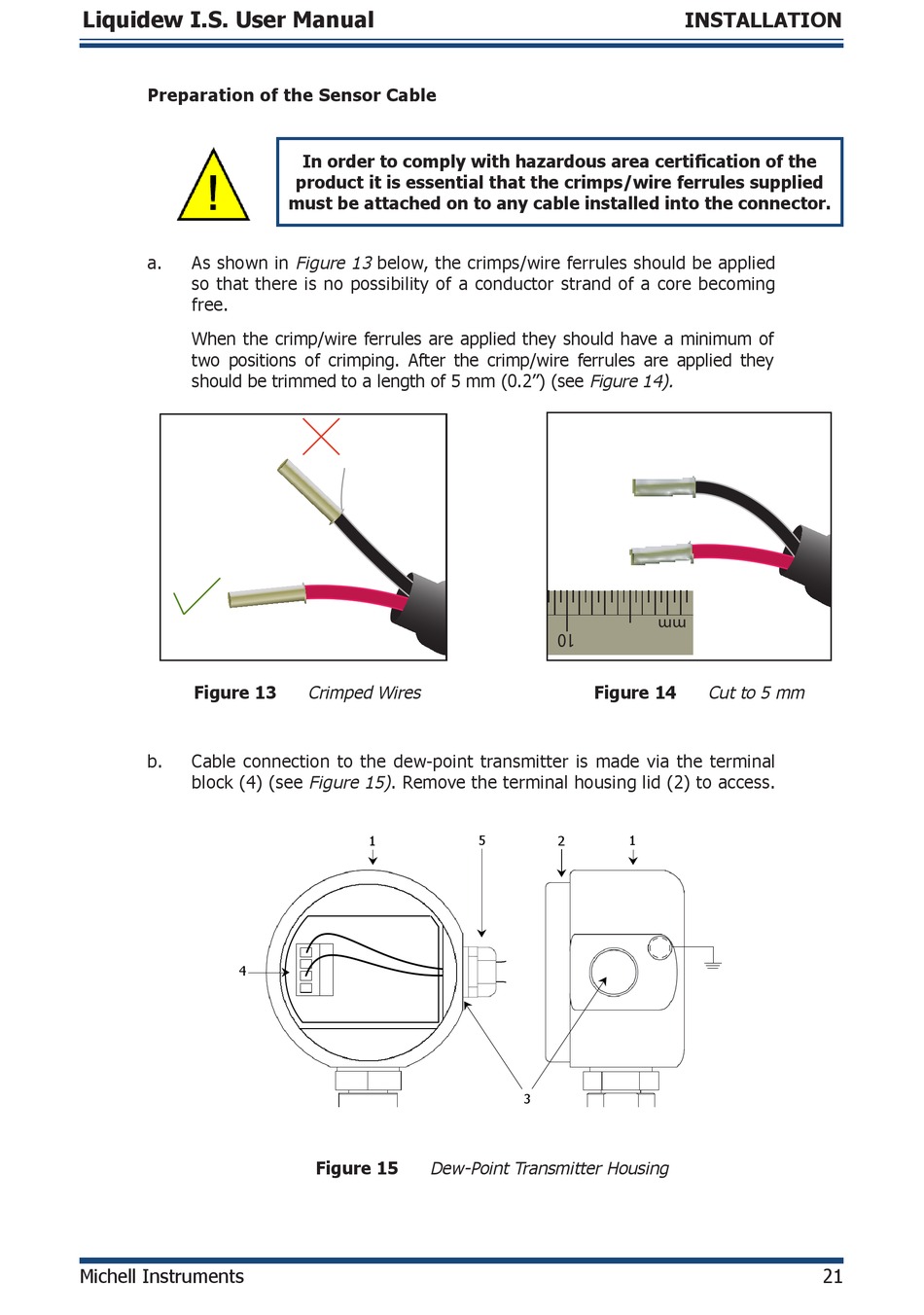

Preparation of the Sensor Cable
As shown in Figure 13 below, the crimps/wire ferrules should be applied
a.
so that there is no possibility of a conductor strand of a core becoming
free.
When the crimp/wire ferrules are applied they should have a minimum of
two positions of crimping. After the crimp/wire ferrules are applied they
should be trimmed to a length of 5 mm (0.2") (see Figure 14).
Figure 13
b. Cable connection to the dew-point transmitter is made via the terminal
block (4) (see Figure 15) . Remove the terminal housing lid (2) to access.
4
Michell Instruments
In order to comply with hazardous area certification of the
product it is essential that the crimps/wire ferrules supplied
must be attached on to any cable installed into the connector.
Crimped Wires
1

Figure 15 Dew-Point Transmitter Housing
Figure 14
5 2 1



3
INSTALLATION
Cut to 5 mm
21
