TECHNICAL DATA

4.1

Electromagnetic compatibility (EMC)

The board has been subjected to EMC tests in an accredited laboratory. The
board complies with the limit values set by the norms IEC61326 as follows:
ESD (Discharge by contact/air) ................. 4/8 kV
Fields .......................................................... 10 V/m
Burst ........................................................... 4 kV
Conducted radio interferences ................... 10 V
4.2

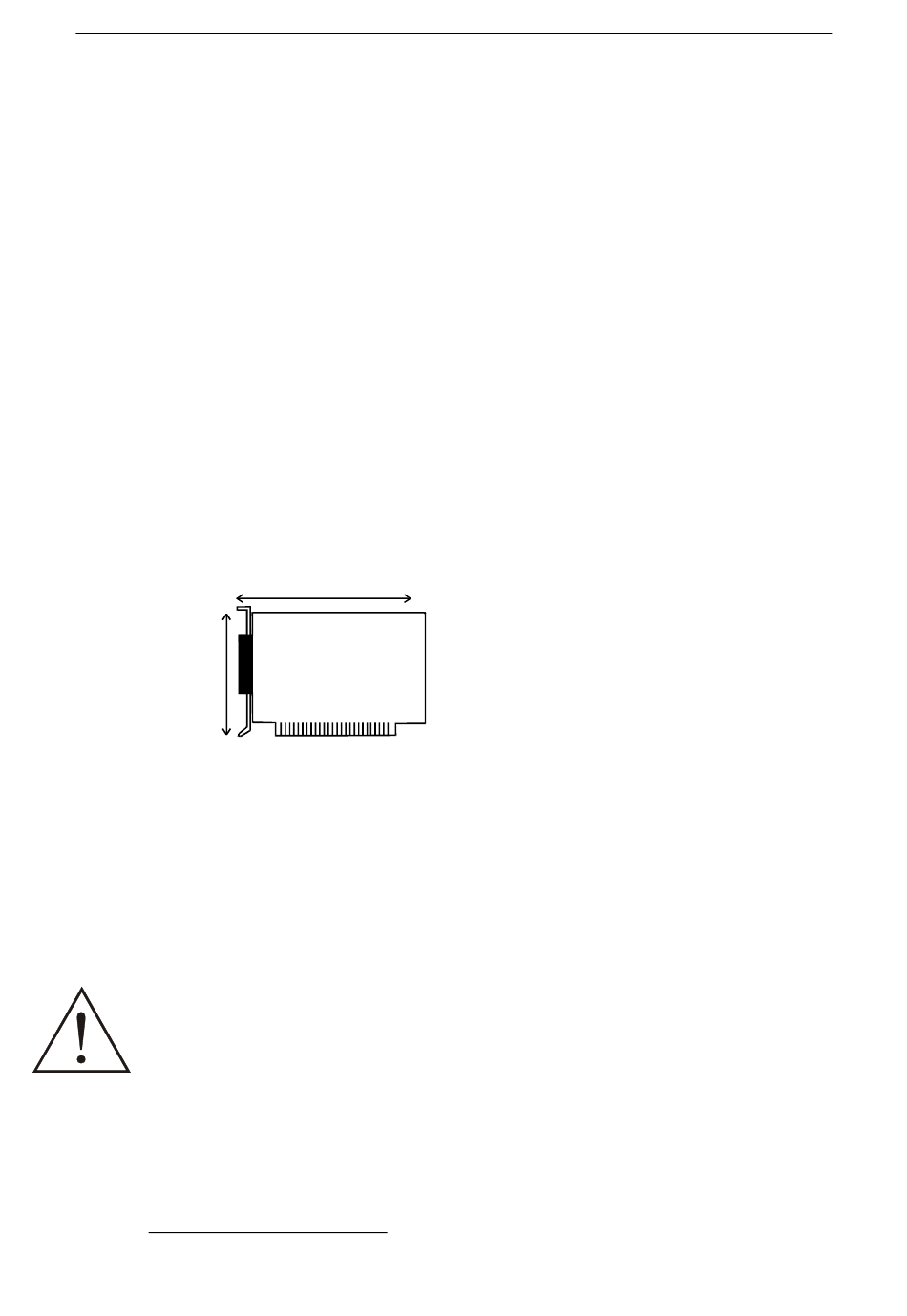

Physical set-up of the board

The board is assembled on a 4-layer printed circuit card.
Dimensions:
99 mm
Weight: ...................................................... approx. 150 g
Installation in: ........................................... 32/64-bit PCI slot, 5 V
Connection to the peripheral: .................... 50-pin SUB-D male connector
1
Accessories
WARNING!
The supply lines must be installed safely against mechanical
loads.
Not included in the standard delivery.
1
179 mm
:..............................................Standard cable ST370-16
True value
Screw terminal panel PX8000
Technical data
Set value
4/8 kV
10 V/m
2 kV
10 V
