APCI-1710 Software

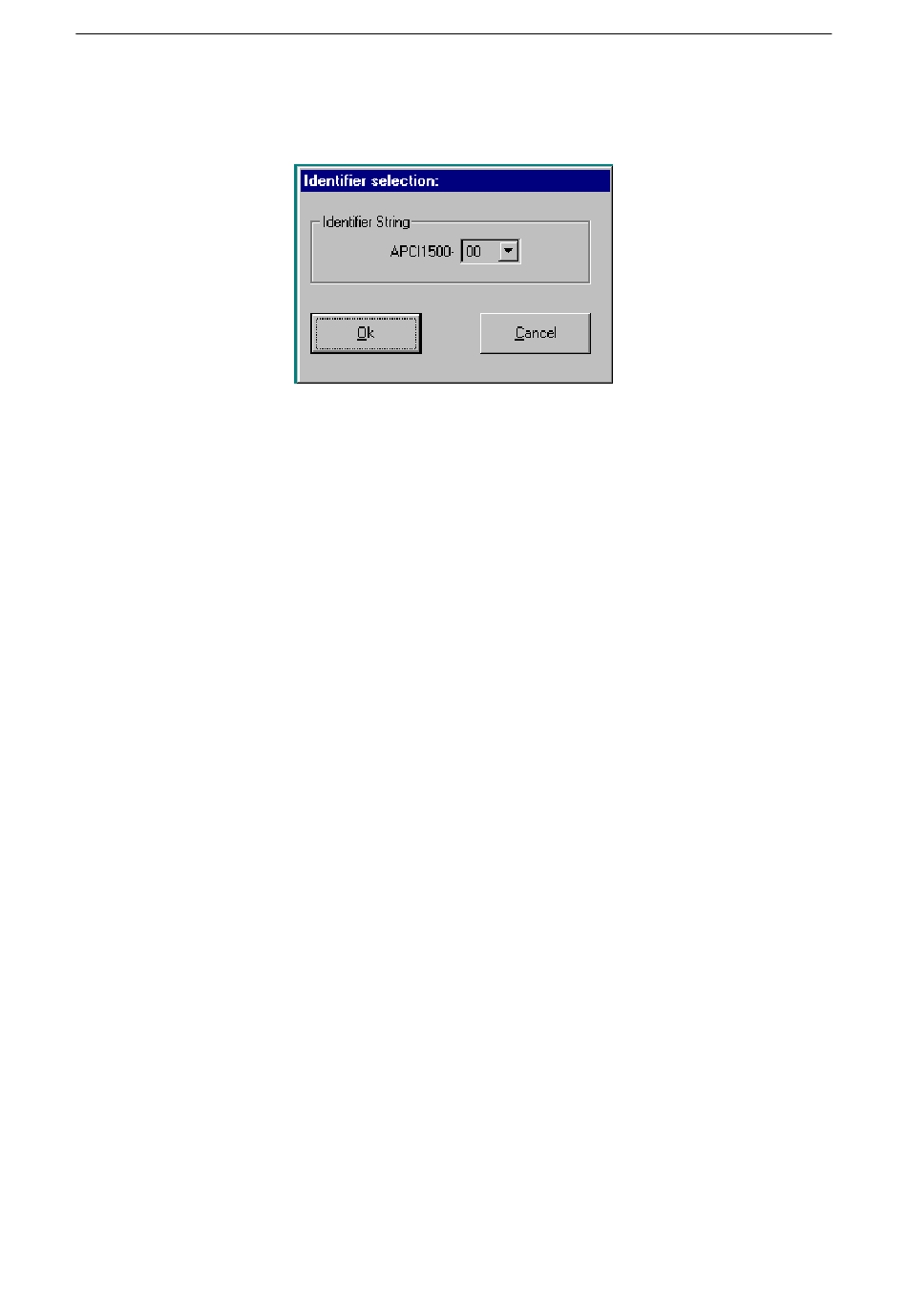

Fig. 7-3: PCI boards

With this option you can select the identifier for the string by specifying the
number and confirming with "OK".
With clicking on "Cancel" you choose the old string.
ADDIDriver Board Manager:
Under Edit/ADDIDriver Board Manager you can check or modify the
current settings of the board set through the ADDEVICE Manager.
ADDevice Manager starts and displays a list of all resources available of the
virtual board. As the APCI-1710 is not programmed with ADDIPACK, this
button is deactivated.
Save:
Saves the parameter and registrates the board.
Default:
Reactivation of the parameter and registration that were saved at last.
Test registration:
Checks if there is a conflict between the board and other devices. A message
indicates the parameter that has generated the conflict. If there is no conflict,
"OK" is displayed.
Deinstall registration:
Deinstalls all registrations of all boards listed in the table.
Print registration:
Prints the registration parameter on your standard printer.
Quit:
Quits the ADDIREG program
29
