APCI-1710

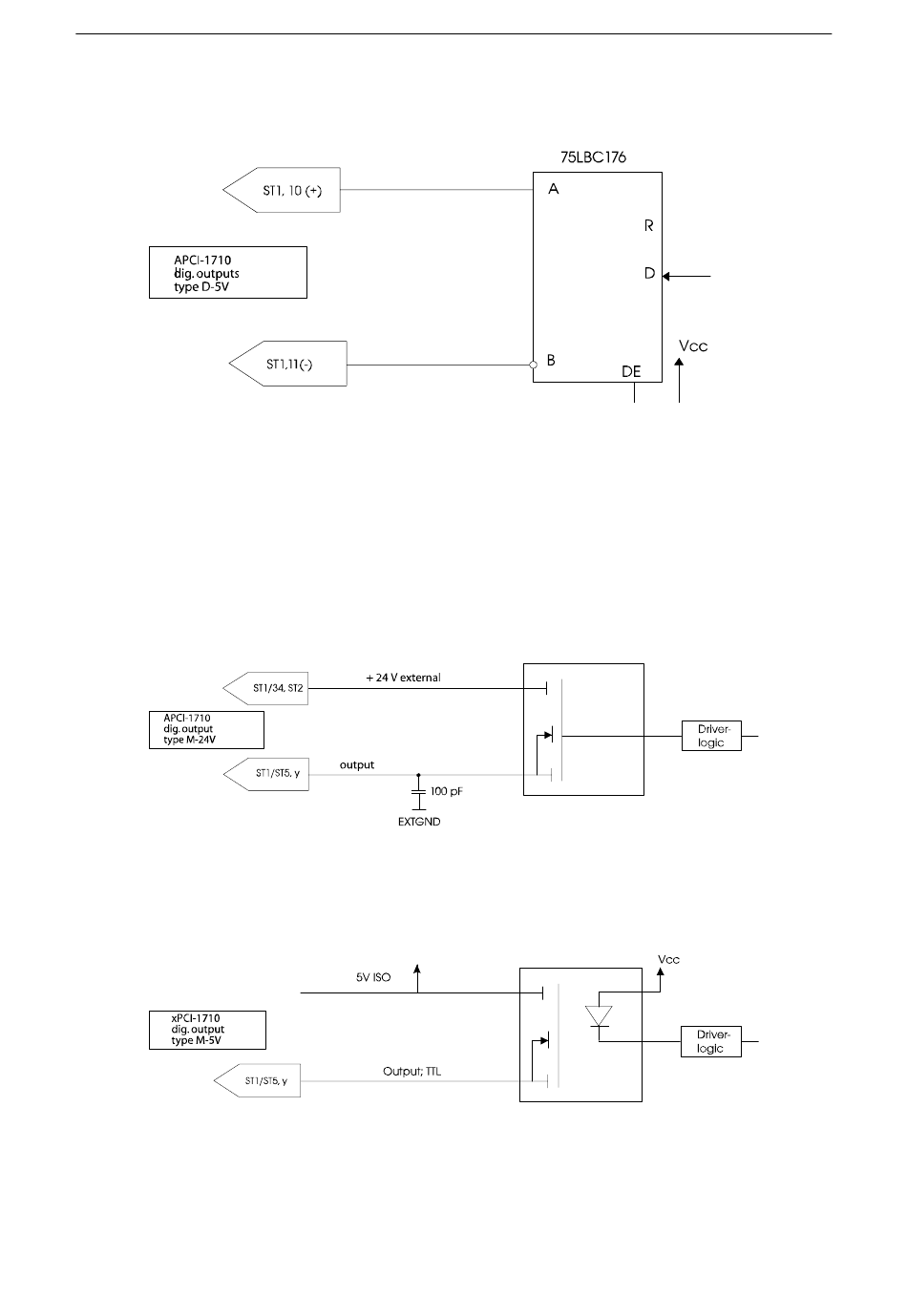

Fig. 9-8: Basic circuit of the digital outputs 5 V – differential
Mass-related outputs
Max. one mass-related output (H) is available for one function module. The
levels in the standard delivery correspond with the 24 V standard.
(IEC1131-2 / High-Side driver).
Fig. 9-9: Basic circuit of the digital output H – 24 V
The 24 V can be fed either through the connector ST1 (jumper in position
A) or separately through the terminal ST2.
The output can also be delivered on request as opto-coupler output
(TTL compatible).
Fig. 9-10: Basic circuit of a digital output H – 5 V (OPTION)
Functions of the board
51
