TECHNICAL DATA

4.1

Electromagnetic compatibility (EMC)

The PC is to comply with the norm IEC61326 for measurement, control and
laboratory use and with the specifications for EMC protection.
The board has been subjected to EMC tests in an accredited laboratory. The board
complies with the limit values set by the norms IEC61326 as follows:
ESD (Discharge by contact/air) ................. 4/8 kV
Fields .......................................................... 10 V/m
Burst ........................................................... 4 kV
Conducted radio interferences ................... 10 V
4.2

Physical set-up of the board

The board is assembled on a 4-layer printed circuit card.

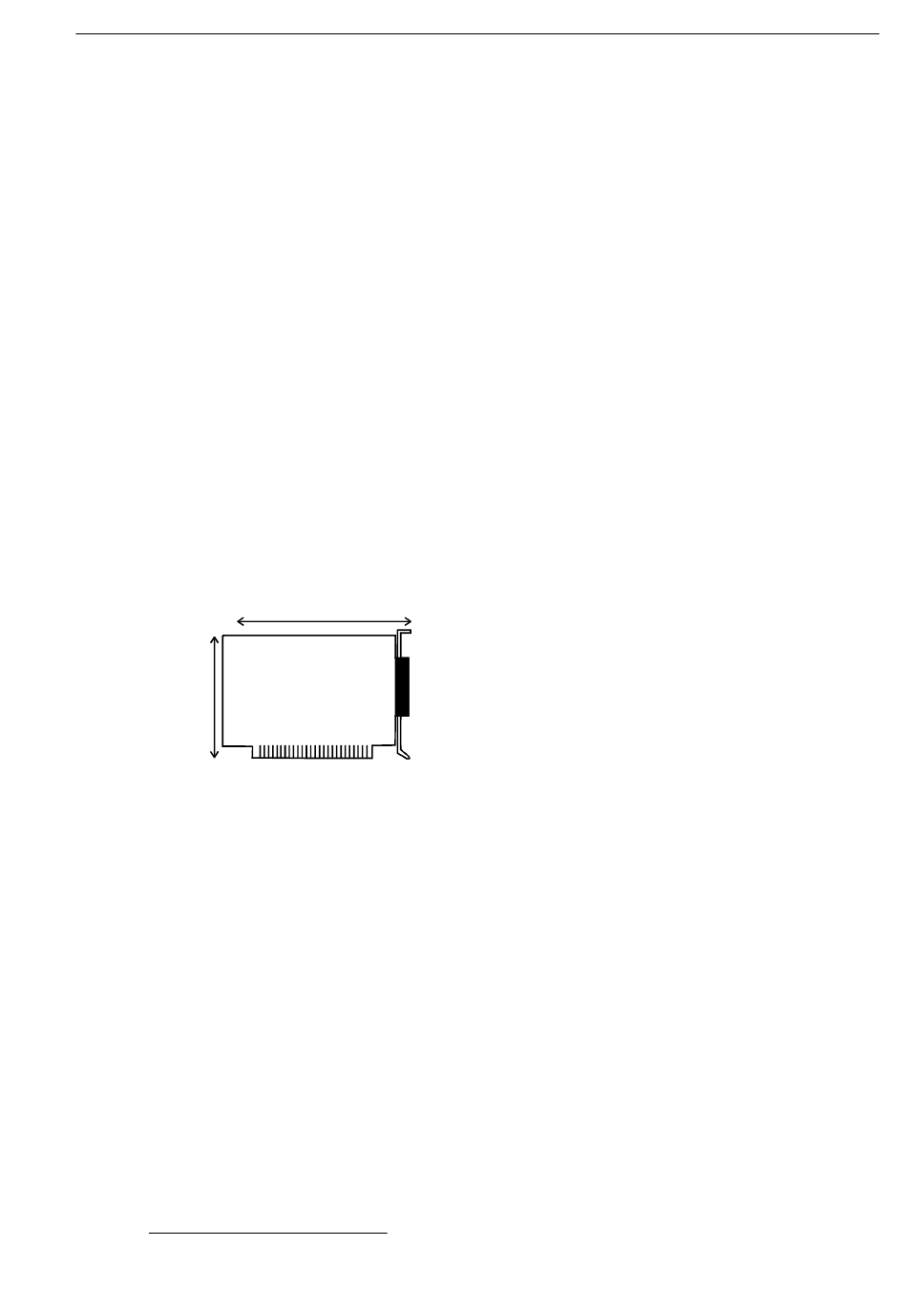

Dimensions:
99 mm
Installation in: ........................................... XT/AT slot
Connection to the peripheral: .................... 37-pin SUB-D male connector
Accessories
1
Standard cable: .......................................... ST010
Screw terminal board: ............................... PX 901
Relay output board: ................................... PX 8500
Not included in the standard delivery.
1
230 mm
:
True value
Technical data
Set value
4/8 kV
10 V/m
2 kV
10 V
