Technical data
APCI-170-24 V
24 V inputs (channels A to G). This board version is especially designed
for 24 V – encoders designed. On the inputs only 24 V signals can be
connected.
Nominal voltage:........................................24 VDC/11 mA
Max. input frequency:
Logic input level: .......................................U

4.4.2 Outputs

Differential outputs, 5 V
Fulfil the EIA standard RS485
Nominal voltage:........................................5 VDC
Max. output frequency: ..............................5 MHz
Max. number of outputs: ............................8 (if not used as

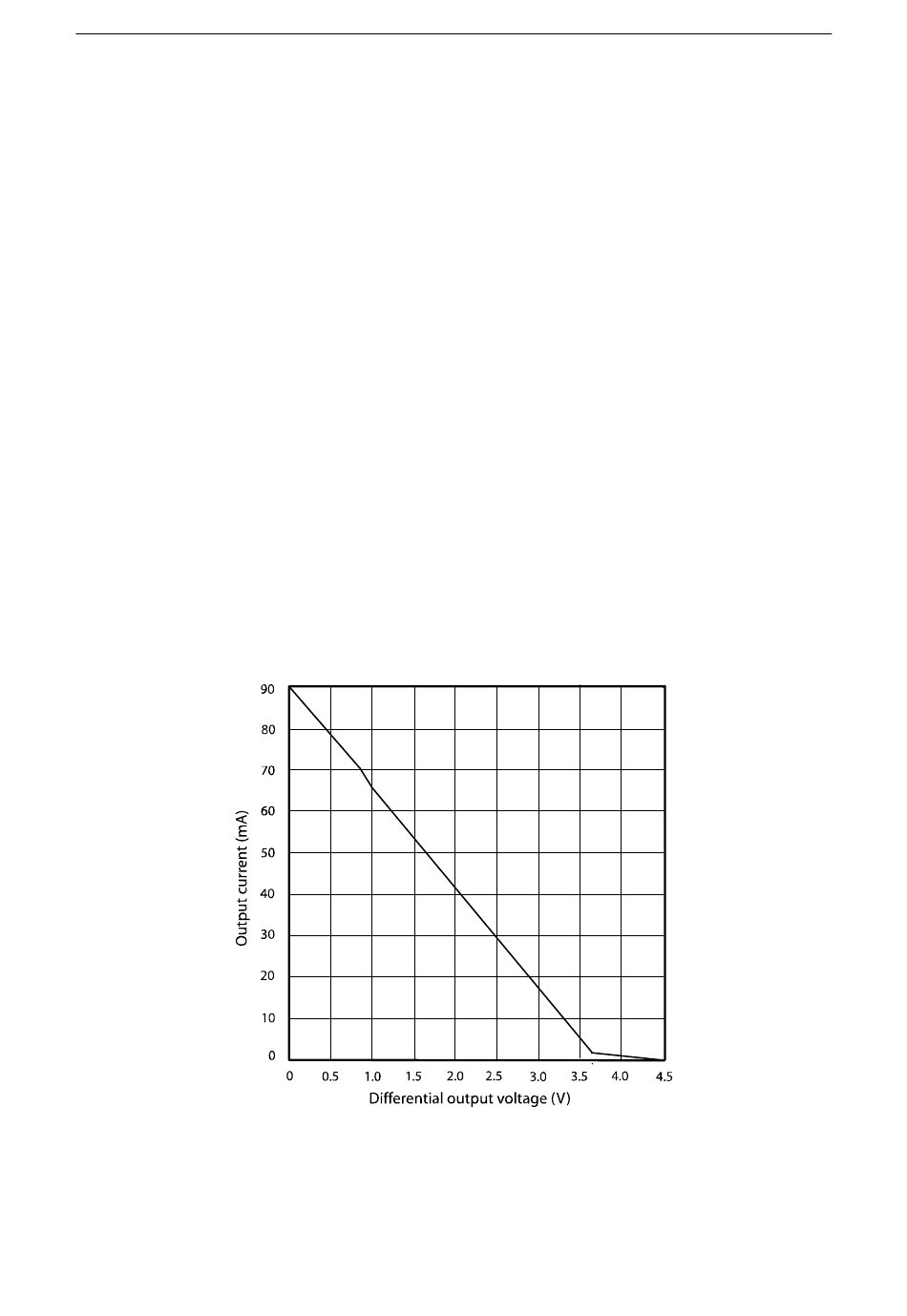

Fig. 4-1: Output current versus differential output voltage

16
1 MHz (at nominal voltage)
with input filter
max.:
30 V
H
U
min.:
19 V
H
U
max.:
15 V
L
U
min.:
0 V
L
differential inputs)
