Front Panel Indicators

The faceplate of the AMC-7000 module has 2 LED indicators. The
figure and table below describe their functions.
ACT

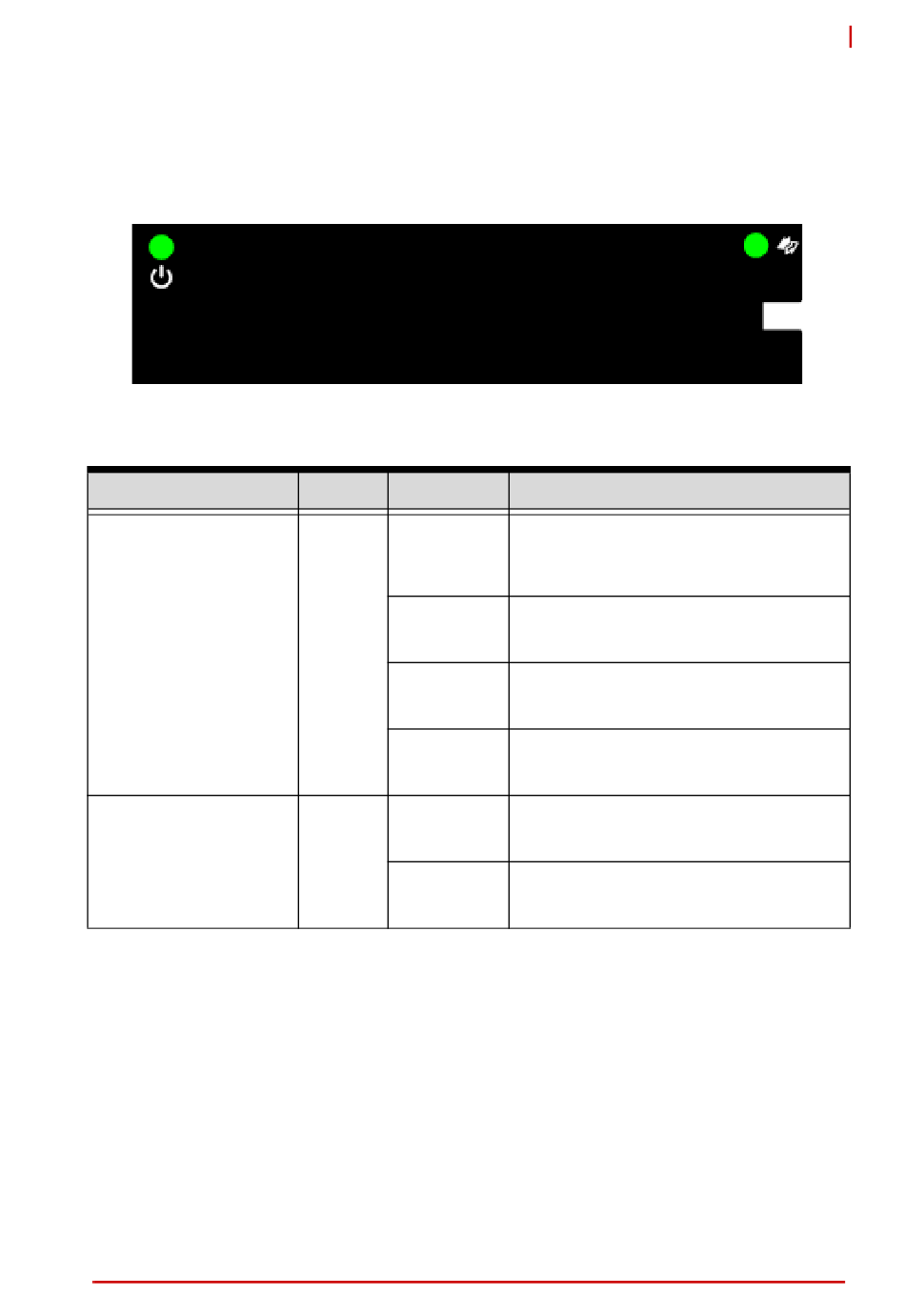

Figure 6-1: AMC-7000 Front Panel Indicators

Indicator
Hot Swap (HS)
Module Active (ACT)
and "in service"
Front Panel Indicators
Color State
On
Off
Blue
Long Blink Delay before module is activated
Short Blink Delay before module is deactivated
On
Green
Off
Table 6-1: AMC-7000 LED Functions
HS
Function
Management power available to
the module and the module can
safely be extracted
The module is operational and is
unsafe for extraction
12V payload power is being
supplied to board
12V payload power is not detected
