Cable
Link cable recommend use high quality Cat.5e、Cat.6、Cat.6a、Cat.7 UTP / STP or FTP cable. Poor quality
cable or network connection or improper construction will cause unstable connection, video or sound
disruptions, picture noise appears.

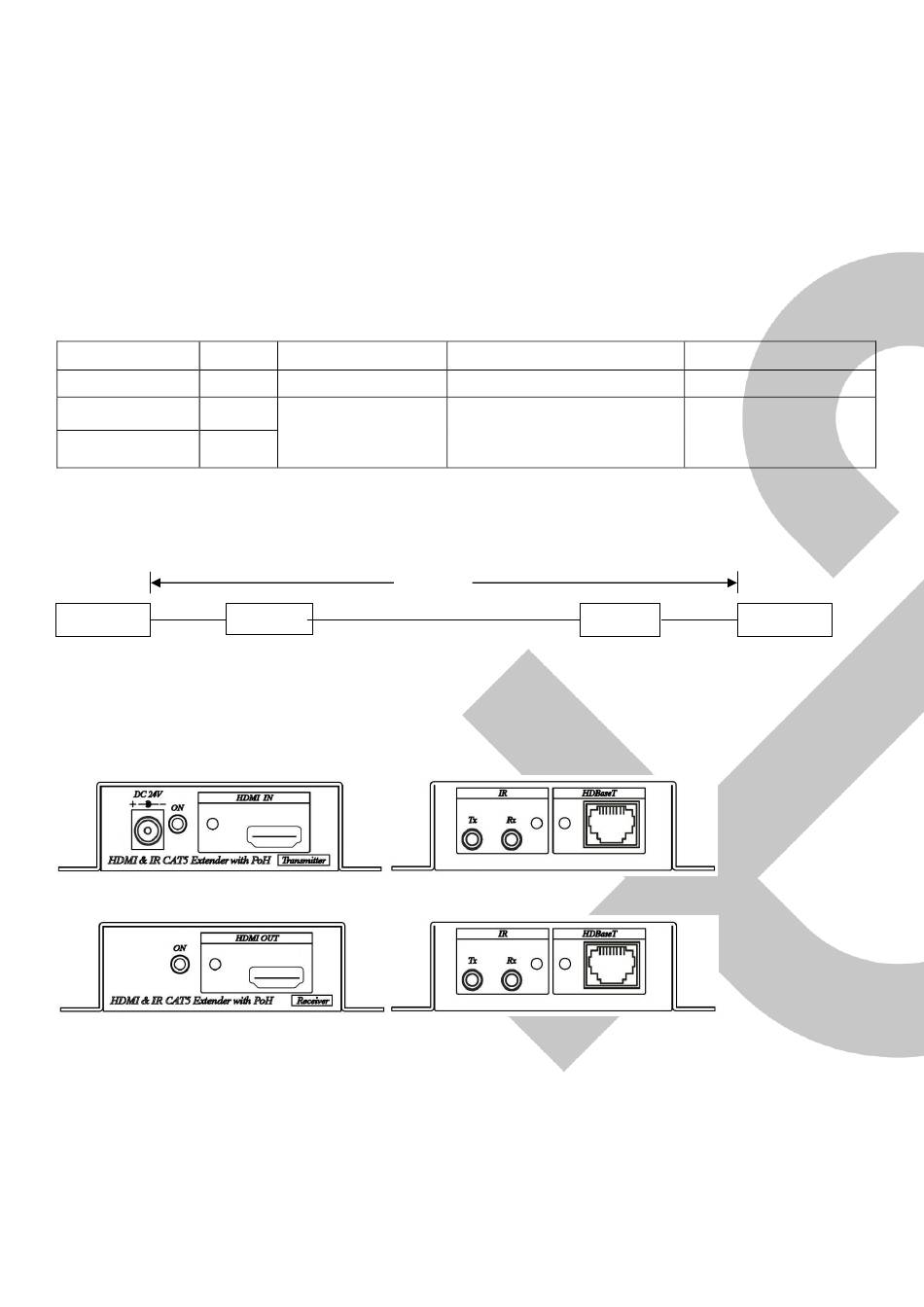

HDBaseT Distance Chart by Different Cable
Cable Type Range
CAT.5e / CAT.6 70 M
CAT.5e / CAT.6 35 M
CAT.6a / CAT.7 40 M
If connection through the wall socket, the cable length must less 5 meters between HDMI extender and
wall jack, as below drawing:
Transmitter
< 5M
Panel View
HE02EIPT
HE02EIPR
Low-power Mode
When there is no HDMI video signal input or TV is not connected or power off, this product will enter a
low-power mode to save power consumption; under a low power mode still provides IR and CEC of
signal transmission.
Pixel Clock Rate
≦ 225MHz
> 225MHz
CAT6 70M
Wall Jack
Video Data Rate
≦ 5.3Gbps(Full HD Video)
> 5.3Gbps(Ultra HD Video)
Wall Jack
User Manual
HE02EIP
Supported Video
1080p 60Hz 36 bit
1080p 60Hz 48 bit
1080p 60Hz 3D
4K x 2K 24Hz
Receiver
< 5M
