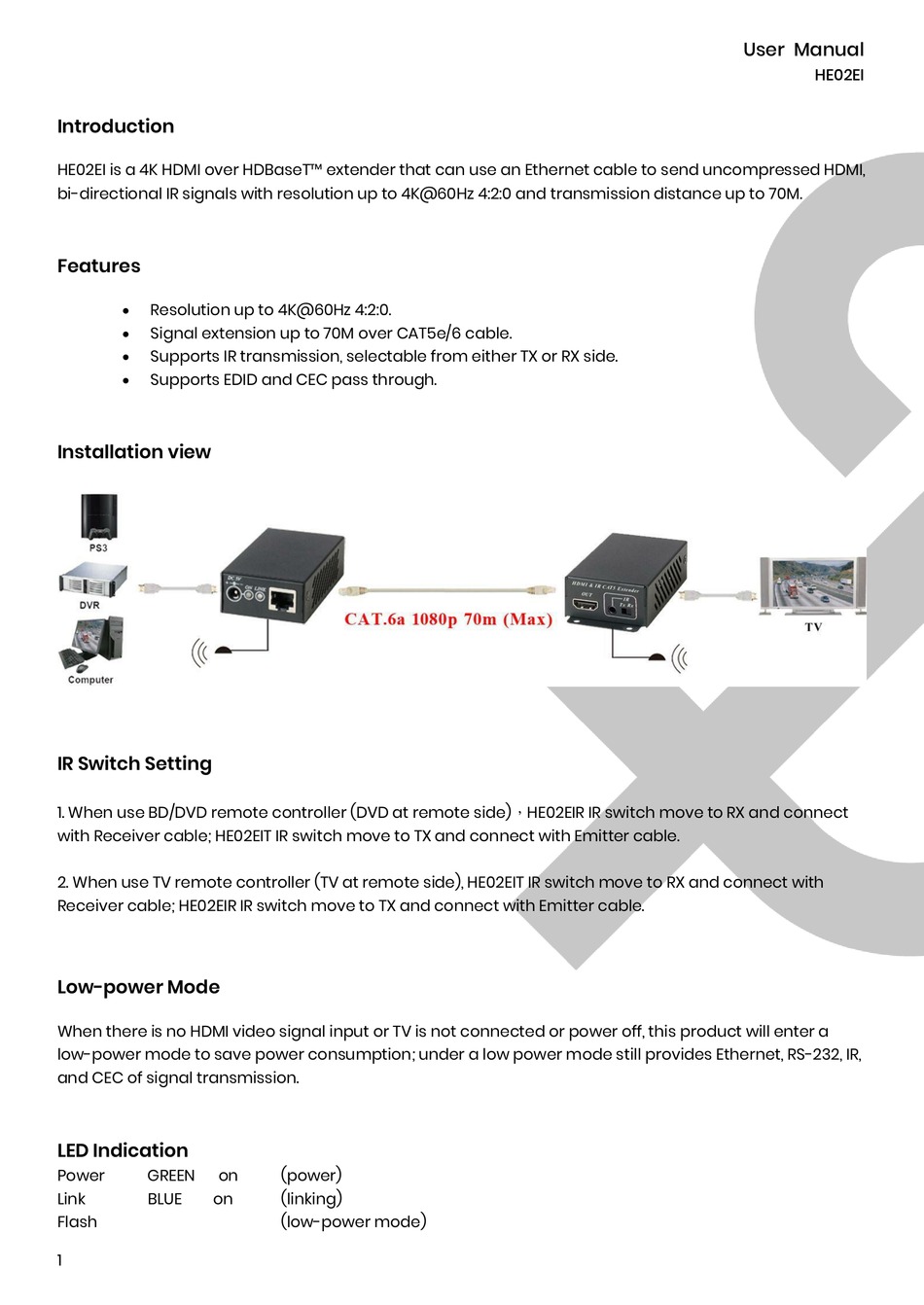

Introduction
HE02EI is a 4K HDMI over HDBaseT™ extender that can use an Ethernet cable to send uncompressed HDMI,
bi-directional IR signals with resolution up to 4K@60Hz 4:2:0 and transmission distance up to 70M.
Features
Resolution up to 4K@60Hz 4:2:0.
Signal extension up to 70M over CAT5e/6 cable.
Supports IR transmission, selectable from either TX or RX side.
Supports EDID and CEC pass through.

Installation view

IR Switch Setting
1. When use BD/DVD remote controller (DVD at remote side),HE02EIR IR switch move to RX and connect
with Receiver cable; HE02EIT IR switch move to TX and connect with Emitter cable.
2. When use TV remote controller (TV at remote side), HE02EIT IR switch move to RX and connect with
Receiver cable; HE02EIR IR switch move to TX and connect with Emitter cable.
Low-power Mode
When there is no HDMI video signal input or TV is not connected or power off, this product will enter a
low-power mode to save power consumption; under a low power mode still provides Ethernet, RS-232, IR,
and CEC of signal transmission.
LED Indication
Power
GREEN
on
Link
BLUE
on
Flash
1
(power)
(linking)
(low-power mode)
User Manual
HE02EI
