2.3

Assembly

Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
NOTICE
L
+ First loosely screw all parts together and check that they fit properly. Tighten the screws
using the tool only when you are instructed to do so.
+ If you have difficulty recognising the graphics, we recommend that you open and/or
download the PDF instructions stored in the webshop on your end device (e.g. smartphone,
tablet or PC). There you have the option of zooming in closer. Please note that the Adobe
Acrobat Reader programme must be installed on your end device in order to open the file.

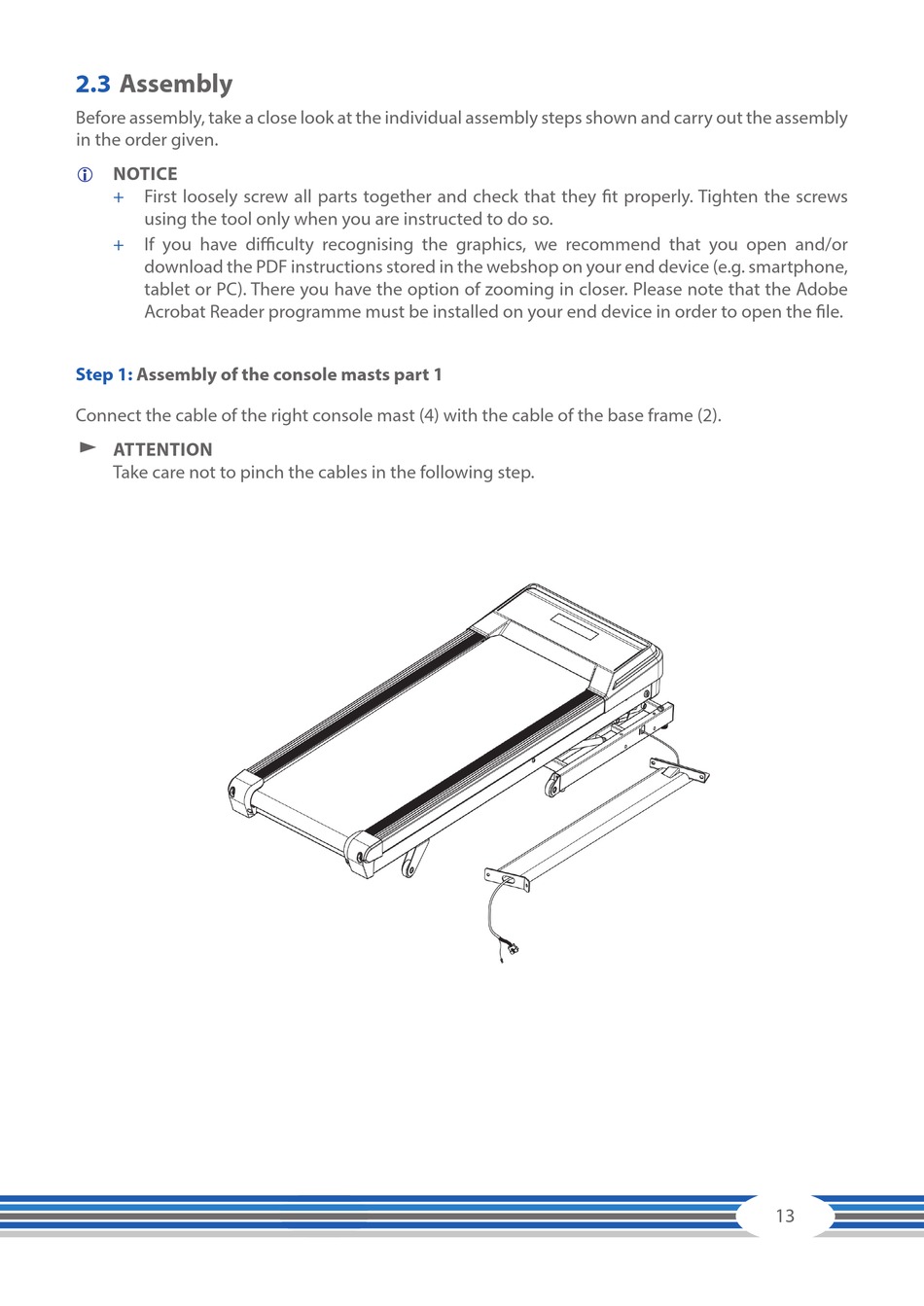

Step 1: Assembly of the console masts part 1
Connect the cable of the right console mast (4) with the cable of the base frame (2).
࣑ ATTENTION
Take care not to pinch the cables in the following step.
