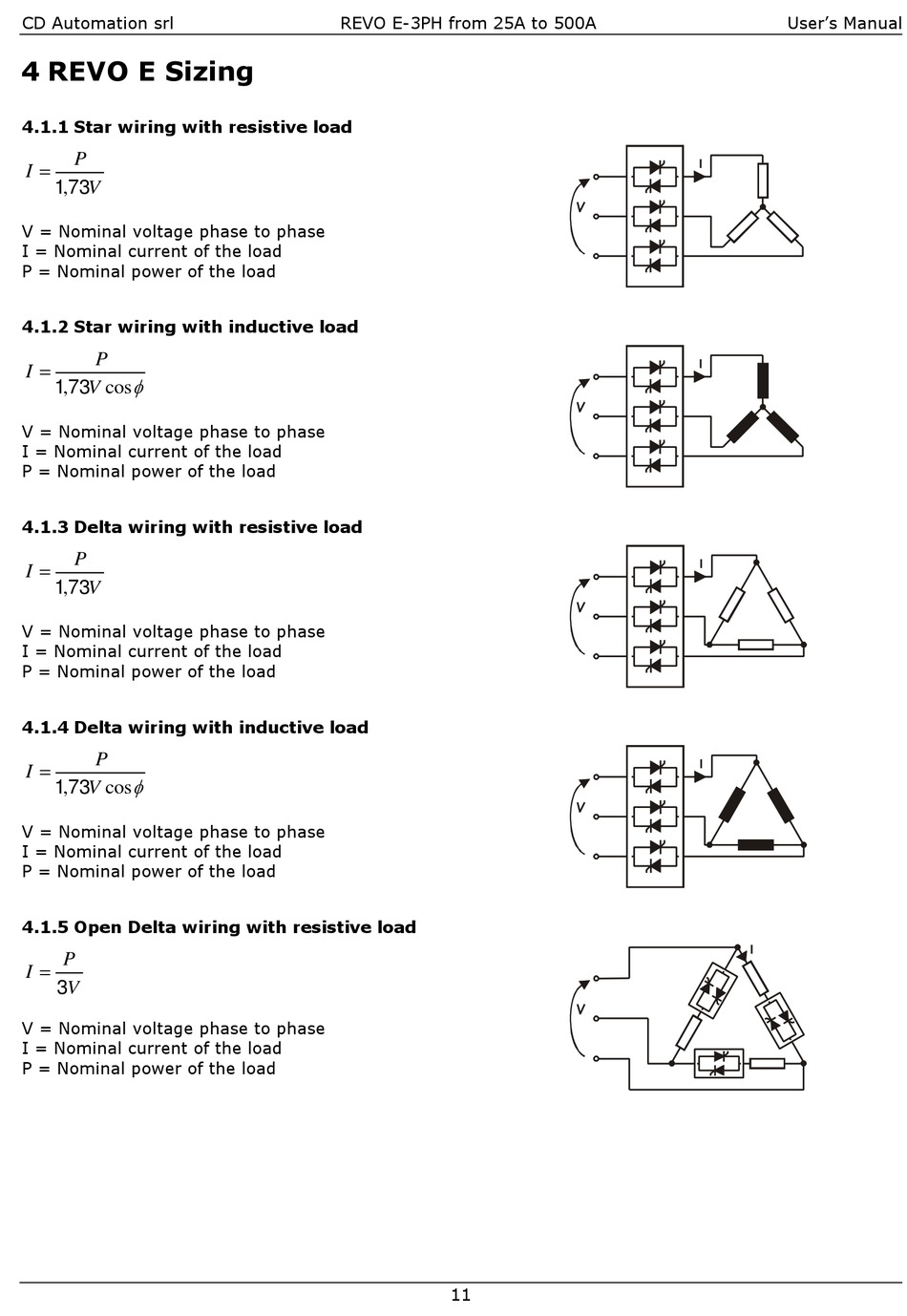

4 REVO E Sizing

4.1.1 Star wiring with resistive load
P

I
1, 73
V
V = Nominal voltage phase to phase
I = Nominal current of the load
P = Nominal power of the load
4.1.2 Star wiring with inductive load
P

I
1 , V 73 cos
V = Nominal voltage phase to phase
I = Nominal current of the load
P = Nominal power of the load
4.1.3 Delta wiring with resistive load
P

I
1, 73
V
V = Nominal voltage phase to phase
I = Nominal current of the load
P = Nominal power of the load
4.1.4 Delta wiring with inductive load
P

I

1 , V 73 cos
V = Nominal voltage phase to phase
I = Nominal current of the load
P = Nominal power of the load
4.1.5 Open Delta wiring with resistive load
P

I
3
V
V = Nominal voltage phase to phase
I = Nominal current of the load
P = Nominal power of the load
