CD Automation srl
6 Installation
Caution: Don't install near the hot elements or near the units that could give
electromagnetic interferences.

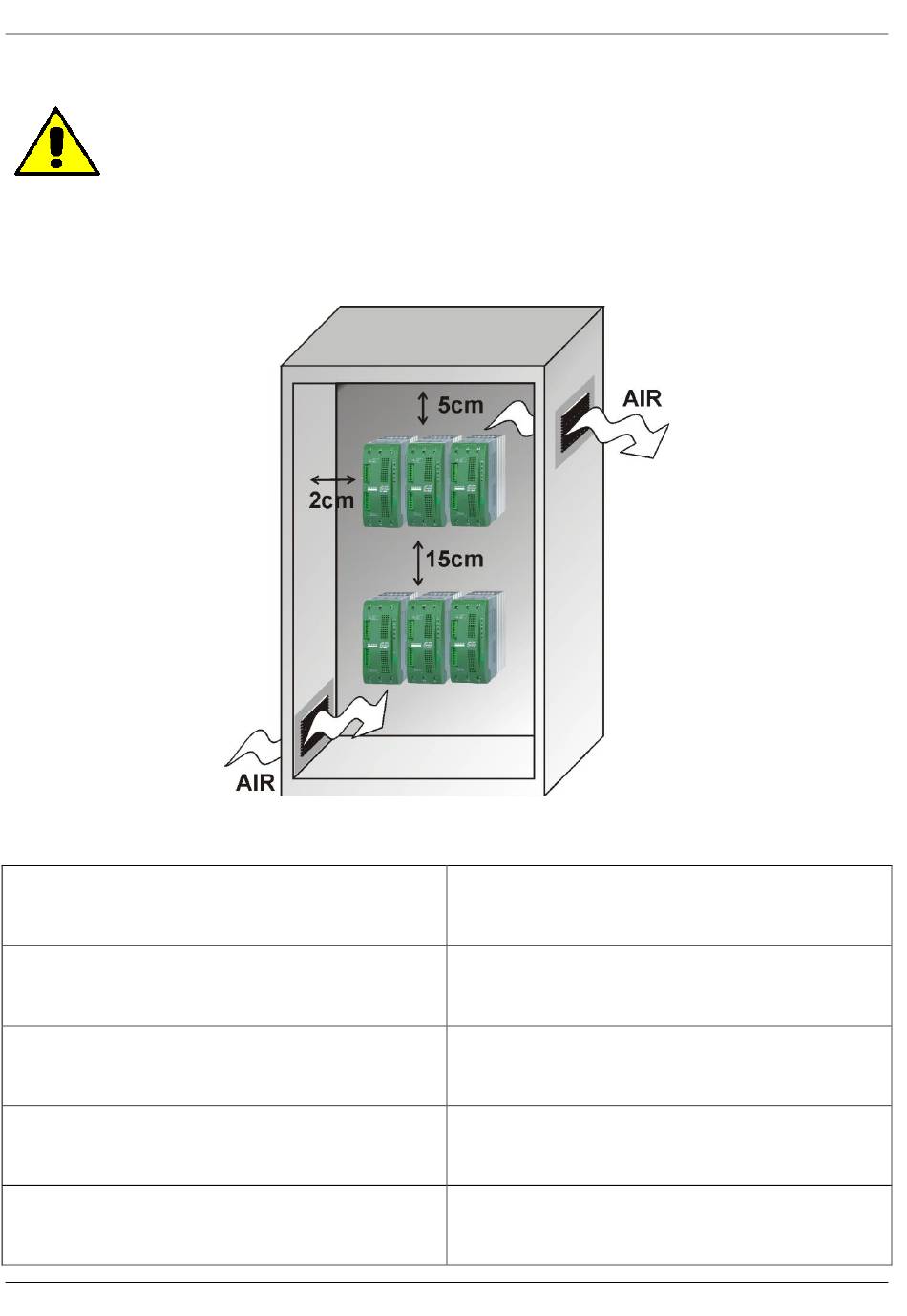

The REVO E Thyristor unit must be always mounted in vertical position to improve air cooling on heat-
sink. Maintain the minimum distances in vertical and in horizontal as represented.
When more unit has mounted inside the cabinet maintain the air circulation like represented in figure.
Sometimes is necessary installing a fan to have better air circulation.
6.1 Environmental installation conditions
Ambient temperature
Storage temperature
Installation place
Altitude
Humidity
REVO E-3PH from 25A to 500A
0-40°C at nominal current. Over 40°C use the
derating curve (see par. 8.1)
-25°C to 70°C
Don't install at direct sun light, where there are
conductive dust, corrosive gas, vibration or water
and also in salty environmental.
Up to 1000 meter over sea level. For higher
altitude reduce the nominal current of 2% for each
100m over 1000m
From 5 to 95% without condense and ice
14
