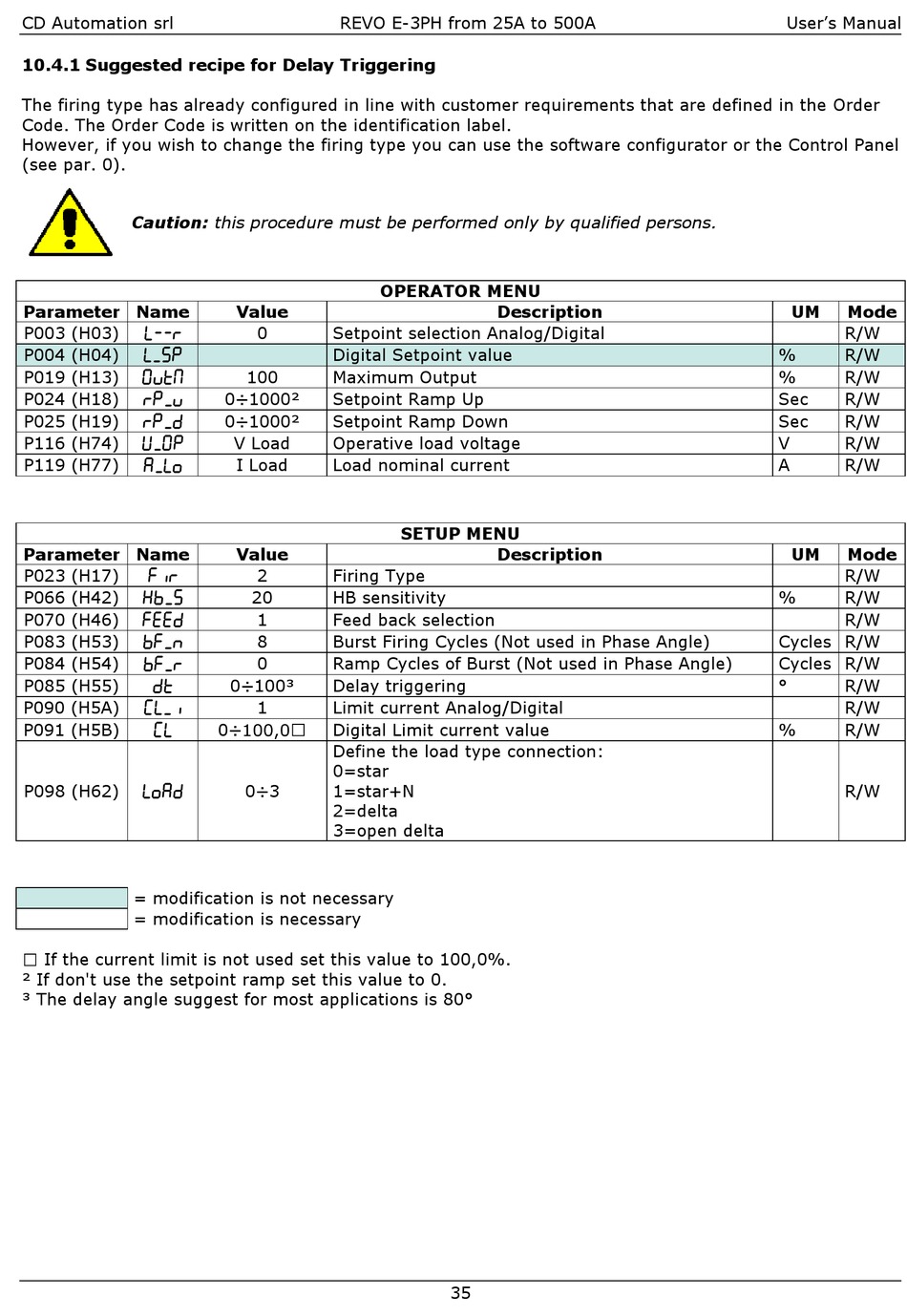

10.4.1 Suggested recipe for Delay Triggering
The firing type has already configured in line with customer requirements that are defined in the Order
Code. The Order Code is written on the identification label.
However, if you wish to change the firing type you can use the software configurator or the Control Panel
(see par. 0).
Caution: this procedure must be performed only by qualified persons.
Parameter Name

P003 (H03)

P004 (H04)

P019 (H13)

P024 (H18)
P025 (H19) 
P116 (H74) 
P119 (H77) 
Parameter Name

P023 (H17)
P066 (H42) 
P070 (H46) 
P083 (H53) 
P084 (H54) 

P085 (H55)

P090 (H5A)

P091 (H5B)

P098 (H62)
= modification is not necessary
= modification is necessary
If the current limit is not used set this value to 100,0%.
² If don't use the setpoint ramp set this value to 0.
³ The delay angle suggest for most applications is 80°
REVO E-3PH from 25A to 500A
OPERATOR MENU
Value
0 Setpoint selection Analog/Digital
Digital Setpoint value
100 Maximum Output
0÷1000² Setpoint Ramp Up
0÷1000² Setpoint Ramp Down
V Load Operative load voltage
I Load Load nominal current
Value
2 Firing Type
20 HB sensitivity
1 Feed back selection
8 Burst Firing Cycles (Not used in Phase Angle)
0 Ramp Cycles of Burst (Not used in Phase Angle)
0÷100³ Delay triggering
1 Limit current Analog/Digital
0÷ Digital Limit current value
Define the load type connection:
0=star
0÷3 1=star+N
2=delta
3=open delta
Description
SETUP MENU
Description
35
User's Manual
UM Mode
R/W
% R/W
% R/W
Sec R/W
Sec R/W
V R/W
A R/W
UM Mode
R/W
% R/W
R/W
Cycles R/W
Cycles R/W
° R/W
R/W
% R/W
R/W
