PANEL DESCRIPTION

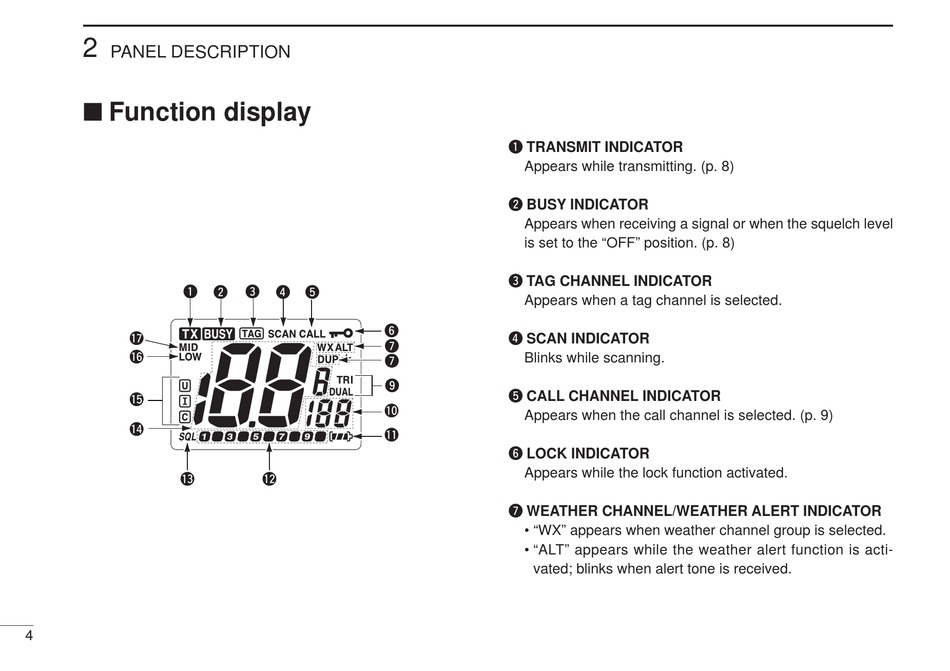

Function display

q
!7
!6
!5
!4
!3
4
w e r t
y
u
u
o
!0
!1
!2
q TRANSMIT INDICATOR
Appears while transmitting. (p. 8)
w BUSY INDICATOR
Appears when receiving a signal or when the squelch level
is set to the "OFF" position. (p. 8)
e TAG CHANNEL INDICATOR
Appears when a tag channel is selected.
r SCAN INDICATOR
Blinks while scanning.
t CALL CHANNEL INDICATOR
Appears when the call channel is selected. (p. 9)
y LOCK INDICATOR
Appears while the lock function activated.
u WEATHER CHANNEL/WEATHER ALERT INDICATOR
• "WX" appears when weather channel group is selected.
• "ALT" appears while the weather alert function is acti-
vated; blinks when alert tone is received.
