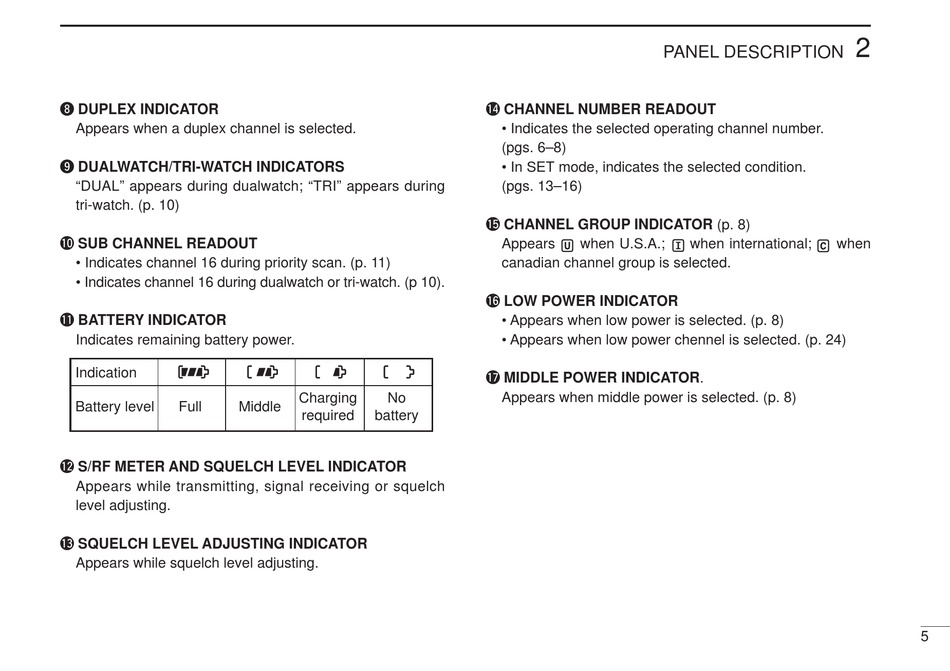

Icom IC-M2A Instruction Manual page 11

i DUPLEX INDICATOR
Appears when a duplex channel is selected.
o DUALWATCH/TRI-WATCH INDICATORS
"DUAL" appears during dualwatch; "TRI" appears during
tri-watch. (p. 10)
!0 SUB CHANNEL READOUT
• Indicates channel 16 during priority scan. (p. 11)
• Indicates channel 16 during dualwatch or tri-watch. (p 10).
!1 BATTERY INDICATOR
Indicates remaining battery power.
Indication
Battery level Full Middle
!2 S/RF METER AND SQUELCH LEVEL INDICATOR
Appears while transmitting, signal receiving or squelch
level adjusting.
!3 SQUELCH LEVEL ADJUSTING INDICATOR
Appears while squelch level adjusting.
Charging No
required battery
PANEL DESCRIPTION
!4 CHANNEL NUMBER READOUT
• Indicates the selected operating channel number.
(pgs. 6–8)
• In SET mode, indicates the selected condition.
(pgs. 13–16)
!5 CHANNEL GROUP INDICATOR (p. 8)
Appears when U.S.A.;
canadian channel group is selected.
!6 LOW POWER INDICATOR
• Appears when low power is selected. (p. 8)
• Appears when low power chennel is selected. (p. 24)
!7 MIDDLE POWER INDICATOR.
Appears when middle power is selected. (p. 8)
2
when international; when
5
