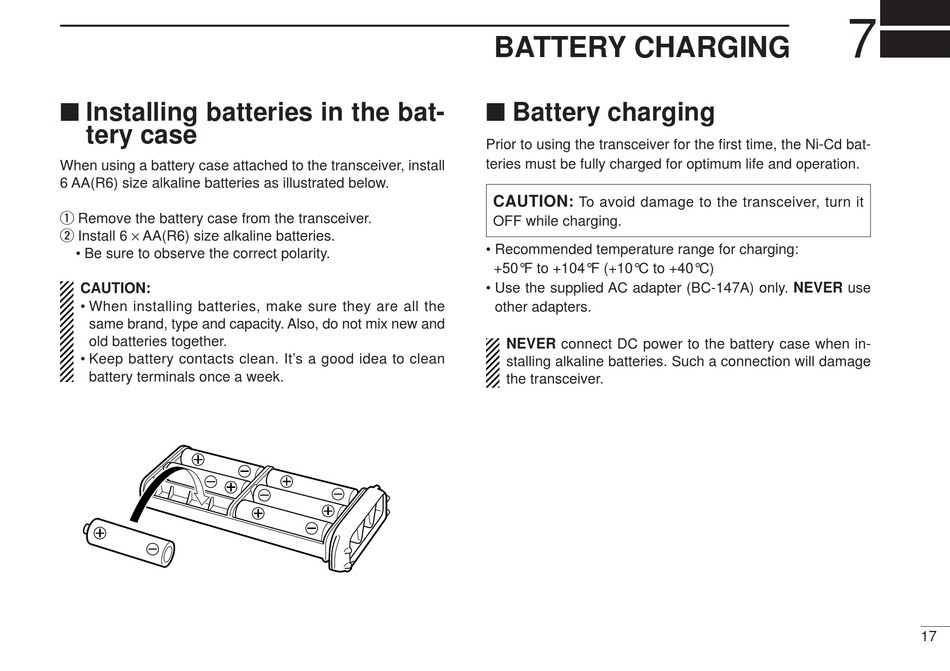

Battery Charging; Installing Batteries In The Battery Case - Icom IC-M2A Instruction Manual

Installing batteries in the bat-
tery case
When using a battery case attached to the transceiver, install
6 AA(R6) size alkaline batteries as illustrated below.
q Remove the battery case from the transceiver.
w Install 6 × AA(R6) size alkaline batteries.
• Be sure to observe the correct polarity.
CAUTION:
• When installing batteries, make sure they are all the
same brand, type and capacity. Also, do not mix new and
old batteries together.
• Keep battery contacts clean. It's a good idea to clean
battery terminals once a week.

BATTERY CHARGING

Battery charging
Prior to using the transceiver for the first time, the Ni-Cd bat-
teries must be fully charged for optimum life and operation.
CAUTION:
To avoid damage to the transceiver, turn it
OFF while charging.
• Recommended temperature range for charging:
+50°F to +104°F (+10°C to +40°C)
• Use the supplied AC adapter (BC-147A) only. NEVER use
other adapters.
NEVER connect DC power to the battery case when in-
stalling alkaline batteries. Such a connection will damage
the transceiver.
7
17
